Full Body Views

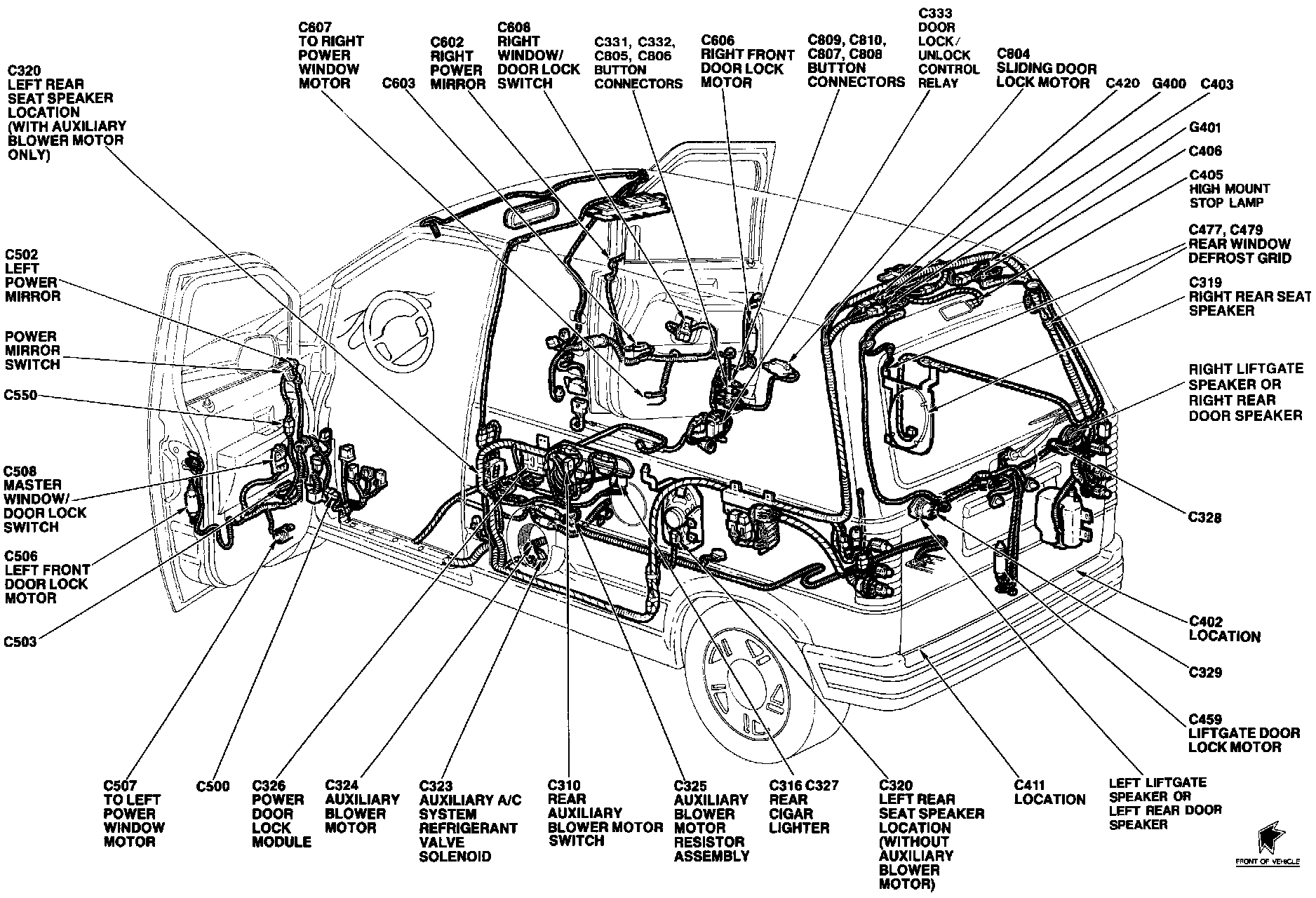

Full Body View:

AUXILIARY A/C SYSTEM REFRIGERANT VALVE SOLENOID
AUXILIARY BLOWER MOTOR
AUXILIARY BLOWER MOTOR RESISTOR ASSEMBLY
BUTTON CONNECTORS
DOOR LOCK/UNLOCK CONTROL RELAY
HIGH MOUNT STOP LAMP
LEFT FRONT DOOR LOCK MOTOR
LEFT LIFTGATE SPEAKER
LEFT POWER MIRROR
LEFT POWER WINDOW MOTOR
LEFT REAR DOOR SPEAKER
LEFT REAR SEAT SPEAKER
LIFTGATE DOOR LOCK MOTOR
MASTER WINDOW/DOOR LOCK SWITCH
POWER DOOR LOCK MODULE
POWER MIRROR SWITCH
REAR AUXILIARY BLOWER MOTOR SWITCH
REAR CIGAR LIGHTER
REAR WINDOW DEFROST GRID
RIGHT POWER MIRROR
RIGHT FRONT DOOR LOCK MOTOR
RIGHT LIFTGATE SPEAKER
RIGHT POWER WINDOW MOTOR
RIGHT REAR DOOR SPEAKER
RIGHT REAR SEAT SPEAKER
RIGHT WINDOW/DOOR LOCK SWITCH
SLIDING DOOR LOCK MOTOR

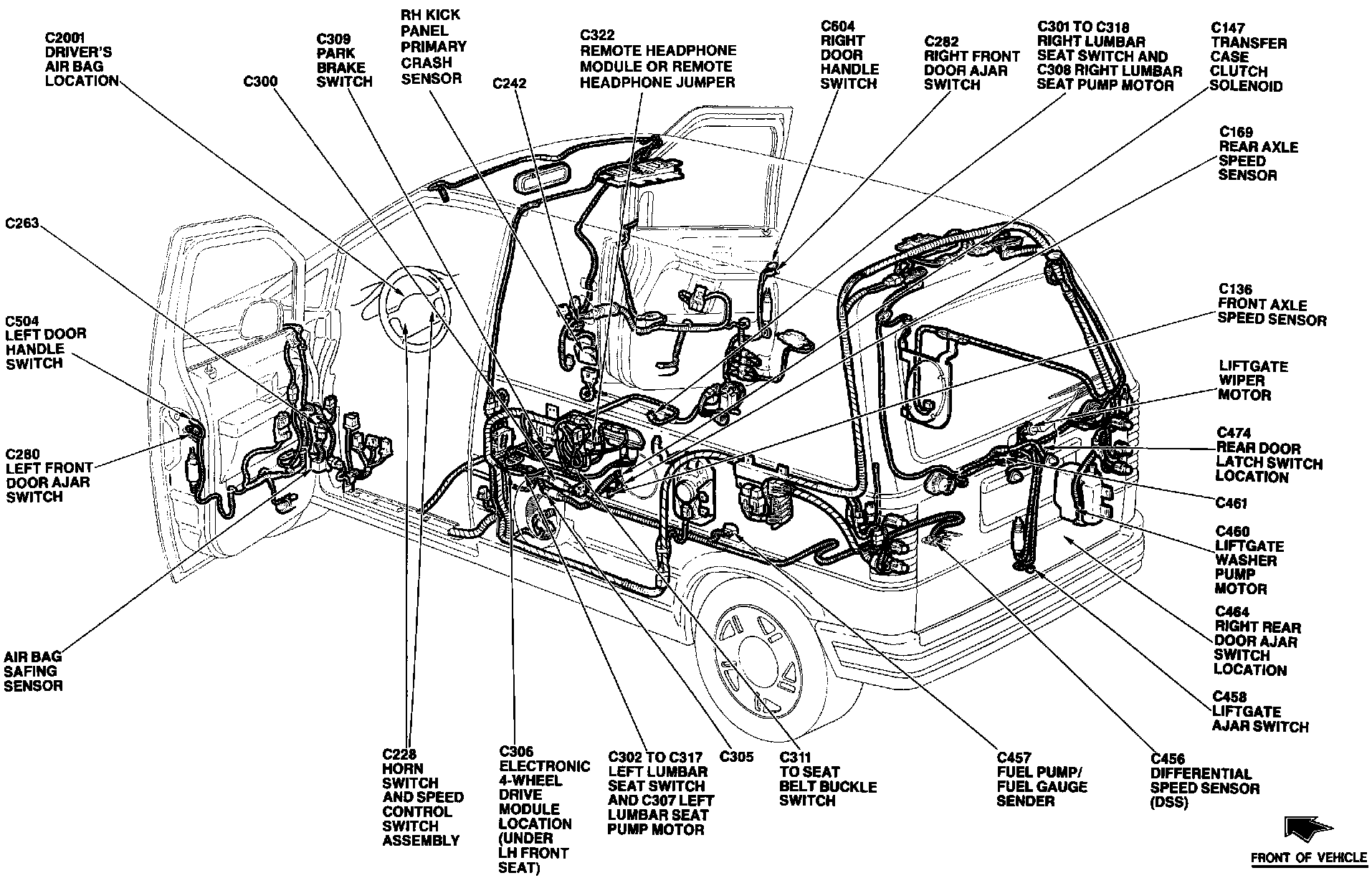

Full Body View:

AIR BAG SAFING SENSOR
DIFFERENTIAL SPEED SENSOR
DRIVER'S AIR BAG
FUEL PUMP/FUEL GAUGE SENDER
HORN SWITCH
LEFT DOOR HANDLE SWITCH
LEFT FRONT DOOR AJAR SWITCH
LEFT LUMBAR SEAT PUMP MOTOR
LEFT LUMBAR SEAT SWITCH
LIFTGATE AJAR SWITCH
LIFTGATE WASHER PUMP MOTOR
LIFTGATE WIPER MOTOR
PARK BRAKE SWITCH
REAR DOOR LATCH SWITCH
REMOTE HEADPHONE JUMPER
REMOTE HEADPHONE MODULE
RH KICK PANEL PRIMARY CRASH SENSOR
RIGHT DOOR HANDLE SWITCH
RIGHT FRONT DOOR AJAR SWITCH
RIGHT LUMBAR SEAT PUMP MOTOR
RIGHT LUMBAR SEAT SWITCH
RIGHT REAR DOOR AJAR SWITCH
SEAT BELT BUCKLE SWITCH
SPEED CONTROL SWITCH ASSEMBLY

Full Body View:

AUXILIARY POWER RELAY
BACKUP LAMPS RELAY
CARGO LAMP
COURTESY LAMP RELAY
DOME AND READING LAMPS
DOME LAMP
ILLUMINATED ENTRY TIMER
LEFT BACKUP LAMP
LEFT COURTESY LAMP SWITCH
LEFT LICENSE LAMP
LEFT REAR STOP/SIDE MARKER LAMP
LEFT REAR TURN LAMP
LEFT VANITY MIRROR LAMP AND SWITCH
LICENSE LAMP
REAR AUXILIARY BLOWER MOTOR SWITCH ILLUMINATION
REAR CIGAR LIGHTER ILLUMINATION
RIGHT BACKUP LAMP
RIGHT LICENSE LAMP
RIGHT REAR STOP/SIDE MARKER LAMP
RIGHT REAR TURN LAMP
RIGHT VANITY MIRROR LAMP AND SWITCH
RUNNING LAMP RELAY
SLIDING DOOR COURTESY LAMP SWITCH
STEPWELL LAMP
TRAILER TOW RELAY MODULE
