Engine Controls

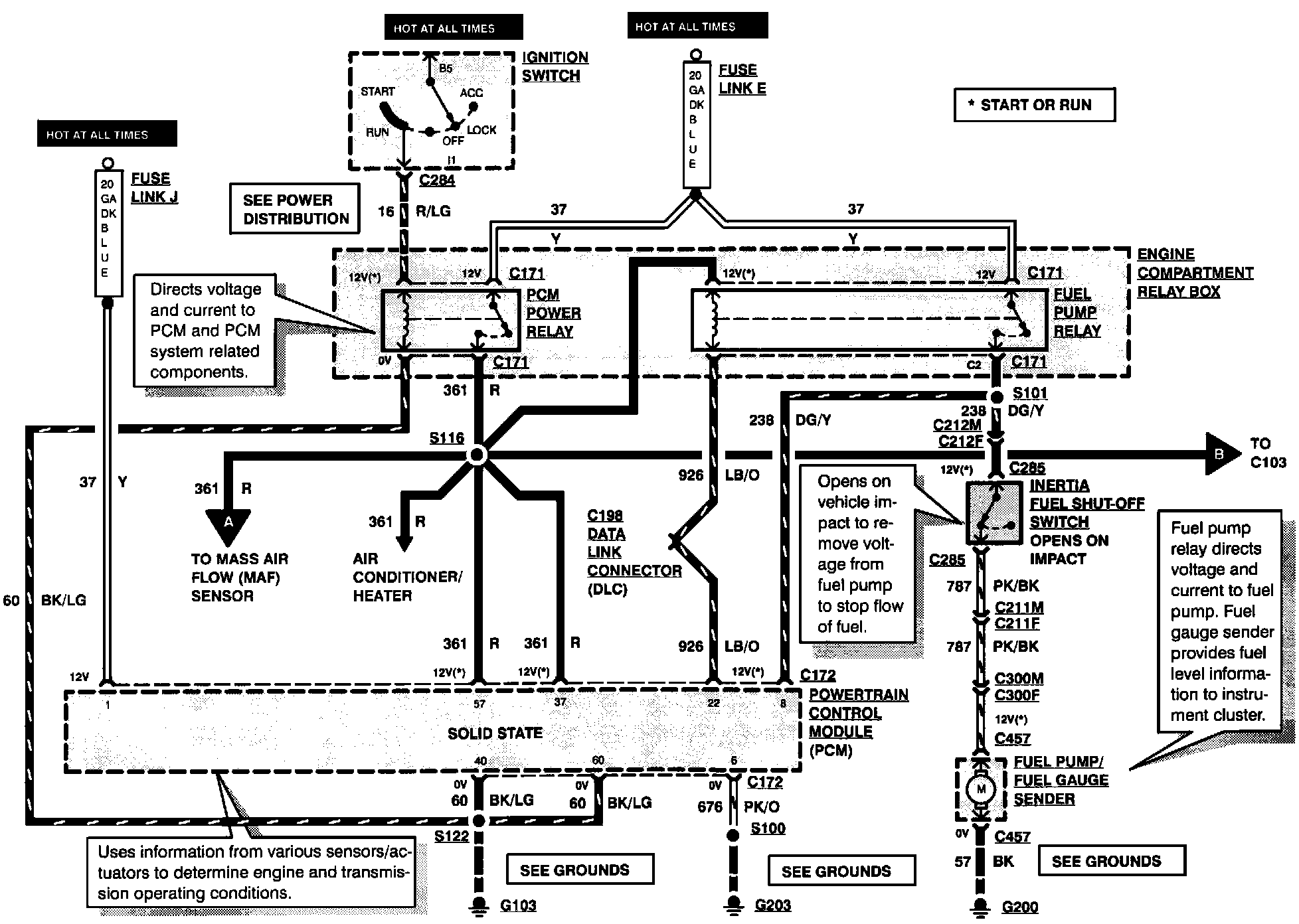

Electronic Engine Control (Part 1 Of 4):

FUEL PUMP RELAY
FUSE LINK E
FUSE LINK J
INERTIA FUEL SHUT-OFF SWITCH
PCM POWER RELAY

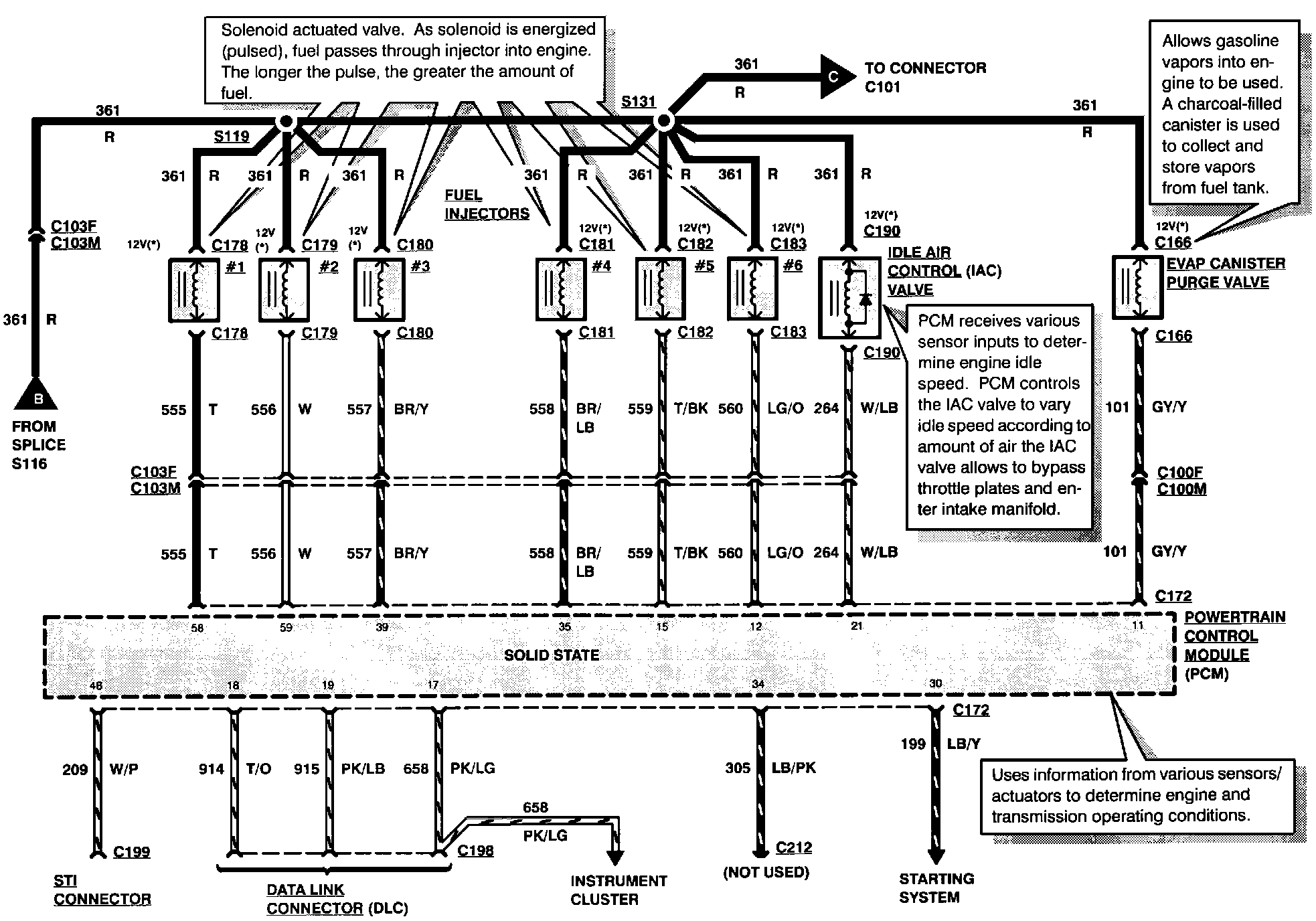

Electronic Engine Control (Part 2 Of 4):

EVAPORATIVE EMISSIONS CANISTER PURGE VALVE
FUEL INJECTORS
IDLE AIR CONTROL VALVE

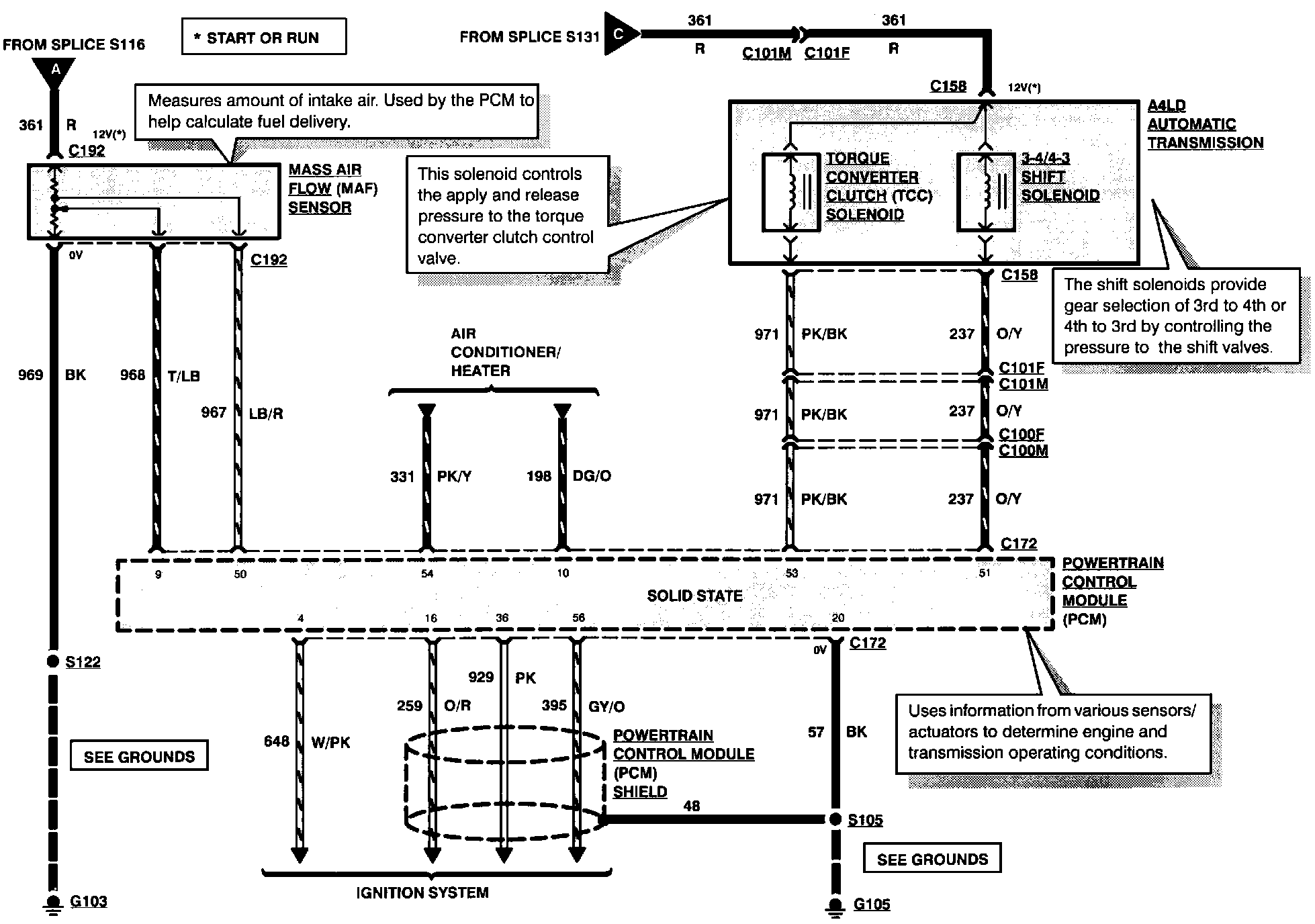

Electronic Engine Control (Part 3 Of 4):

3-4/4-3 SHIFT SOLENOID
MASS AIR FLOW SENSOR
TORQUE CONVERTER CLUTCH SOLENOID

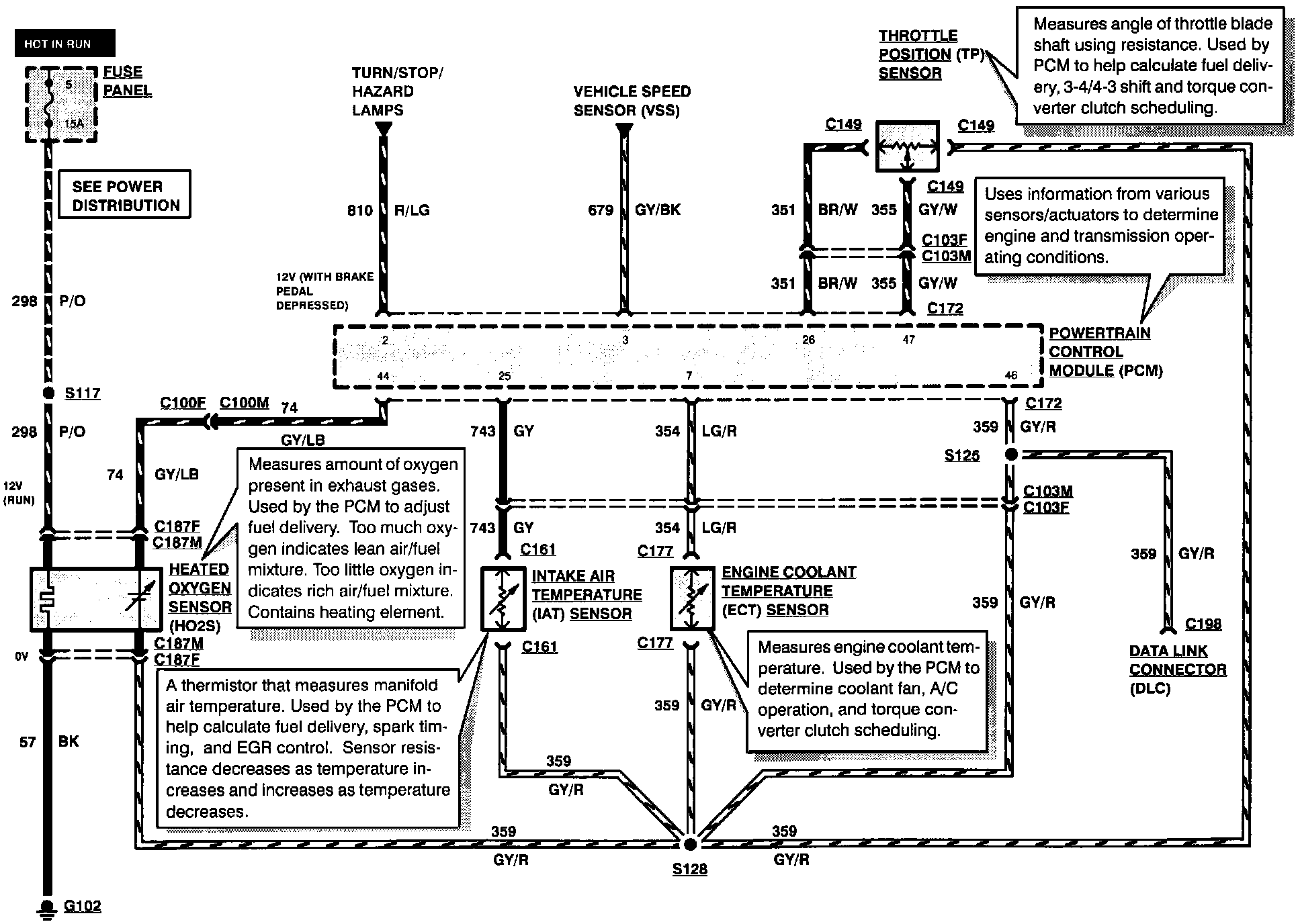

Electronic Engine Control (Part 4 Of 4):

ENGINE COOLANT TEMPERATURE SENSOR
HEATED OXYGEN SENSOR
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR
