Ford Truck
>>
1995
>>
E 150 Van V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

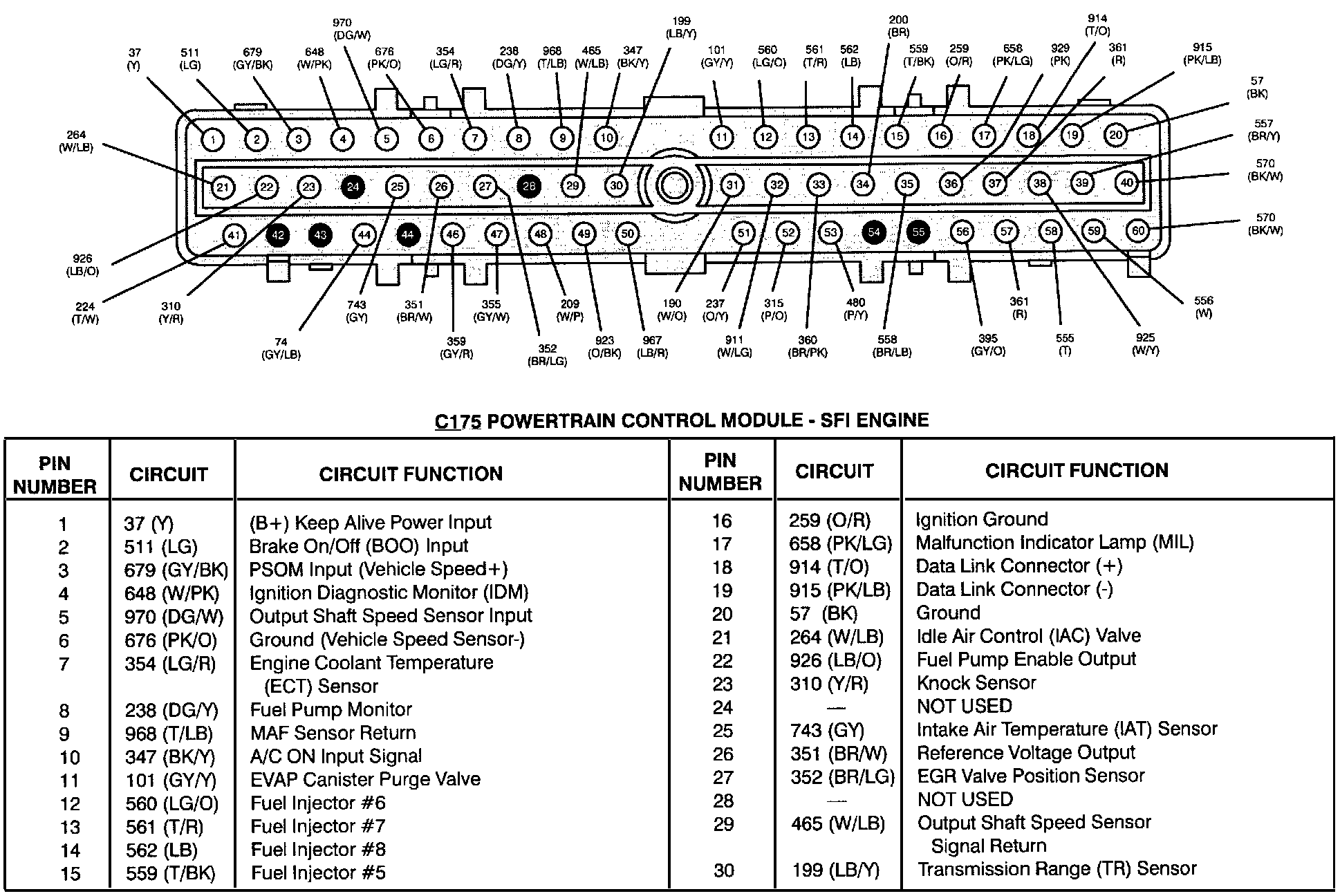

Powertrain Control Module (With Sequential Fuel Injector Engine) (Part 1 Of 2):

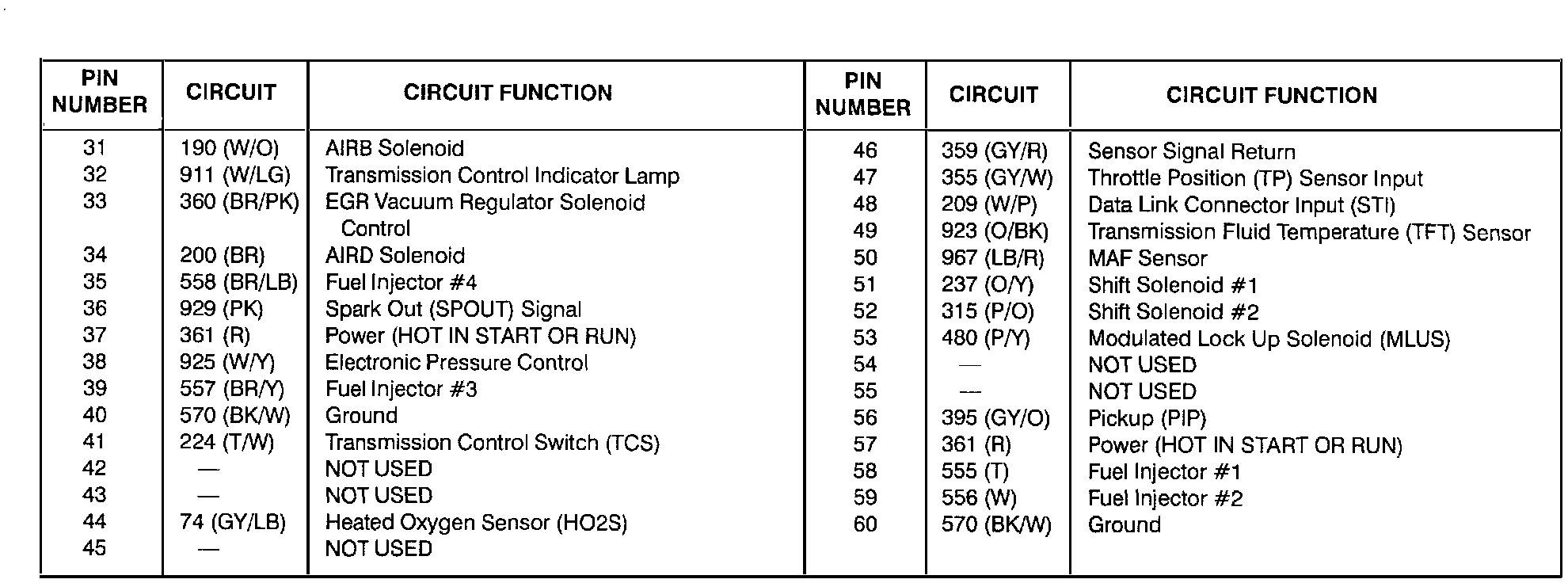

Powertrain Control Module (With Sequential Fuel Injection Engine) (Part 2 Of 2):
