Connector Views
>>
4R7OW Transmission
4R7OW Transmission

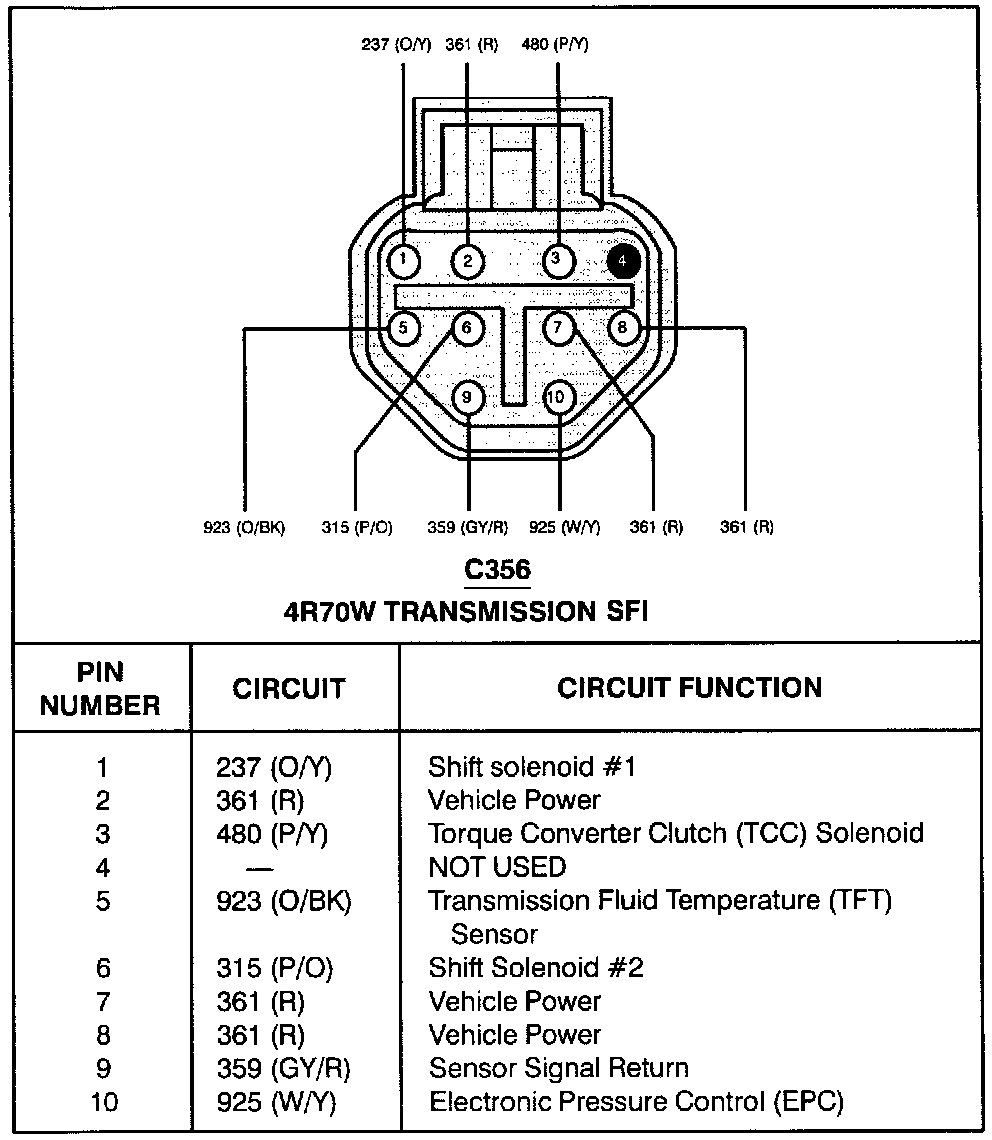

4R70W Transmission (With Sequential Fuel Injector):
