Alarm Module, (Vehicle Antitheft)

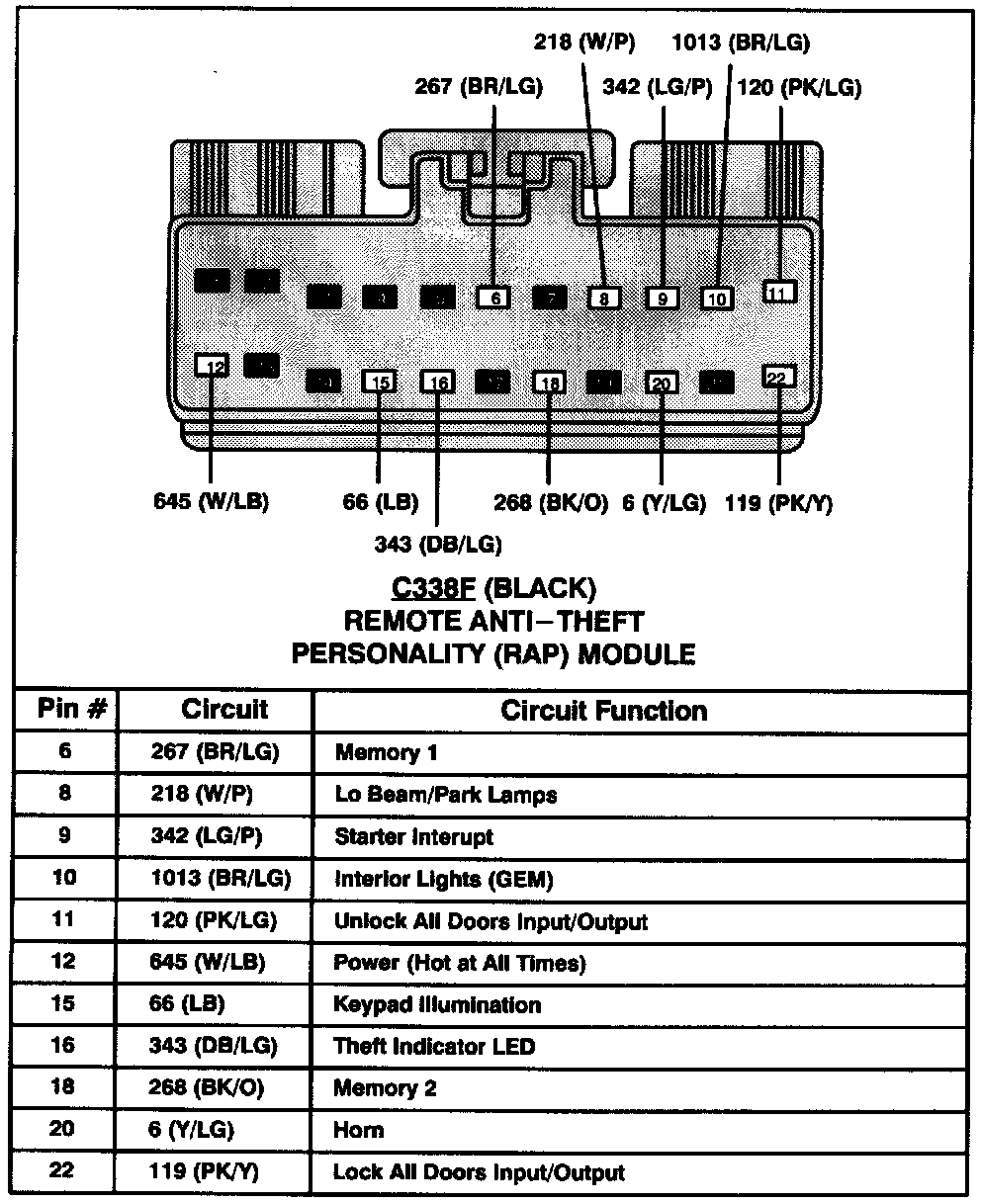

Remote Anti-Theft Personality Module (C338F):

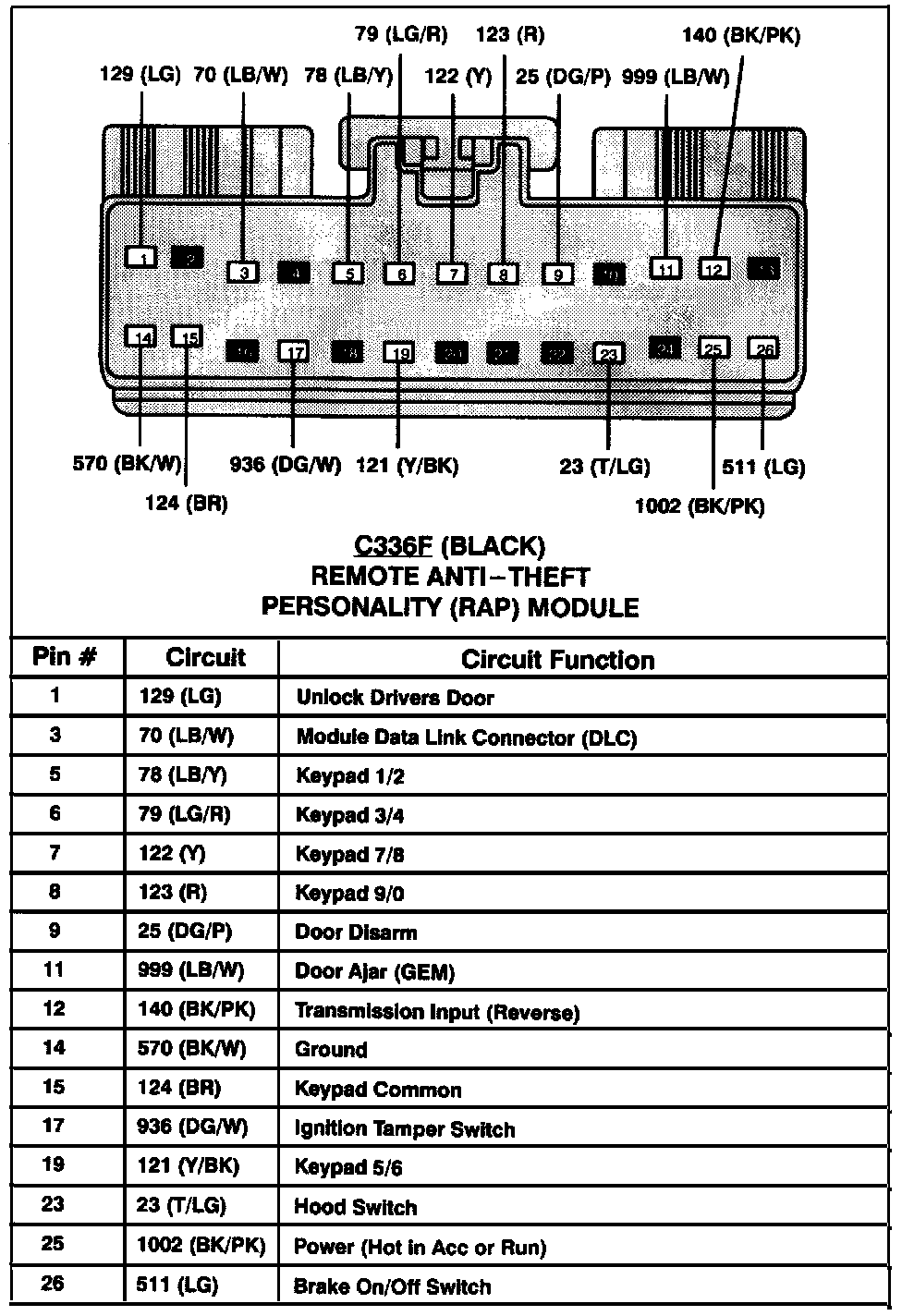

Remote Anti-Theft Personality Module (C336F):
