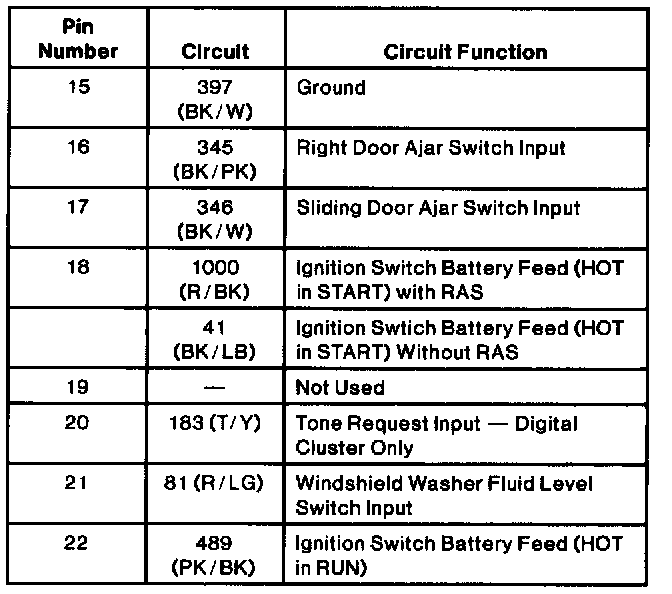

Home >> Ford Truck >> 1995 >> Windstar V6-182 3.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antitheft and Alarm Systems >> System Diagram >> Generic Electronic Module (GEM) Connector C2 >> 3 of 3

3 of 3
