Behind Instrument Panel Views

Behind Instrument Panel View:

4x4 MODE SWITCH
AIR BAG DIAGNOSTIC MONITOR
AIR BAG CLOCKSPRING ASSEMBLY
AUXILIARY POWER
CENTRAL TIMER MODULE
DIMMER MODULE
GENERIC ELECTRONIC MODULE
FRONT CONTROL UNIT
IN CAR TEMPERATURE SENSOR
INERTIA FUEL SHUTOFF
LIFTGATE WIPER/WASHER SWITCH
RADIO CONTROL UNIT
TORQUE ON DEMAND RELAY

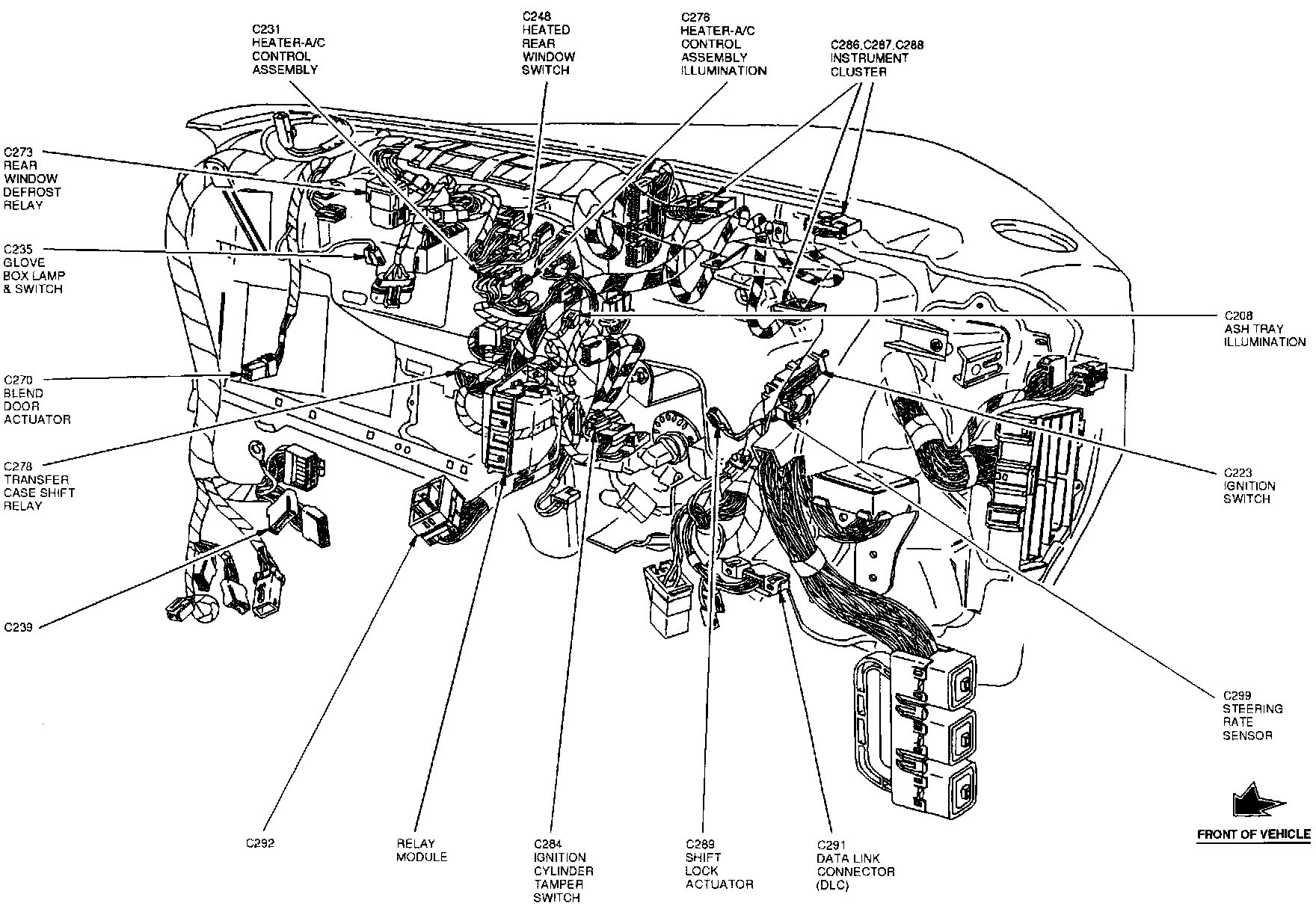

Behind Instrument Panel View:

ASH TRAY ILLUMINATION
BLEND DOOR ACTUATOR
DATA LINK CONNECTOR
GLOVE BOX LAMP & SWITCH
HEATED REAR WINDOW SWITCH
HEATED-A/C CONTROL ASSEMBLY ILLUMINATION
HEATER-A/C CONTROL ASSEMBLY
IGNITION CYLINDER TAMPER SWITCH
IGNITION SWITCH
INSTRUMENT CLUSTER
REAR WINDOW DEFROST RELAY
RELAY MODULE
SHIFT LOCK ACTUATOR
STEERING RATE SENSOR
TRANSFER CASE SHIFT RELAY

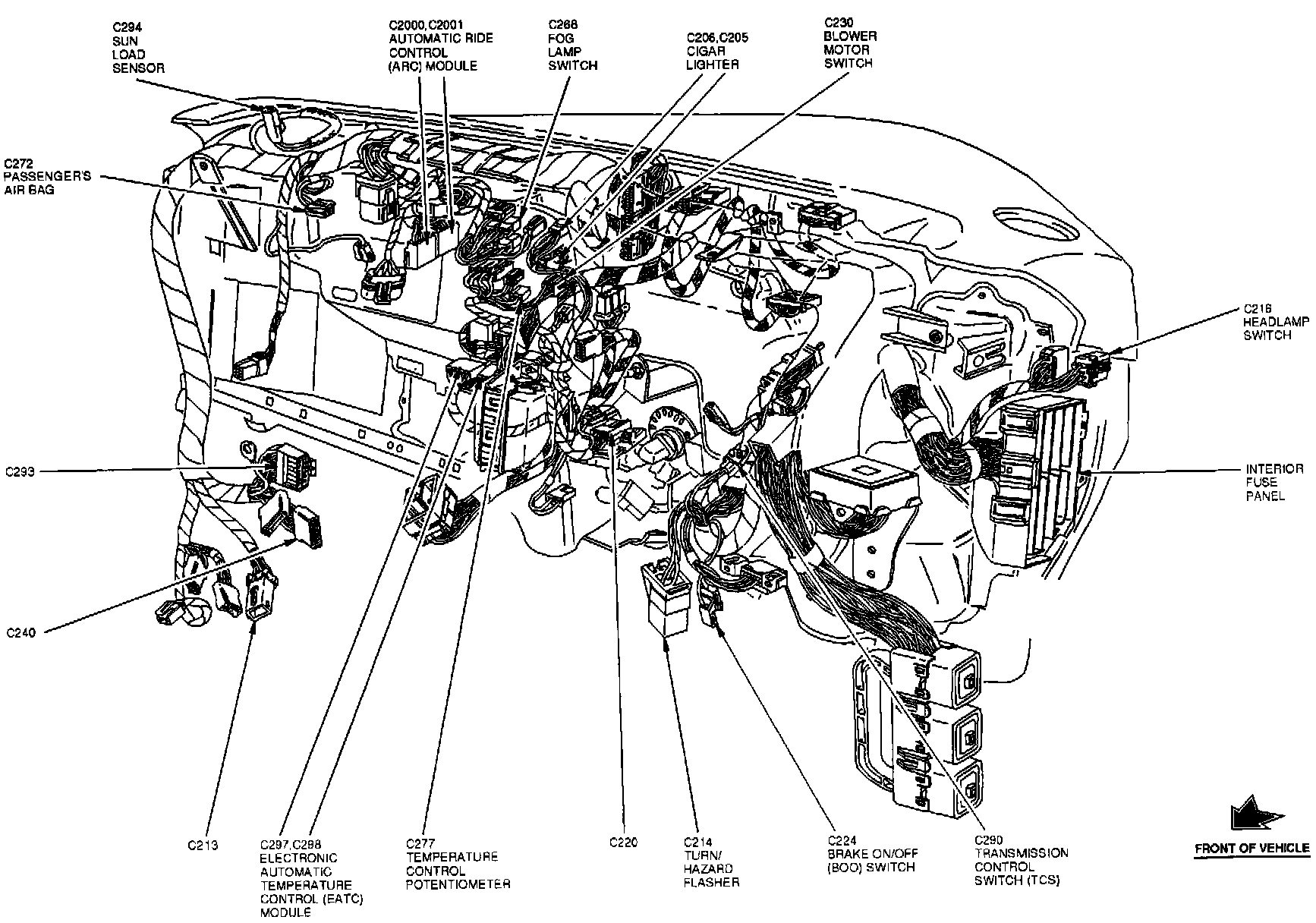

Behind Instrument Panel View:

AUTOMATIC RIDE CONTROL MODULE
BLOWER MOTOR SWITCH
BRAKE ON/OFF SWITCH
CIGAR LIGHTER
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL MODULE
FOG LAMP SWITCH
HEADLAMP SWITCH
INTERIOR FUSE PANEL
PASSENGER'S AIR BAG
SUN LOAD SENSOR
TEMPERATURE CONTROL POTENTIOMETER
TRANSMISSION CONTROL SWITCH
TURN/HAZARD FLASHER
