Wiper and Washer Systems: Adjustments

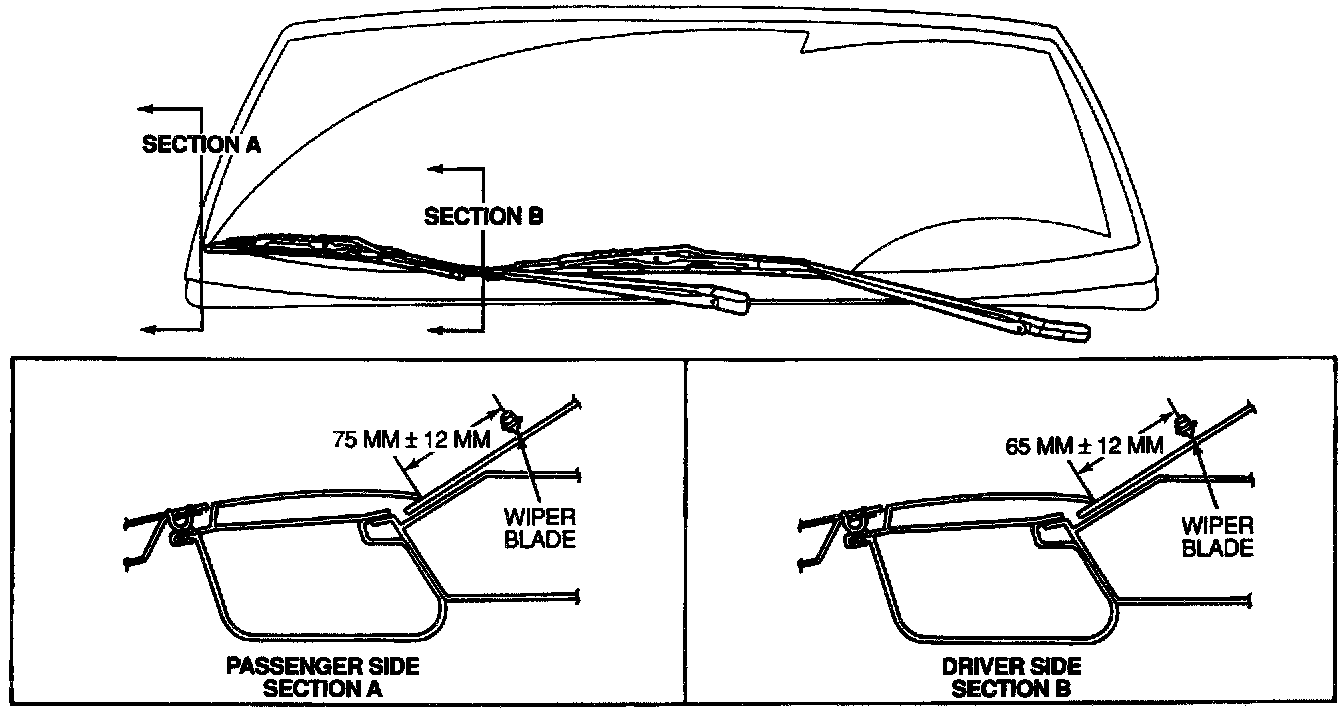

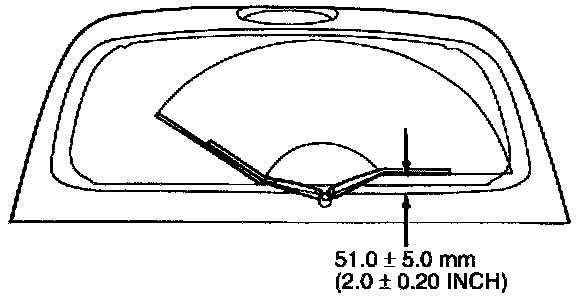

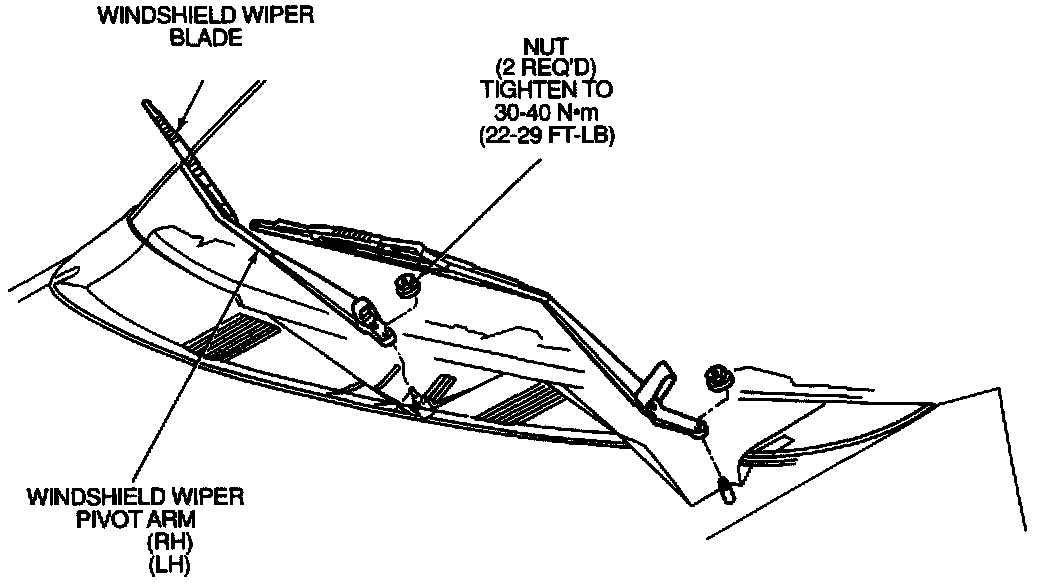

1. Remove windshield wiper pivot arm and windshield wiper blade from windshield wiper mounting arm and pivot shaft.
2. Turn on multi-function switch, allow windshield wiper motor to move windshield wiper mounting arm and pivot shafts three or four cycles.
3. Turn off the multi-function switch to place windshield wiper mounting arm and pivot shafts in PARK position.
