Home
>>
Ford Truck
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Caliper
>>
Diagrams
>>
Exploded Views
Exploded Views

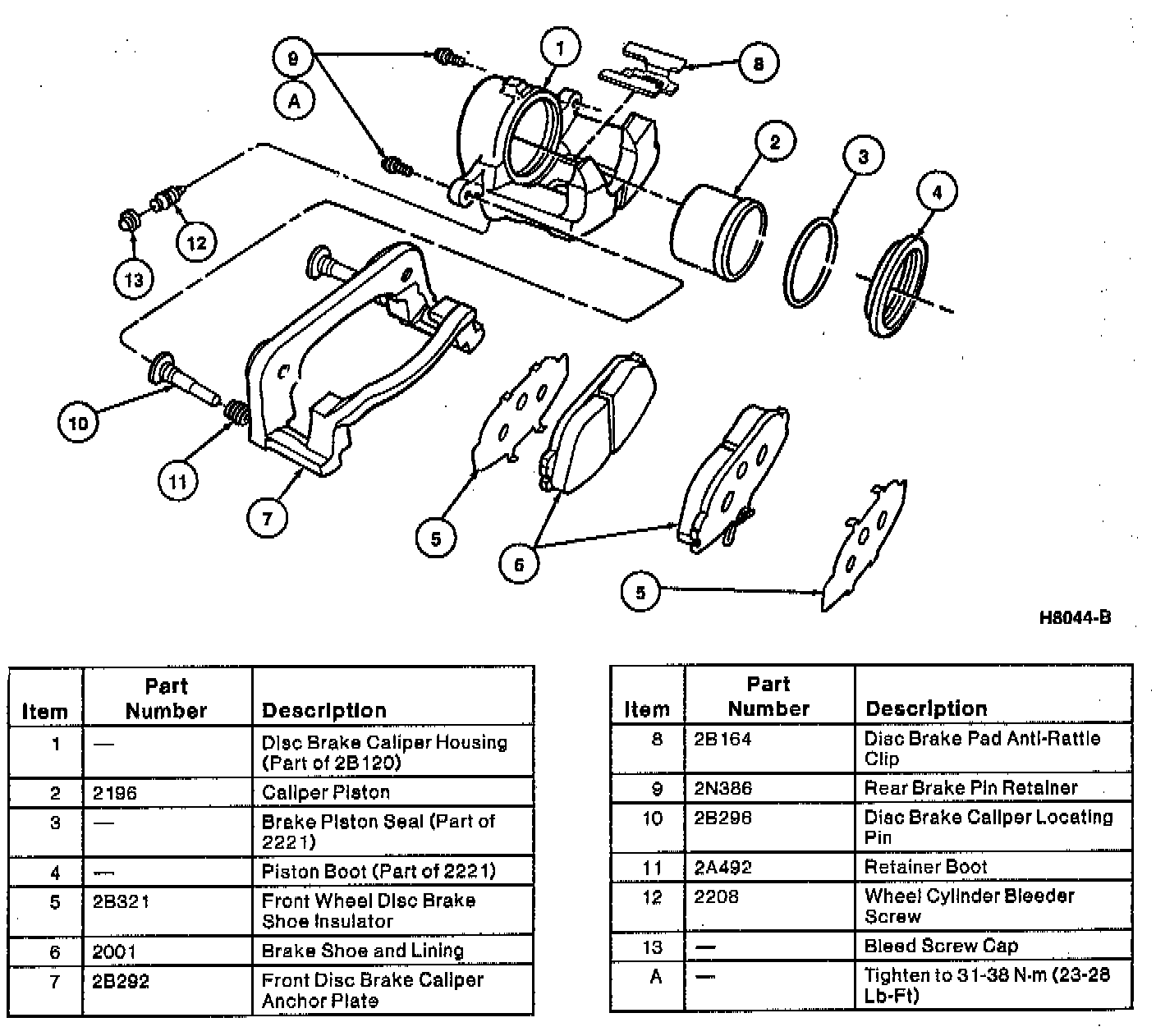

Disc Brake Caliper:
