Home
>>
Ford Truck
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor Switch
>>
Rear
Rear

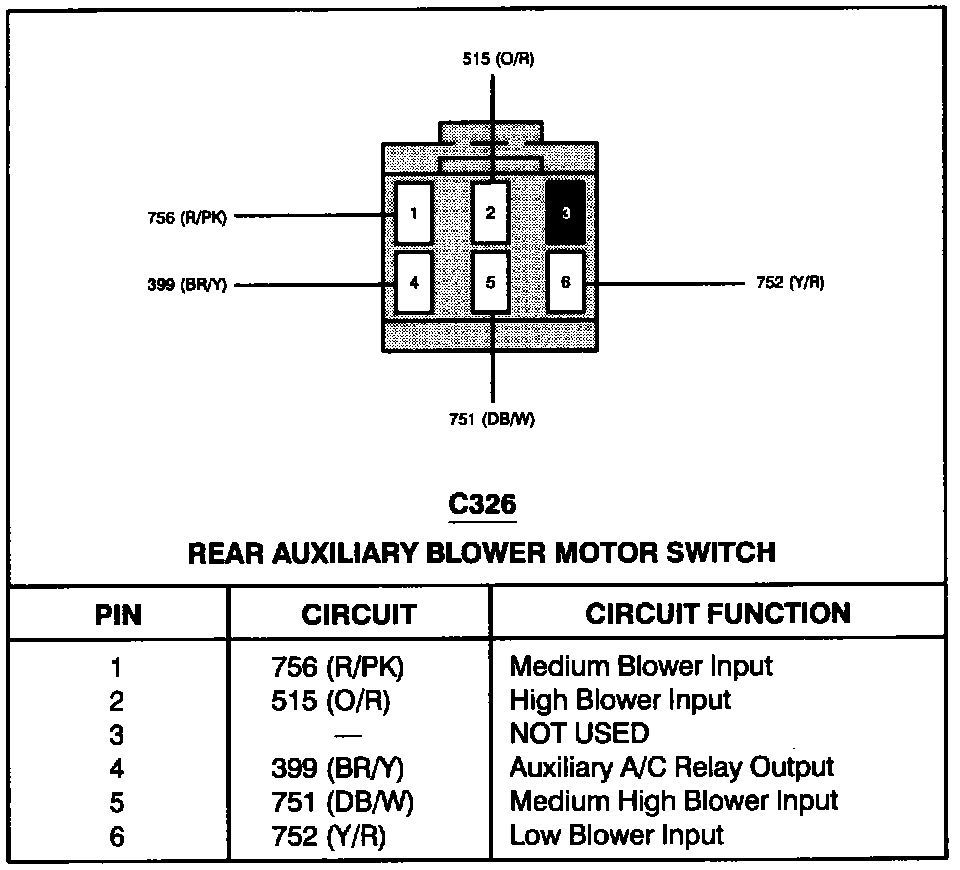

Rear Auxiliary Blower Motor Switch:
