Home
>>
Ford Truck
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Mirrors
>>
System Diagram
>>
Power/Heated Mirror
>>
Right
Right

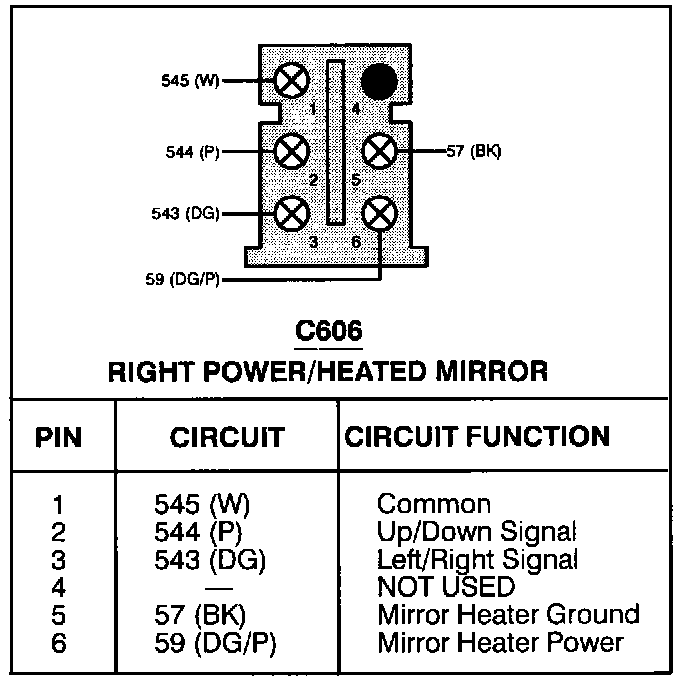

Right Power/Heated Mirror:
