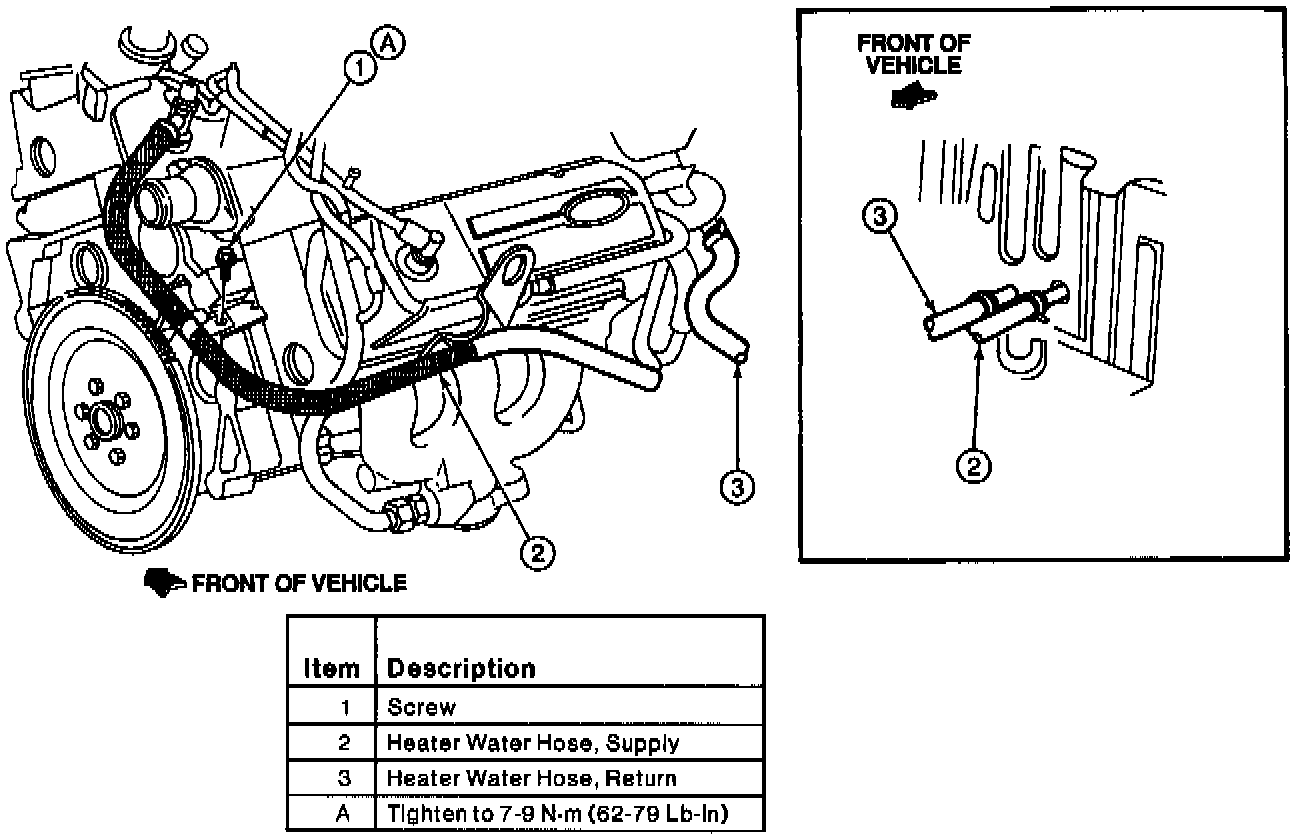

Heater Hose: Service and Repair

REMOVAL
1. Drain the coolant from the cooling system. Observe the safety precautions.
2. Loosen the clamps and remove the heater water hose from the vehicle.

INSTALLATION
1. Route the heater water hose following route of original or removed hose exactly.
2. Connect the heater water hose to the fittings and install clamps.
3. Fill and bleed the cooling system.
4. Check for coolant leaks and for proper operation of the system.
