Removal & Installation

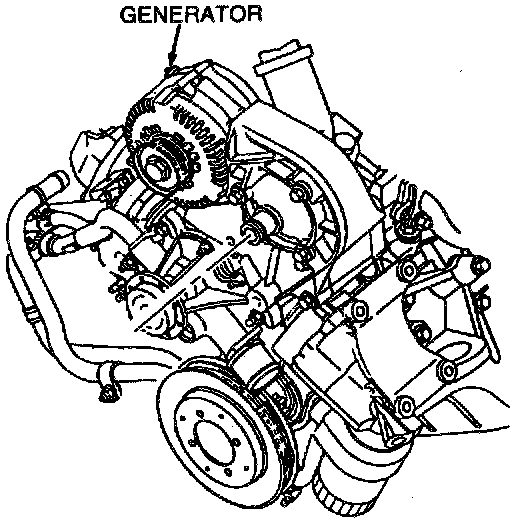

REMOVAL and INSTALLATION
1. Disconnect battery ground cable.
2. Disconnect wire harness attachments to the generator.
3. Remove drive belt.
4. Remove three attaching bolts and generator.
5. To install, reverse Removal procedure. Tighten bolts to 40-55 N.m (30-41 lb-ft).
