Ford Truck
>>
1996
>>
Windstar V6-232 3.8L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Connector Views Used With Tests
>>
Generic Electronic Module
>>

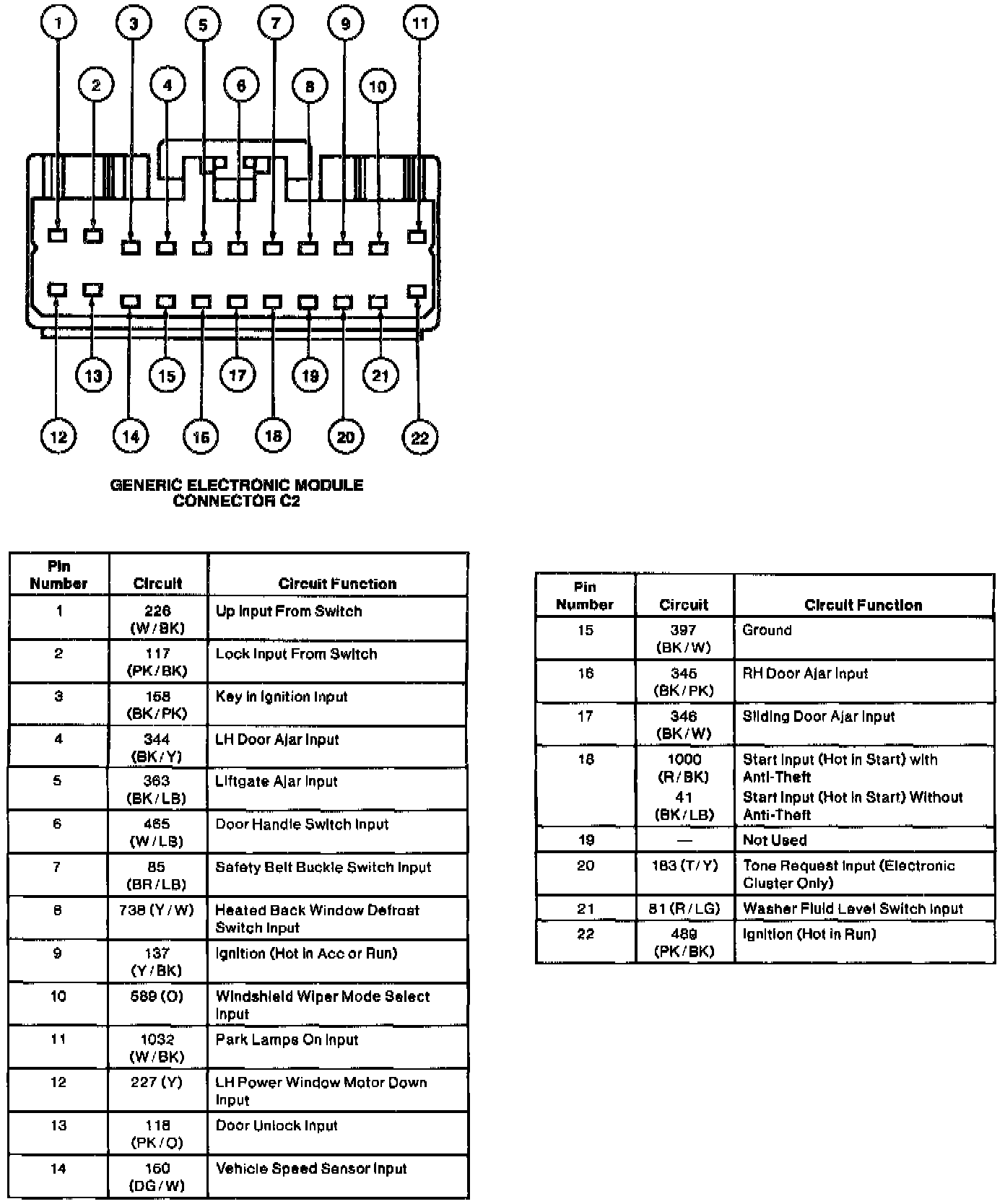

Connector C2
Connector C2
