Main Relay (Computer/Fuel System): Locations

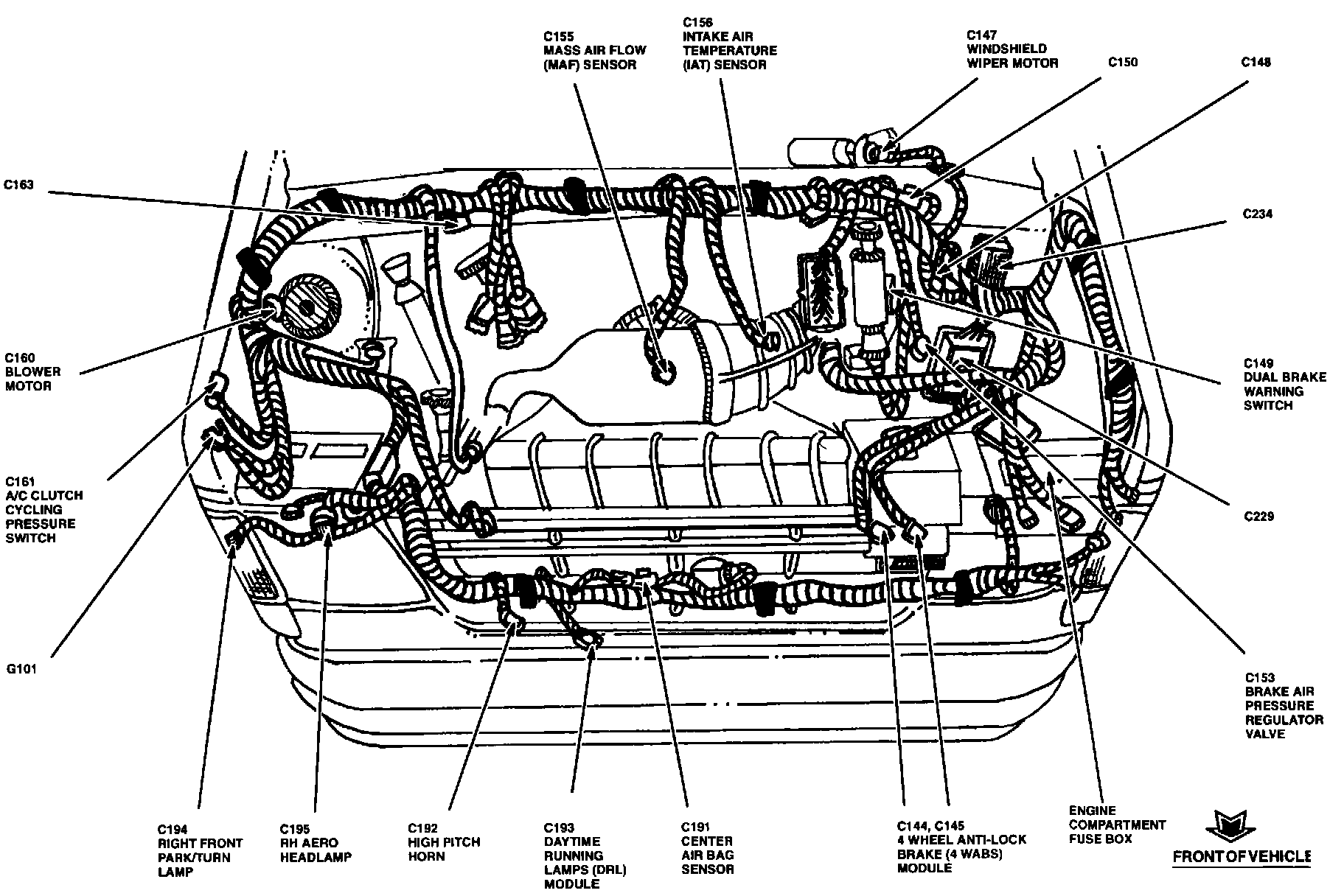

Engine Compartment View:

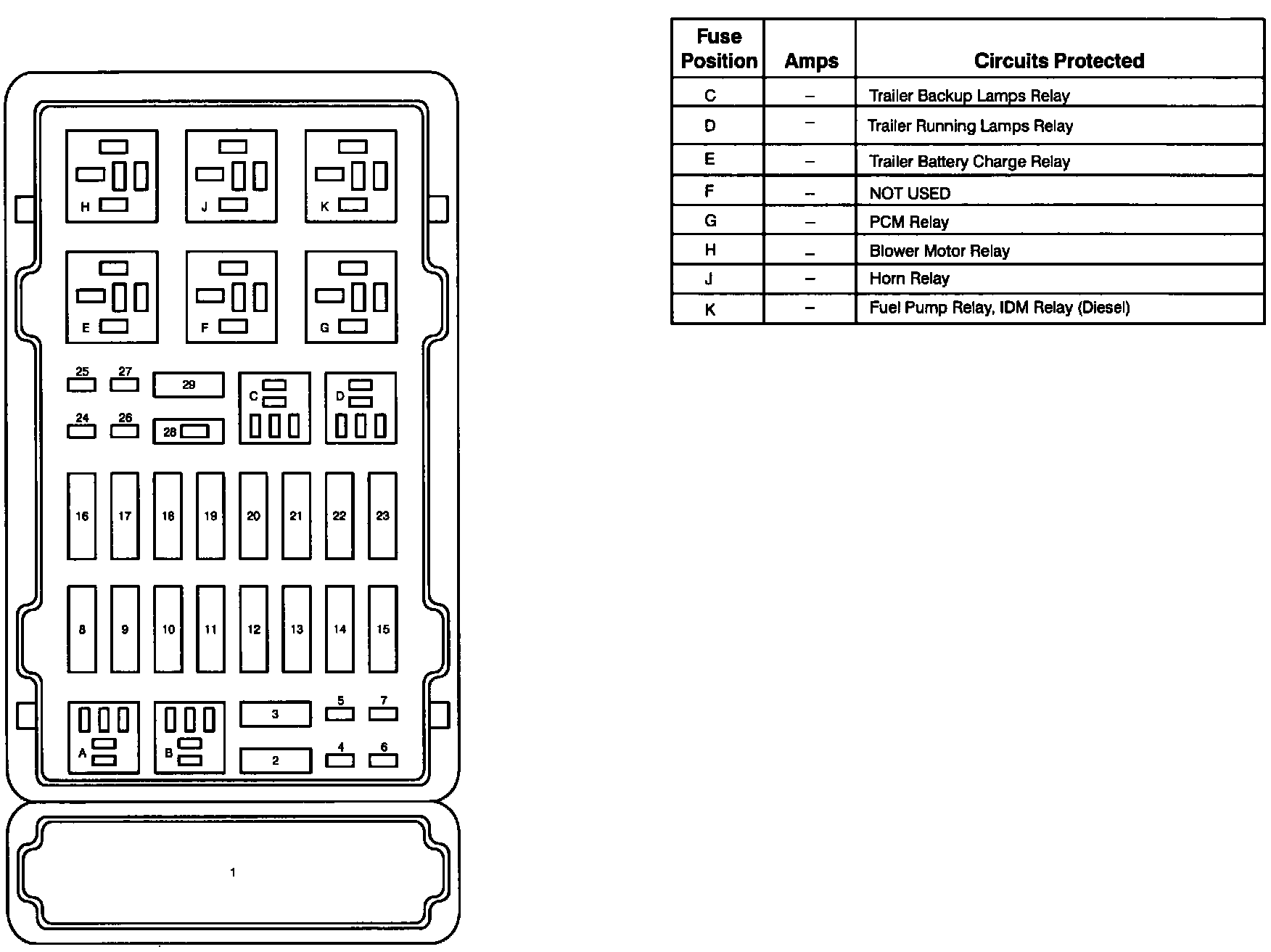

Engine Compartment Fuse Box (Part 2 Of 2):

The PCM Power Relay is located at the LH front of the engine compartment, in the engine compartment fuse box.
