Climate Control Assembly

REMOVAL
1. Disconnect battery ground cable.
2. Remove instrument panel ash receptacle by pulling service lever downward and pulling assembly outward.
3. Remove two instrument panel finish panel retaining screws over instrument panel ash receptacle cavity.







4. Remove instrument panel finish panel by grasping outer edges and pulling outward until retaining clips release panel.
5. Disconnect electrical connectors from finish panel components.
6. Remove four control assembly retaining screws.

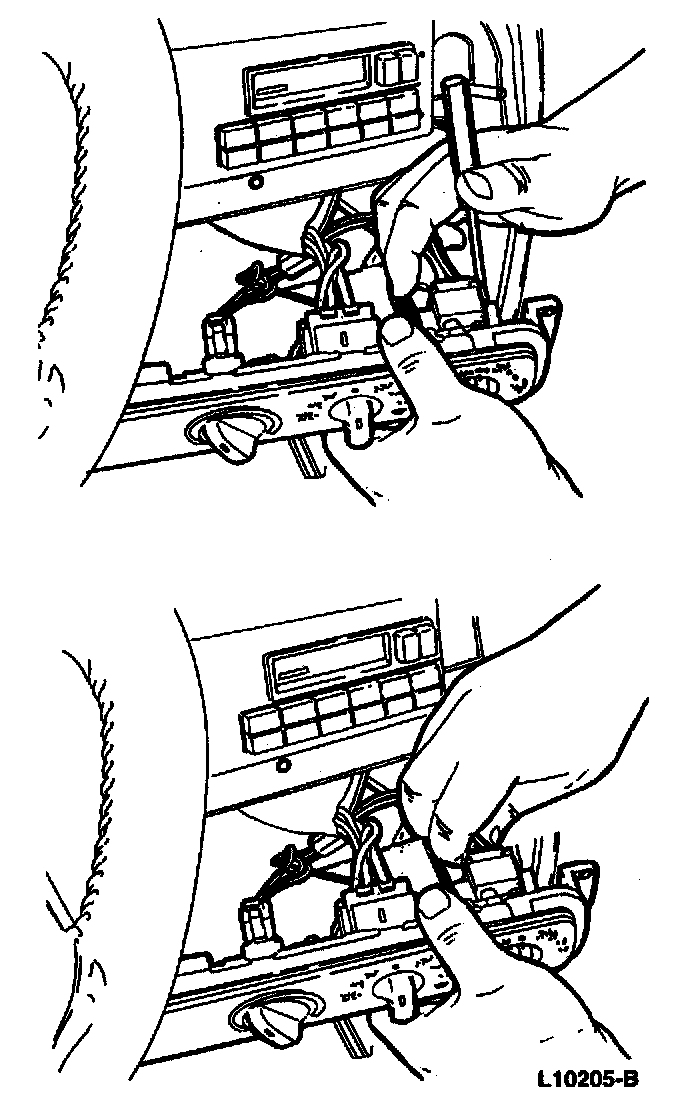

7. Disconnect electrical connectors and vacuum connector from heater control.
8. Remove heater control.

INSTALLATION
1. Follow removal procedure in reverse order.
