Full Body Views

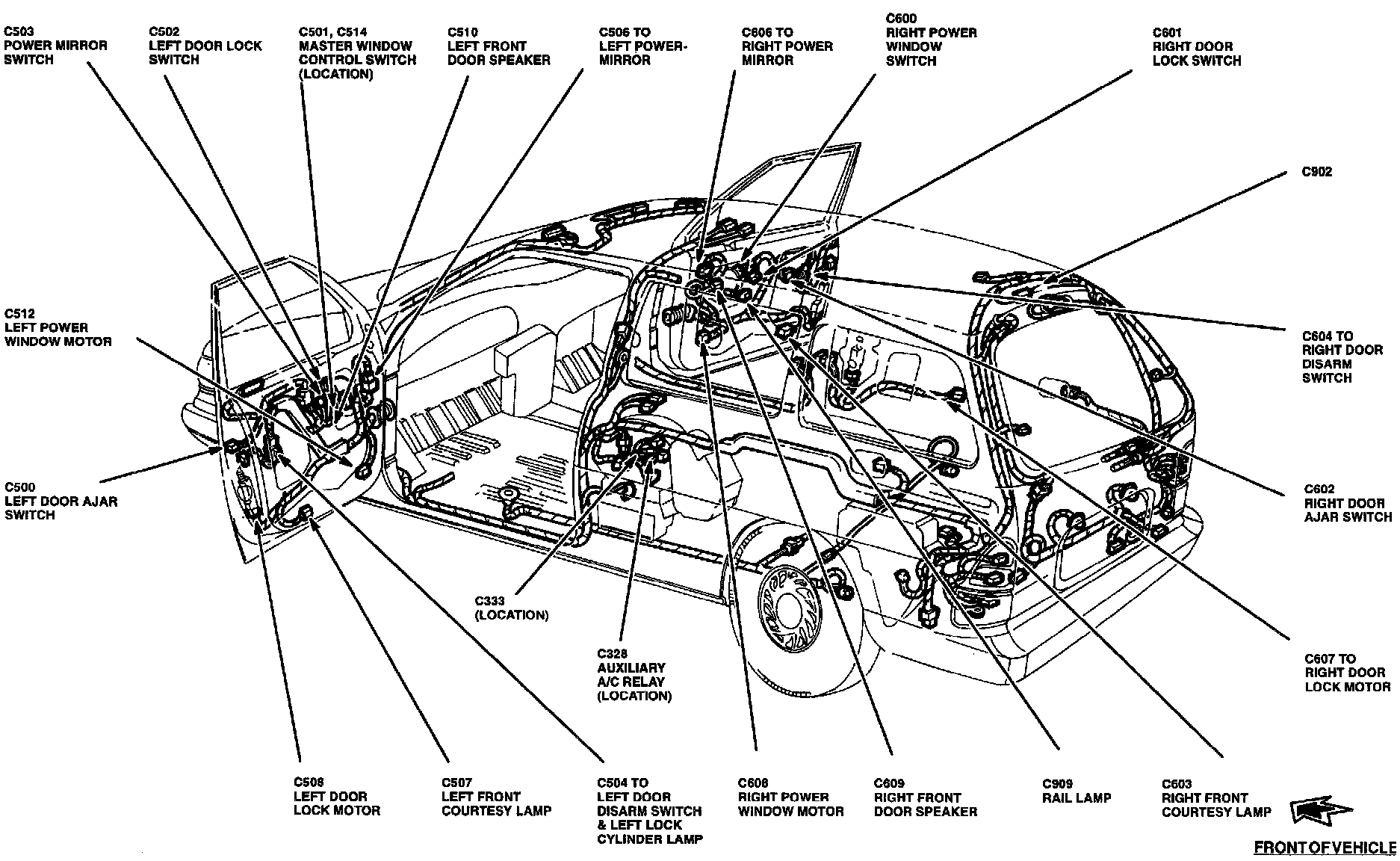

Full Body View:

AUXILIARY A/C RELAY
LEFT DOOR AJAR SWITCH
LEFT DOOR DISARM SWITCH
LEFT DOOR LOCK MOTOR
LEFT DOOR LOCK SWITCH
LEFT FRONT COURTESY LAMP
LEFT FRONT DOOR SPEAKER
LEFT LOCK CYLINDER LAMP
LEFT POWER MIRROR
LEFT POWER WINDOW MOTOR
MASTER WINDOW CONTROL SWITCH
POWER MIRROR SWITCH
RAIL LAMP
RIGHT DOOR AJAR SWITCH
RIGHT DOOR DISARM SWITCH
RIGHT DOOR LOCK MOTOR
RIGHT DOOR LOCK SWITCH
RIGHT FRONT COURTESY LAMP
RIGHT FRONT DOOR SPEAKER
RIGHT POWER MIRROR
RIGHT POWER WINDOW MOTOR
RIGHT POWER WINDOW SWITCH

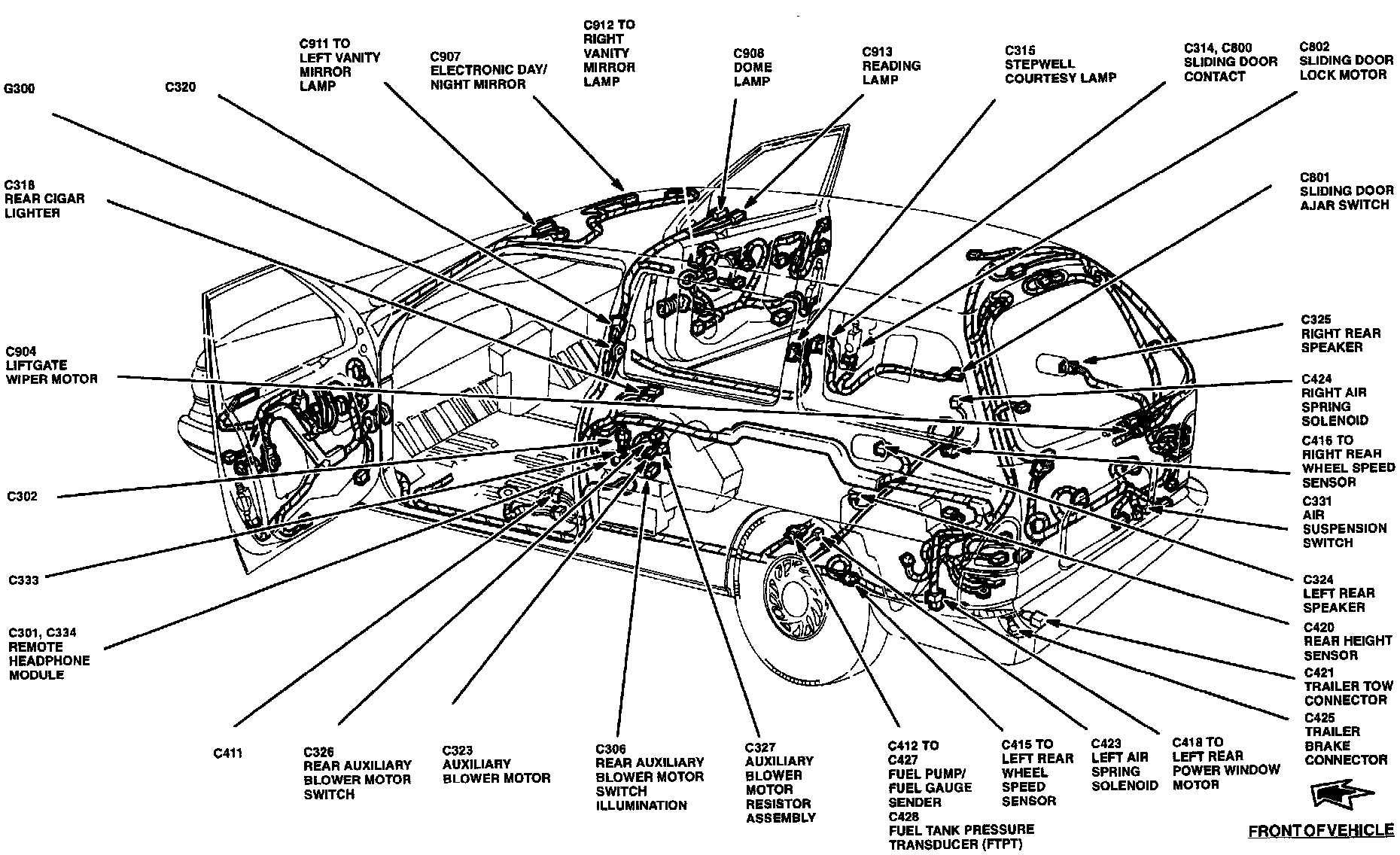

Full Body View:

AIR SUSPENSION SWITCH
AUXILIARY BLOWER MOTOR
AUXILIARY BLOWER MOTOR RESISTOR ASSEMBLY
DOME LAMP
ELECTRONIC DAY/NIGHT MIRROR
FUEL PUMP/FUEL GAUGE SENDER
FUEL TANK PRESSURE TRANSDUCER
LEFT AIR SPRING SOLENOID
LEFT REAR POWER WINDOW MOTOR
LEFT REAR SPEAKER
LEFT REAR WHEEL SPEED SENSOR
LEFT VANITY MIRROR LAMP
LIFTGATE WIPER MOTOR
READING LAMP
REAR AUXILIARY BLOWER MOTOR SWITCH
REAR AUXILIARY BLOWER MOTOR SWITCH ILLUMINATION
REAR CIGAR LIGHTER
REAR HEIGHT SENSOR
REMOTE HEADPHONE MODULE
RIGHT AIR SPRING SOLENOID
RIGHT REAR SPEAKER
RIGHT REAR WHEEL SPEED SENSOR
RIGHT VANITY MIRROR LAMP
SLIDING DOOR AJAR SWITCH
SLIDING DOOR CONTACT
SLIDING DOOR LOCK MOTOR
STEPWELL COURTESY LAMP
TRAILER BRAKE CONNECTOR
TRAILER TOW CONNECTOR

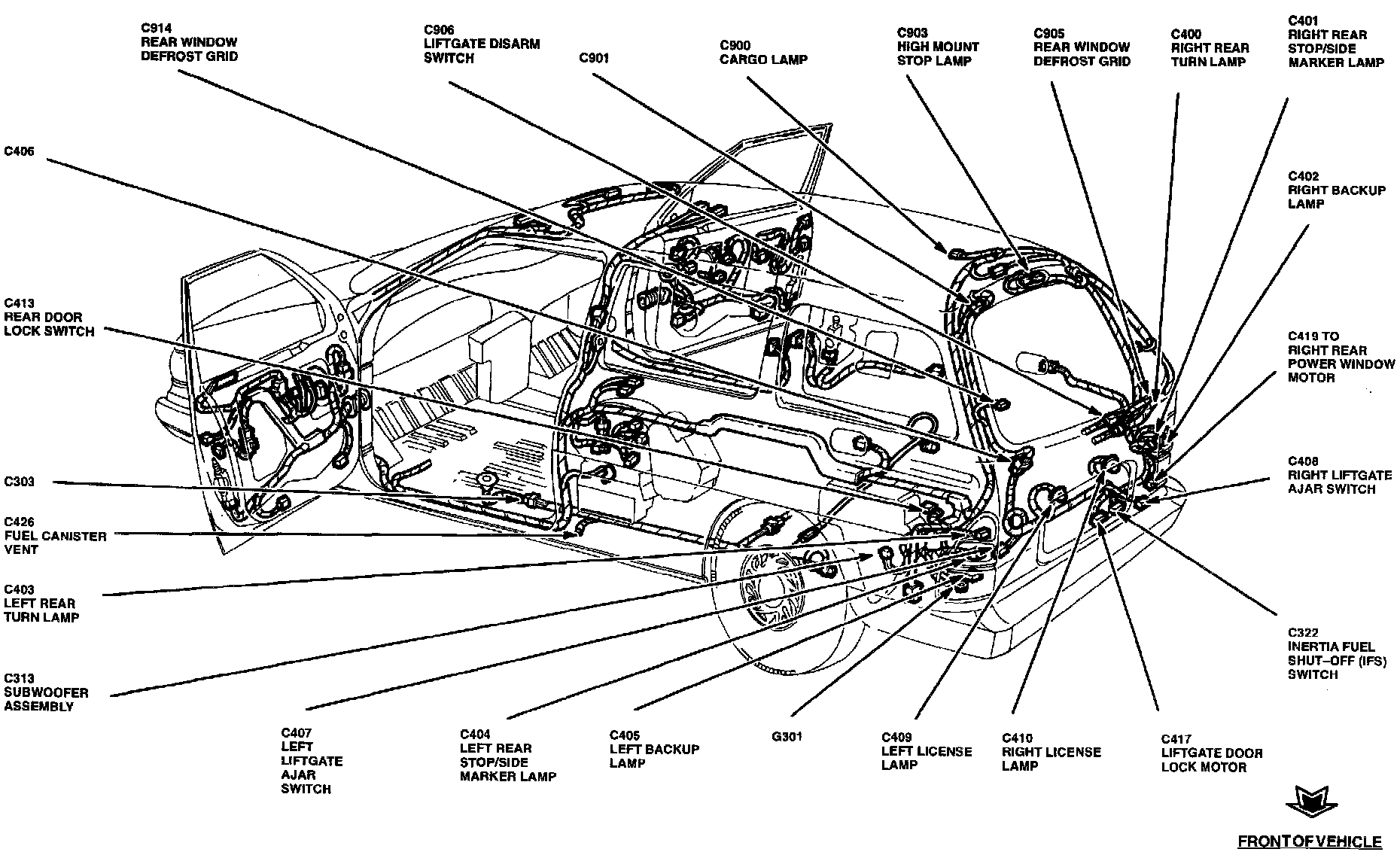

Full Body View:

CARGO LAMP
FUEL CANISTER VENT
HIGH MOUNT STOP LAMP
INERTIA FUEL SHUT-OFF SWITCH
LEFT BACKUP LAMP
LEFT LICENSE LAMP
LEFT LIFTGATE AJAR SWITCH
LEFT REAR STOP/SIDE MARKER LAMP
LEFT REAR TURN LAMP
LIFTGATE DISARM SWITCH
LIFTGATE DOOR LOCK MOTOR
REAR DOOR LOCK SWITCH
REAR WINDOW DEFROST GRID
RIGHT BACKUP LAMP
RIGHT LICENSE LAMP
RIGHT LIFTGATE AJAR SWITCH
RIGHT REAR POWER WINDOW MOTOR
RIGHT REAR STOP/SIDE MARKER LAMP
RIGHT REAR TURN LAMP
SUBWOOFER ASSEMBLY
