F 450 2WD Super Duty V10-6.8L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Timing Components
Timing Components

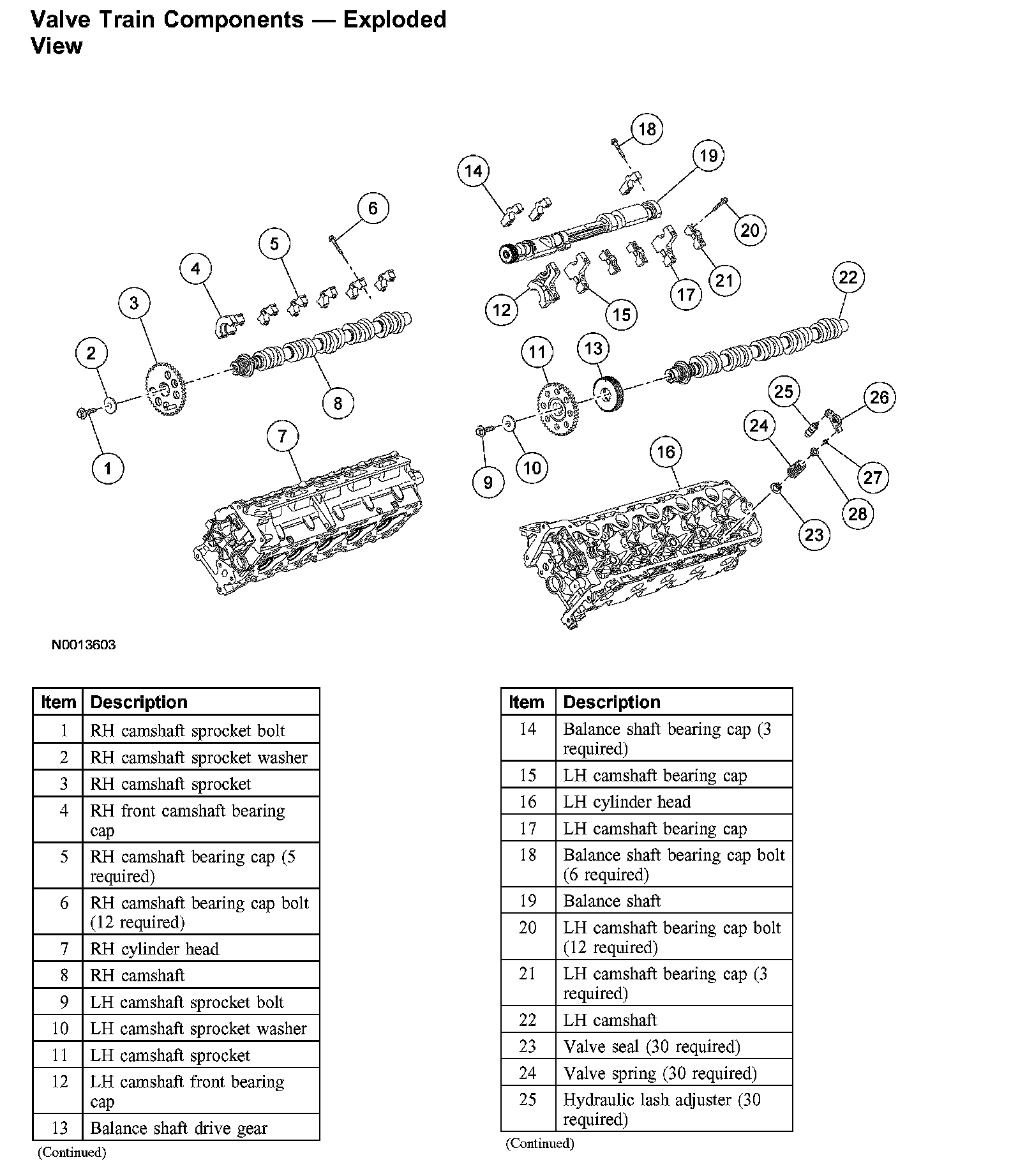

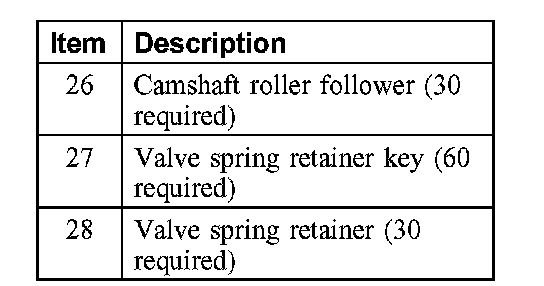

Valve Train Components - Exploded View
Valve Train Components - Exploded View:
Valve Train Components - Exploded View:
