Clutch, M/T
>>
Clutch Hydraulic System
Clutch Hydraulic System
Clutch Controls - 2.3L Engines

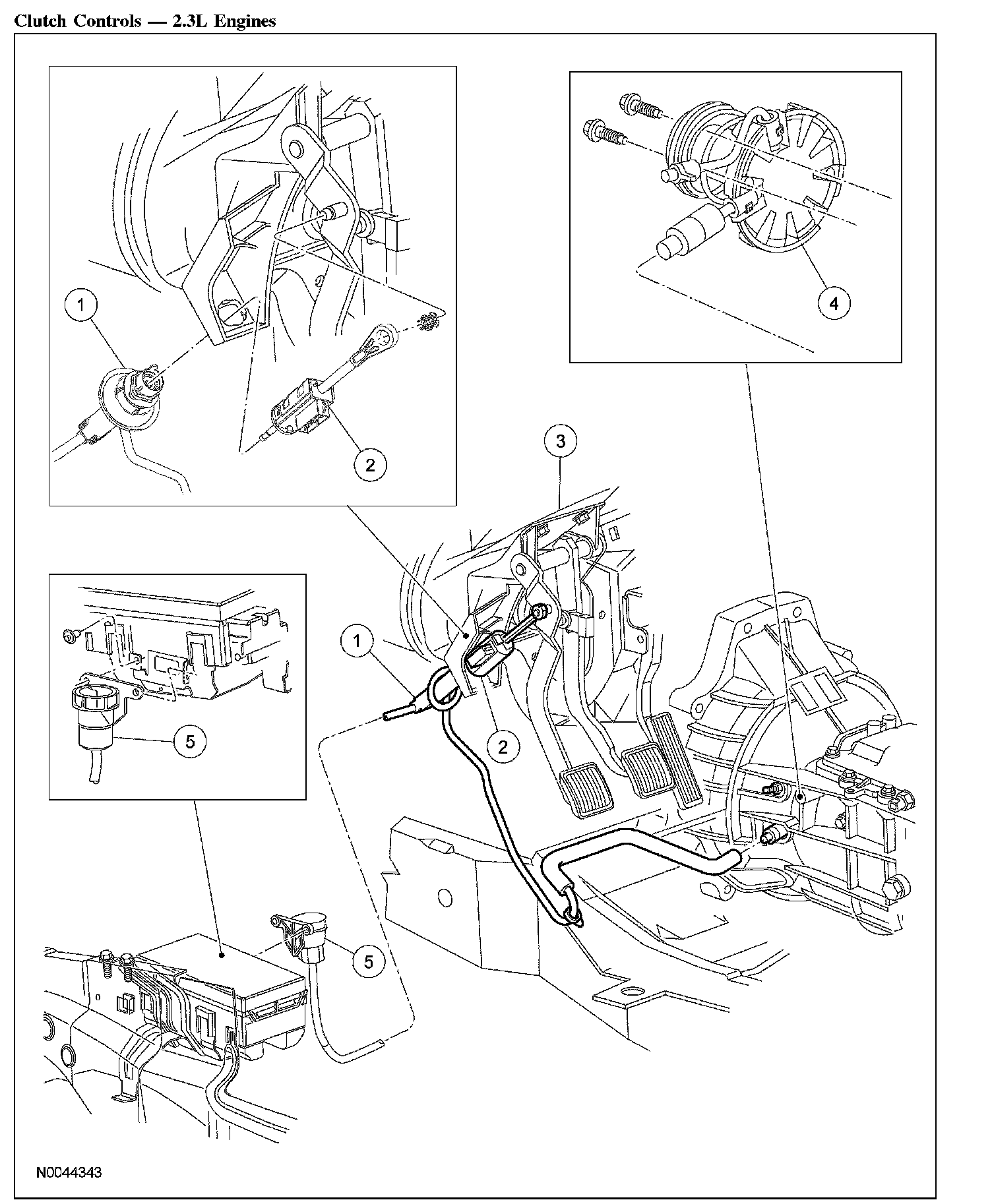

Clutch Controls - 2.3L Engines (Part 1):

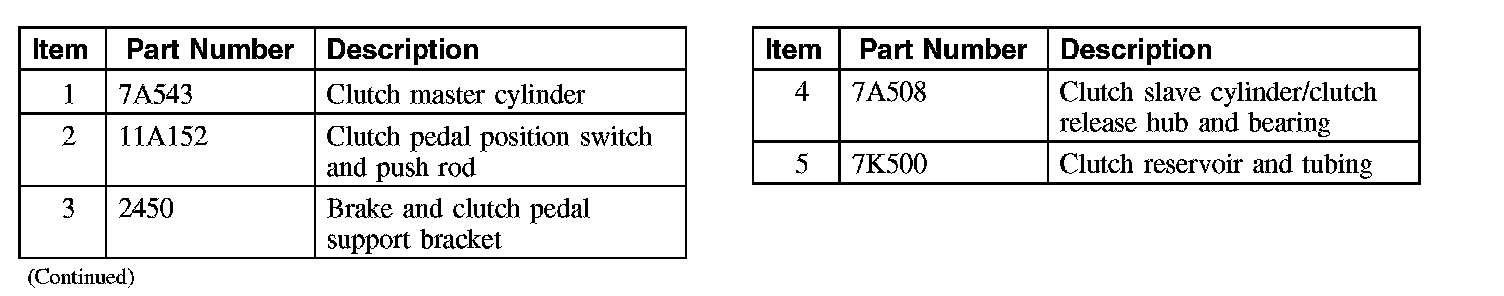

Clutch Controls - 2.3L Engines (Part 2):
