Radiator

Radiator and Cooling Fan - Exploded View, 2.3L

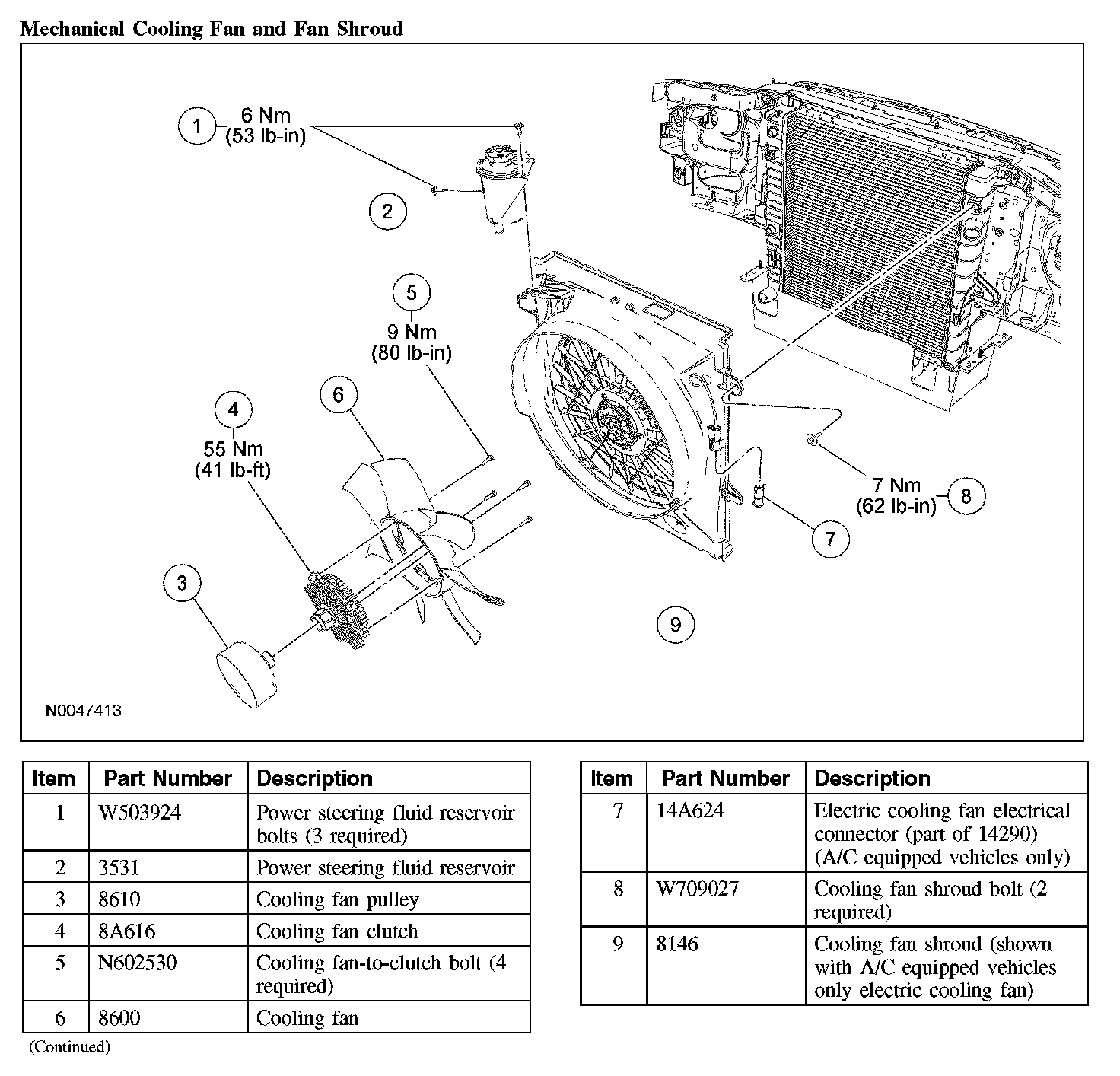

Mechanical Cooling Fan and Fan Shroud

Mechanical Cooling Fan and Fan Shroud:

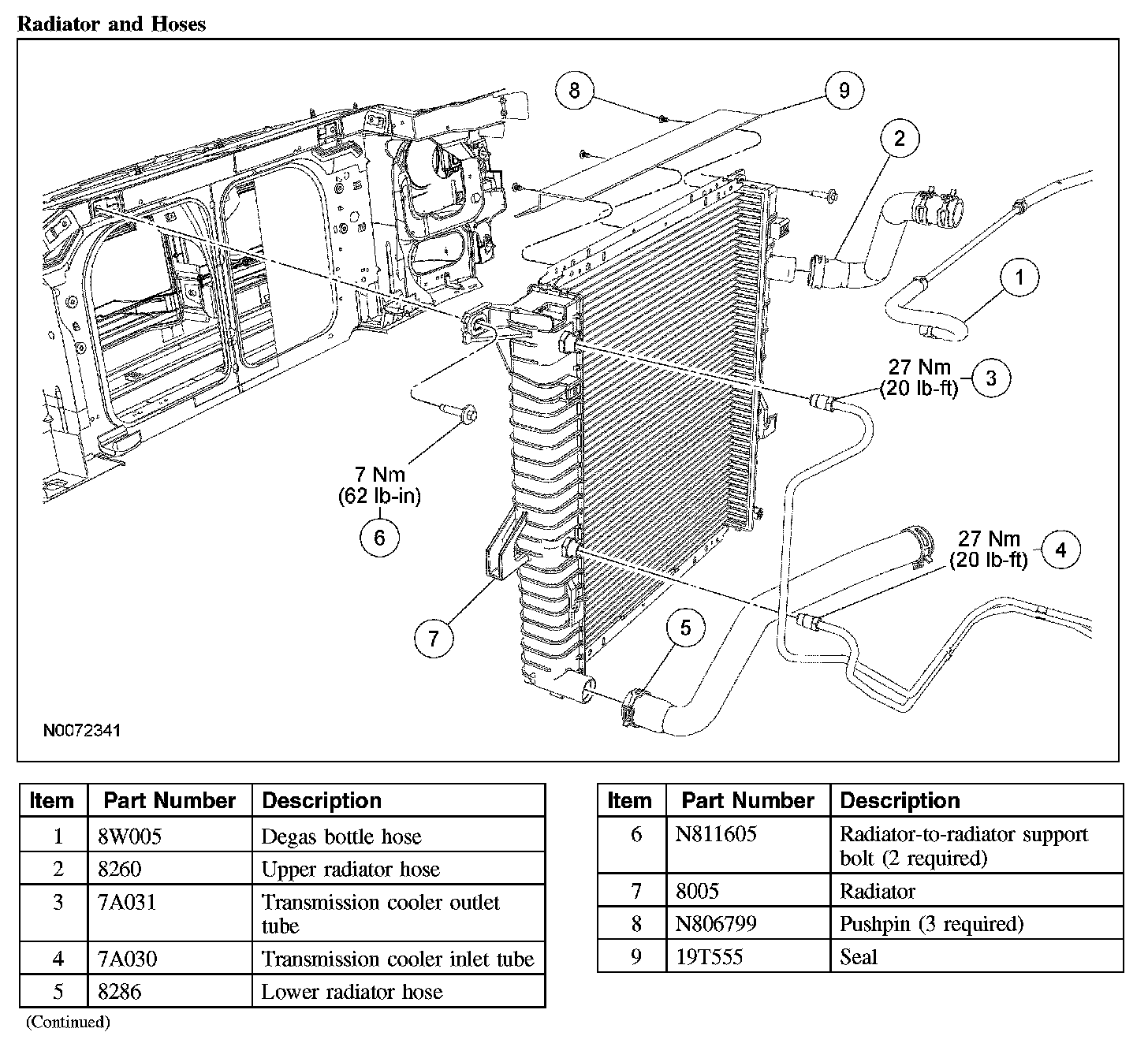

Radiator and Hoses

Radiator and Hoses:

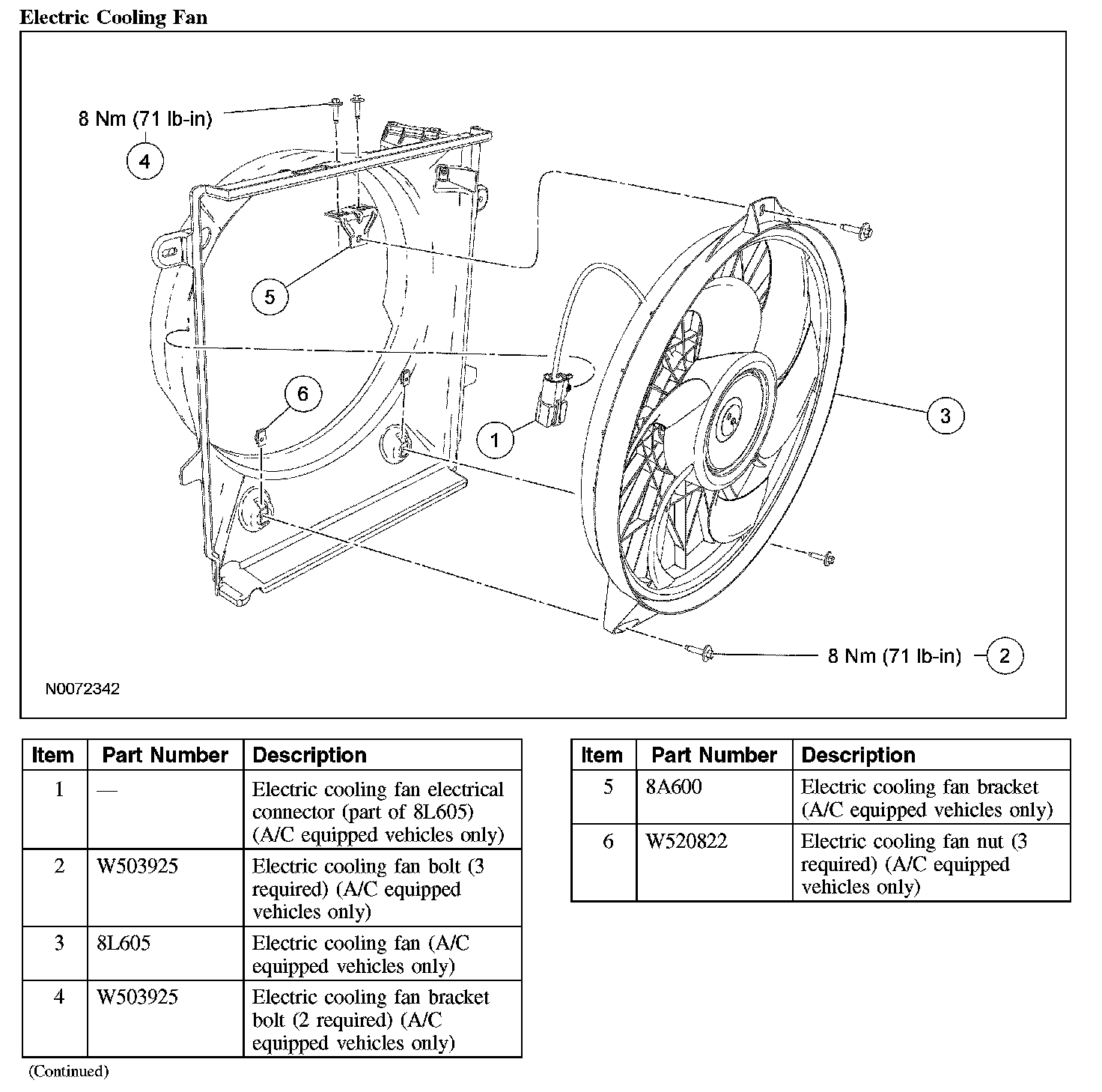

Electric Cooling Fan

Electric Cooling Fan:
