System Specifications

Timing Chain Tensioner Bolts 10 Nm (89 lb-inch)

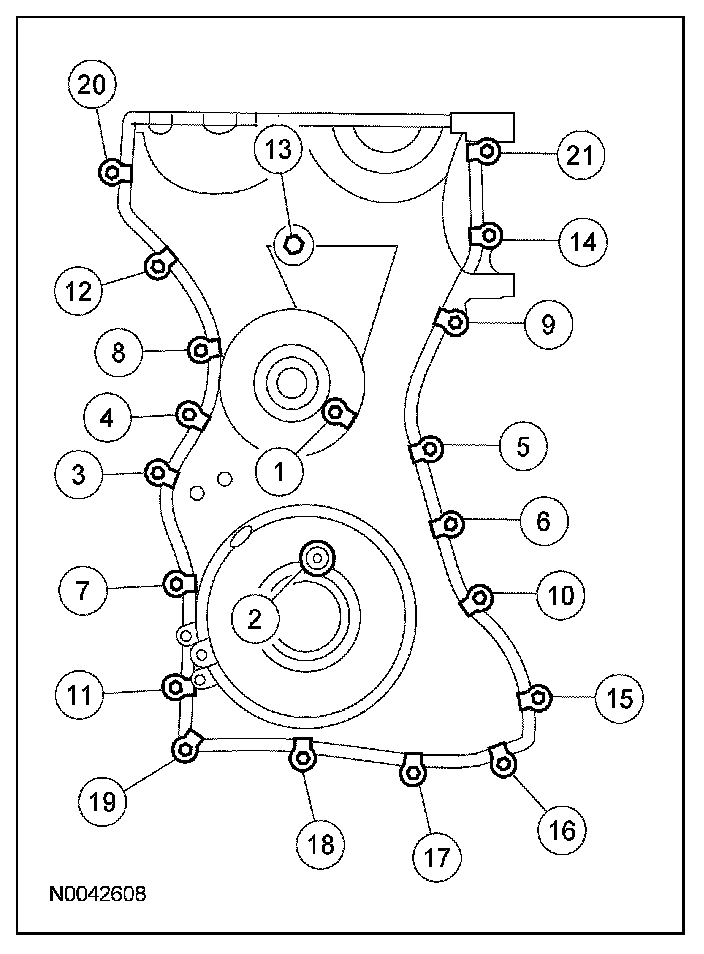

Front Cover Bolts





8 mm bolts 10 Nm (89 lb-inch)
10 mm bolts 25 Nm (18 lb-ft)
13 mm bolts 48 Nm (35 lb-ft)

Crankshaft Pulley Bolt

NOTE: Do not reuse the crankshaft pulley bolt.

Stage 1 100 Nm (74 lb-ft).
Stage 2 Rotate an additional 90 degrees.
