Flex Plate, A/T

NOTE: Engine balancing is not required. Balance weights should not be installed on the new flexplate.

NOTE: Special bolts are used for installation. Do not use standard bolts.

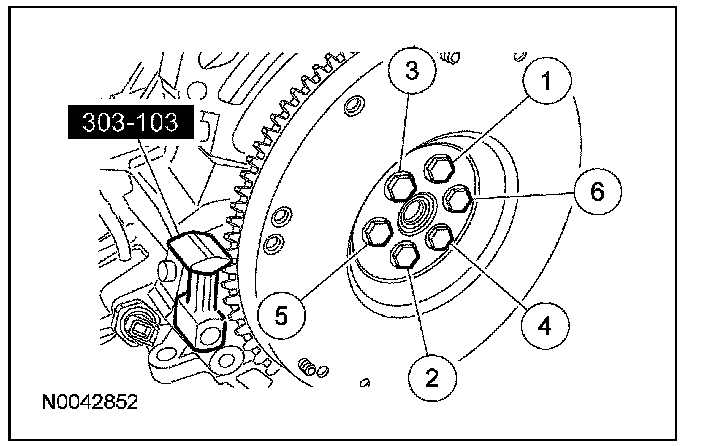

Using the special tool, install the bolts in the sequence shown, in 3 stages.
Stage 1 50 Nm (37 lb-ft)
Stage 2 80 Nm (59 lb-ft)
Stage 3 112 Nm (83 lb-ft)
