Exhaust System

Exhaust System - Exploded View

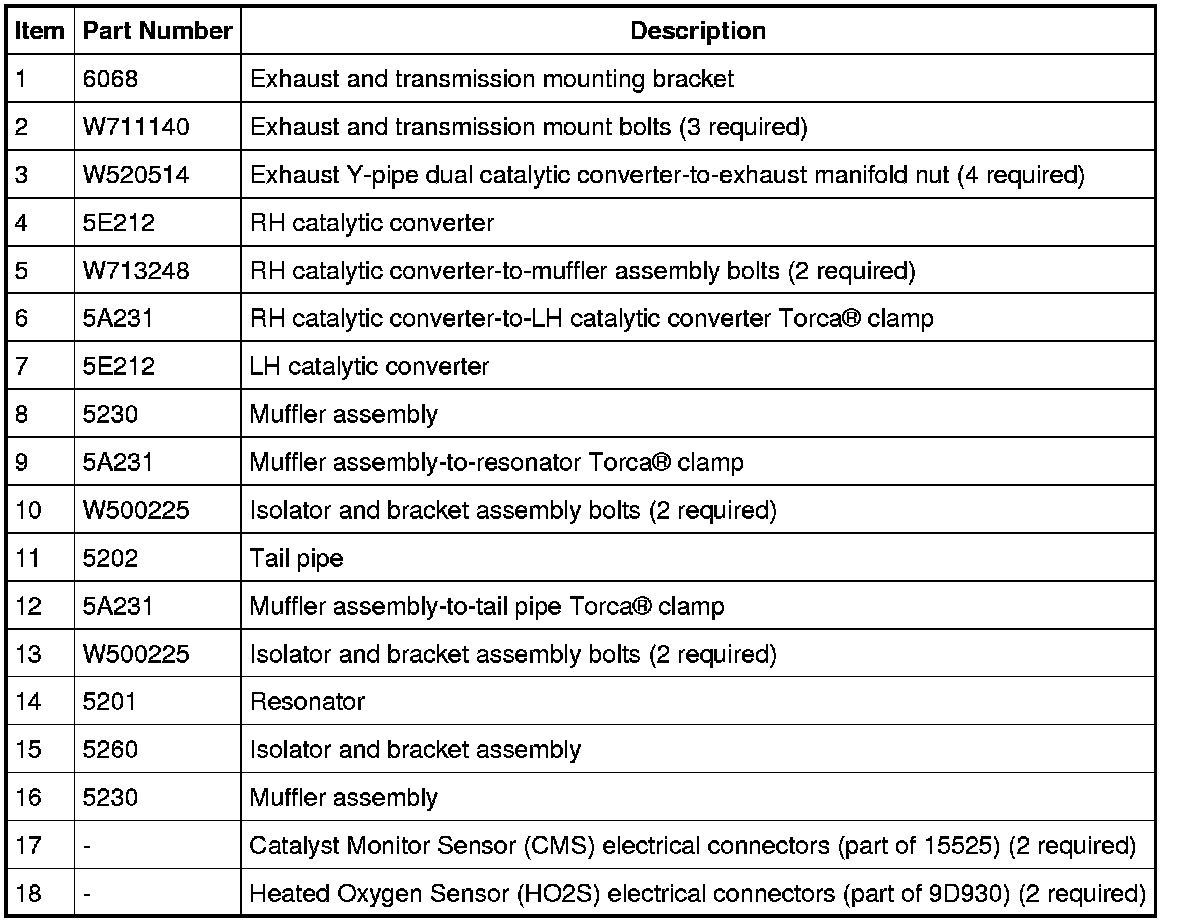

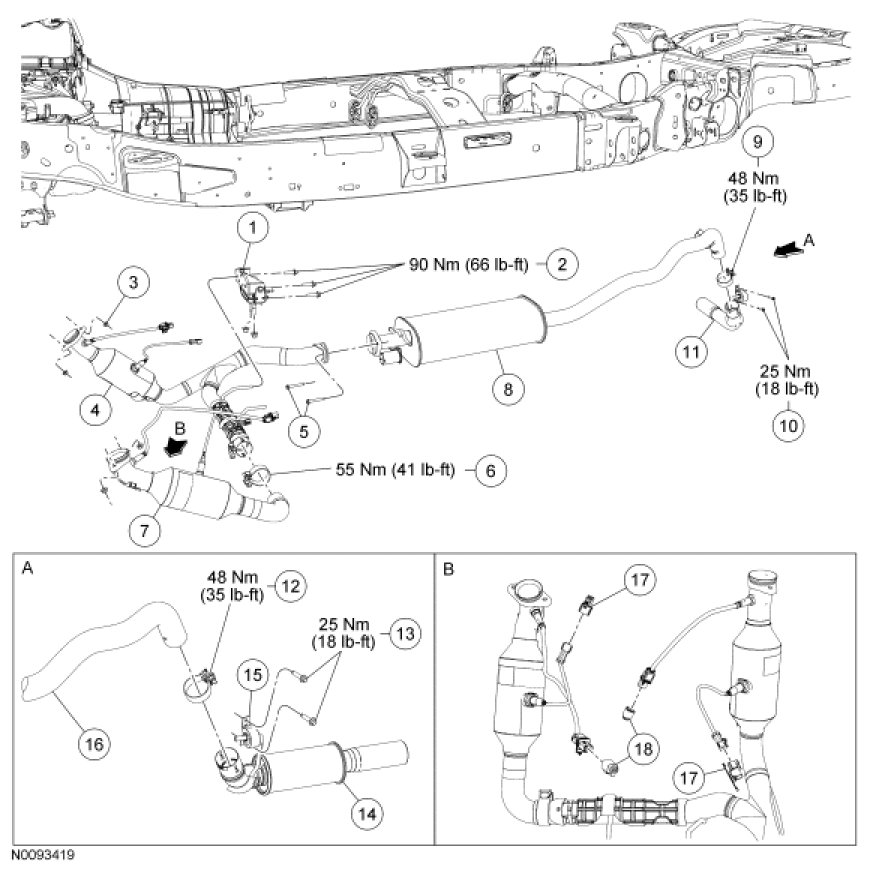

Expedition and Navigator

NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.

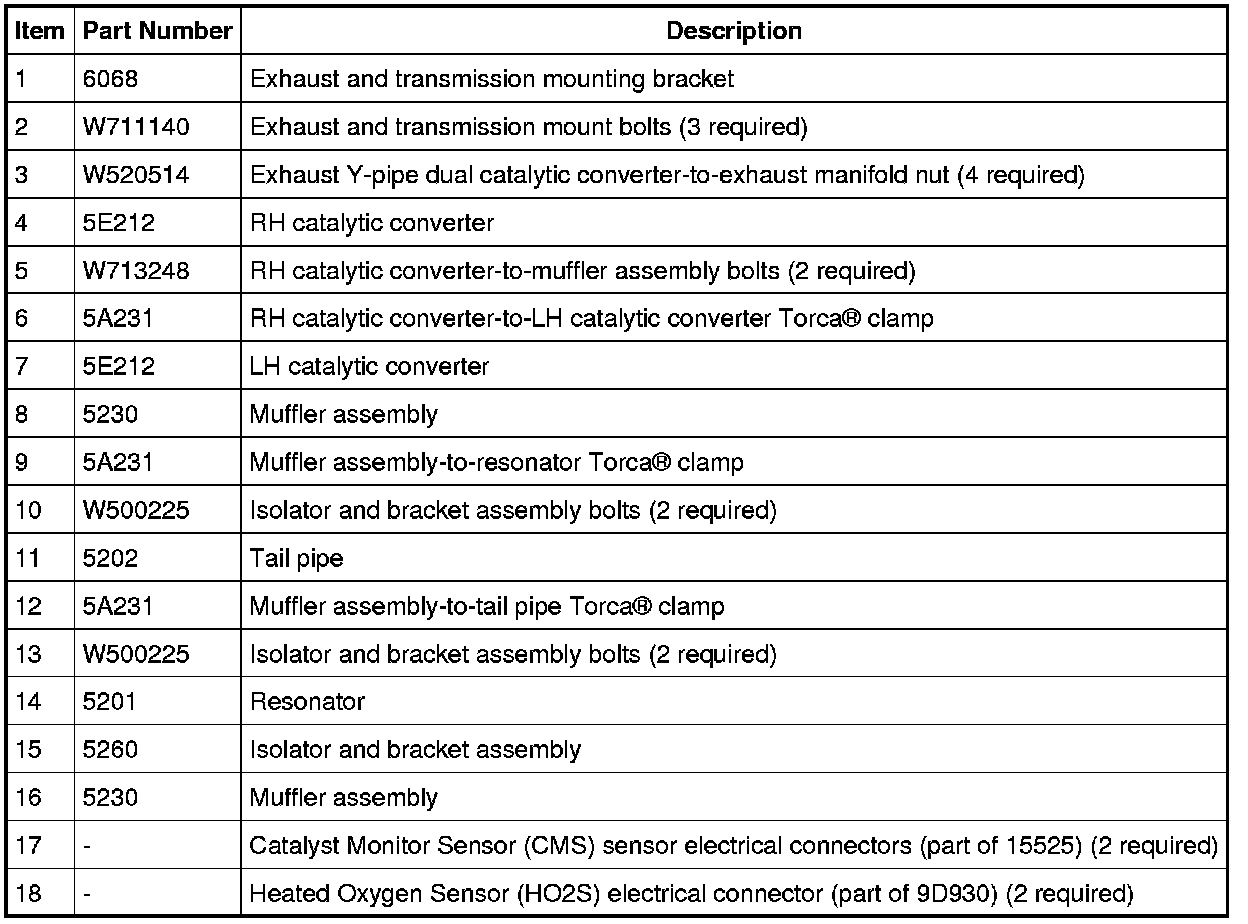

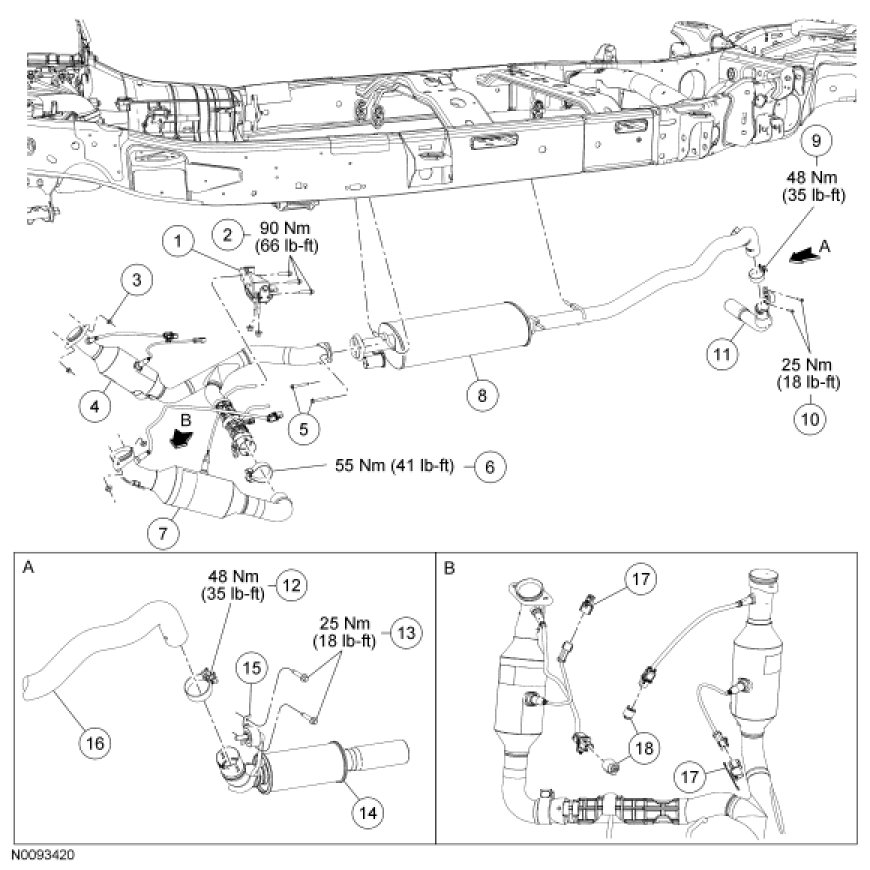

Expedition EL and Navigator L

NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.










1. For additional information, refer to the procedures.
