Power Running Board (PRB) Step

Power Running Board (PRB) Step

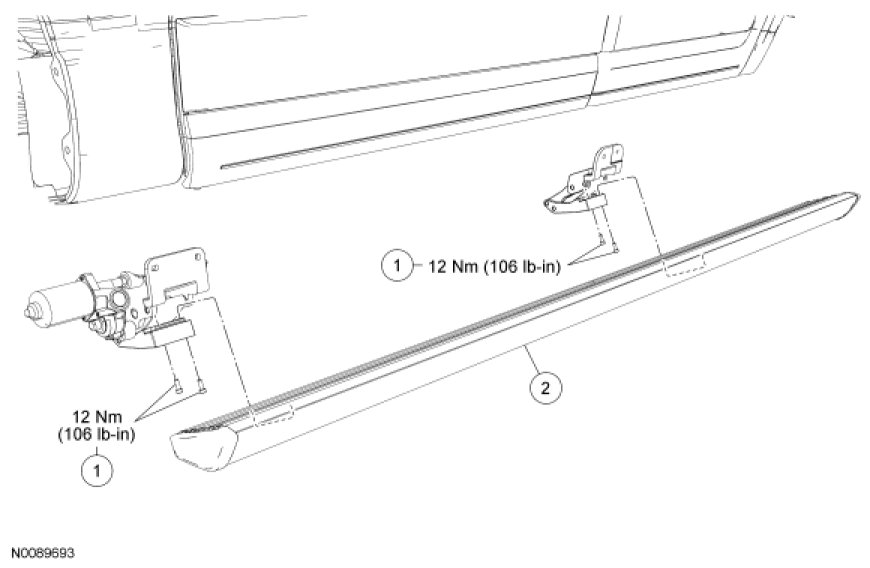

NOTE: LH shown, RH similar.










Removal and Installation

1. Extend the Power Running Board (PRB).

2. NOTICE: An assistant is required to hold the Power Running Board (PRB) before removing the bracket-to-step screws.

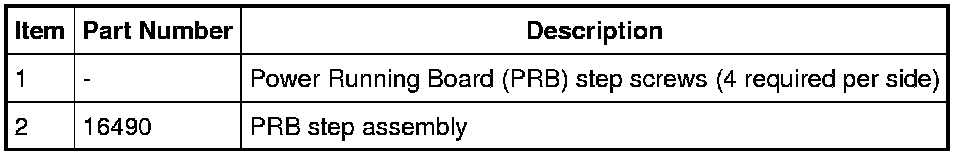

Remove the 2 front and 2 rear bracket-to-step screws and the PRB step.

- To install, tighten to 12 Nm (106 lb-in).





3. To install, reverse the removal procedure.
