Home
>>
Ford Truck
>>
2009
>>
Ranger 2WD L4-2.3L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
Symptom Related Diagnostic Procedures
Locks, Latches and Entry Systems
Symptom Chart

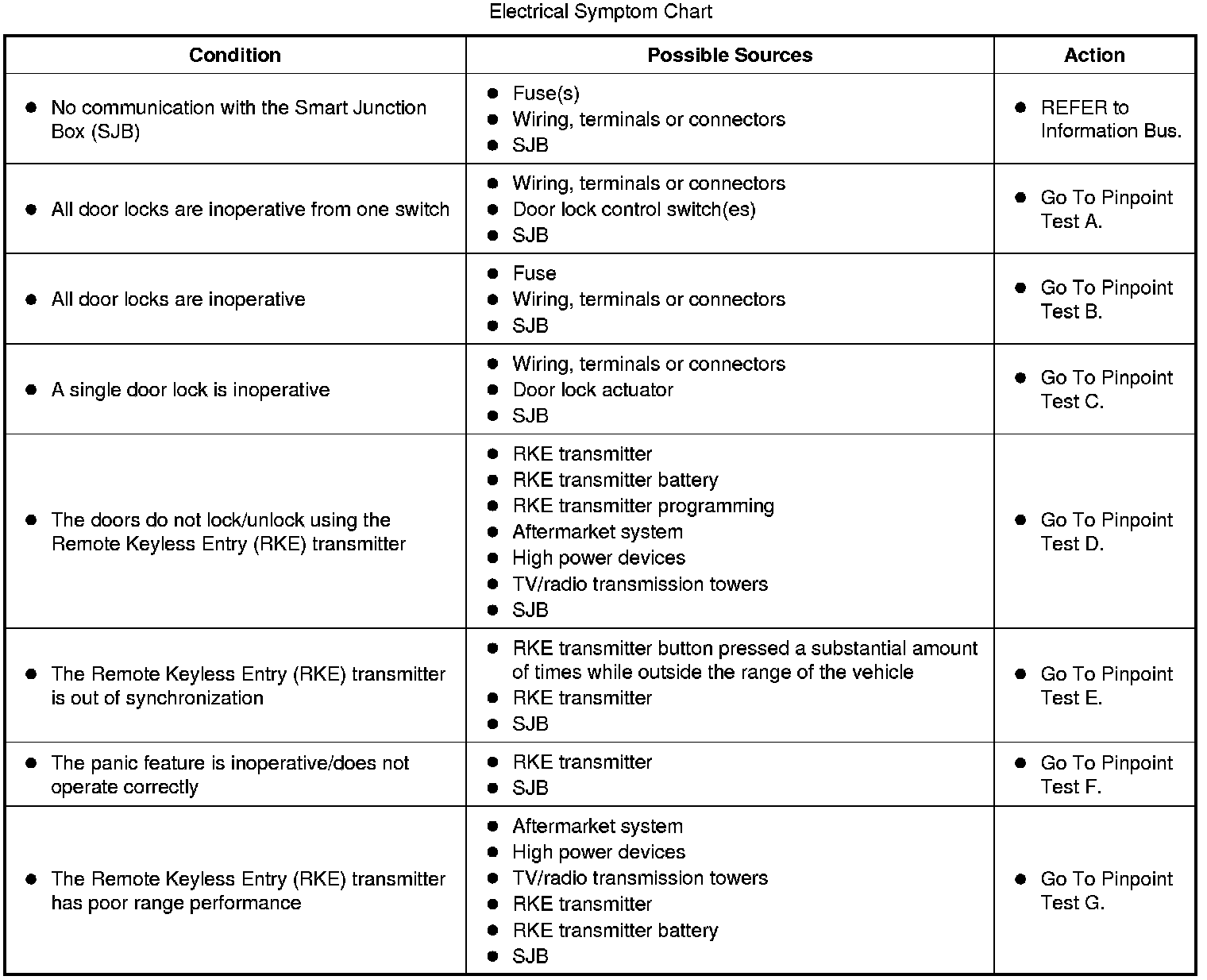

Electrical Symptom Chart:

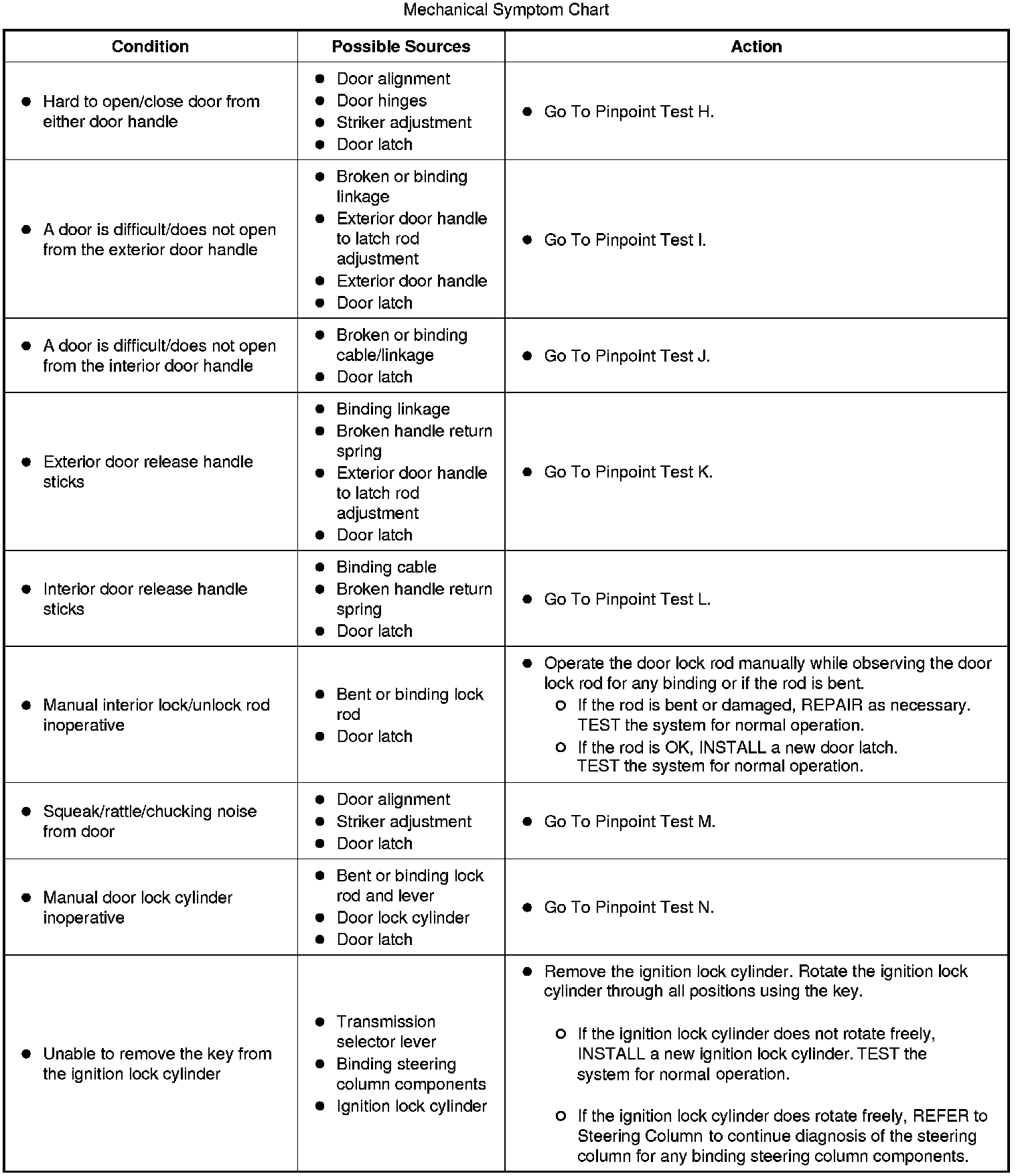

Mechanical Symptom Chart:
