Seat Temperature Control Module: Service and Repair
Seat - Exploded View, Front

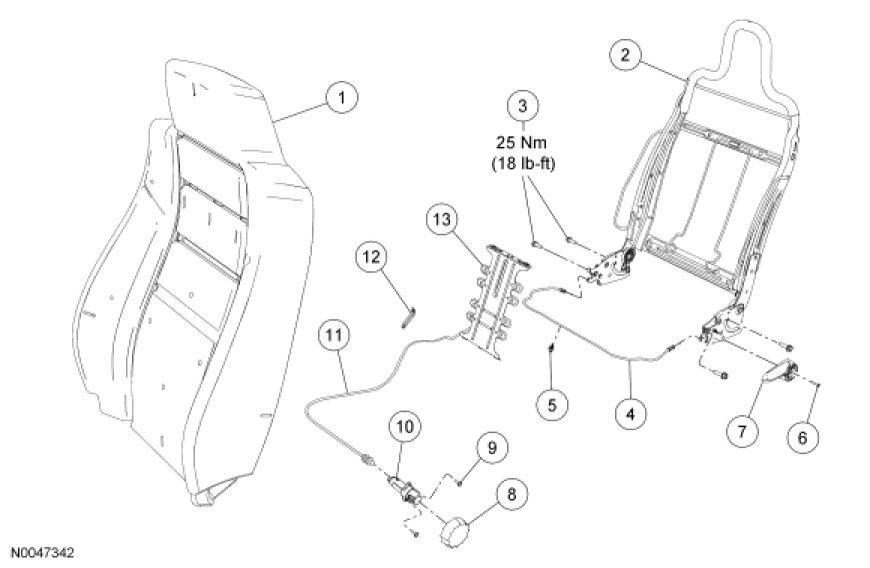

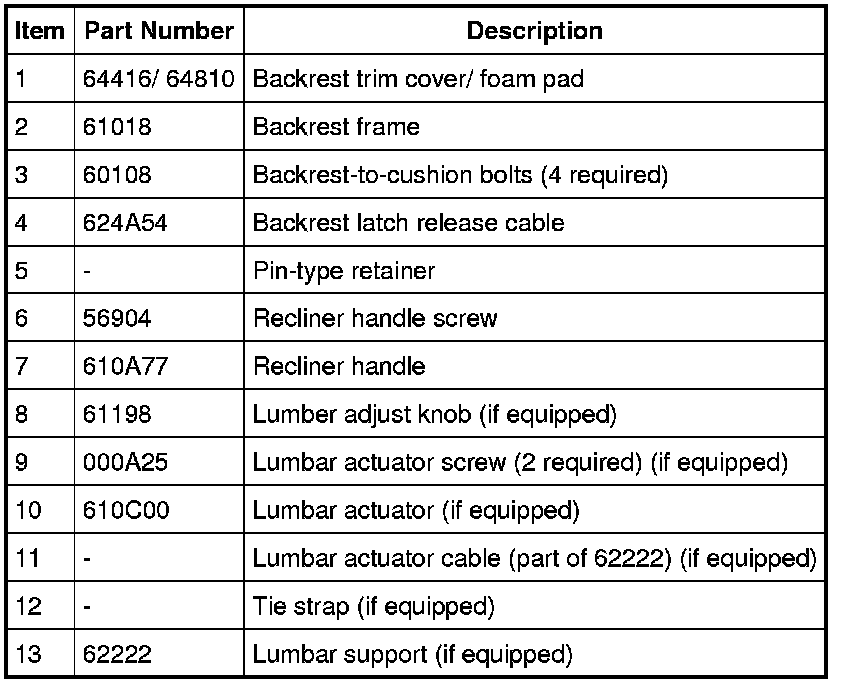

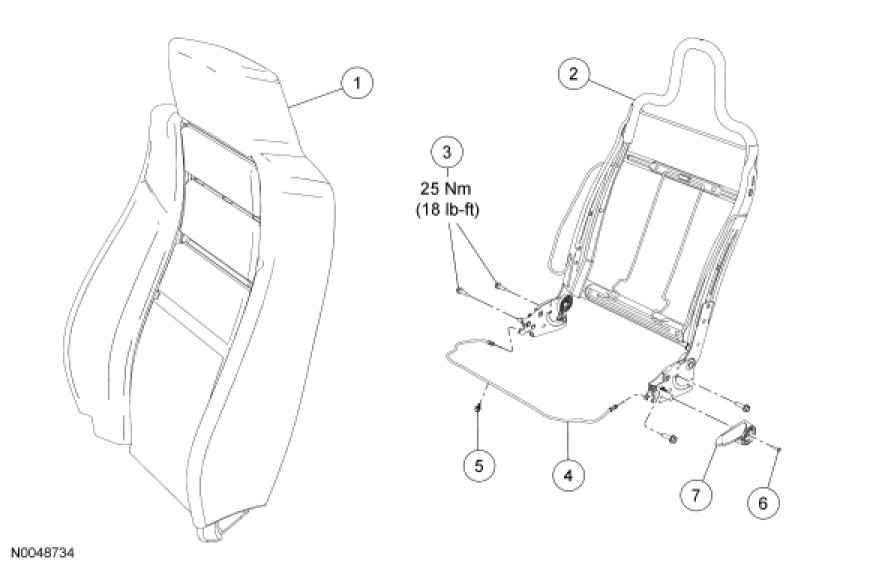

Seat Backrest, Front, 40 Percent
NOTE: Driver shown, passenger similar.

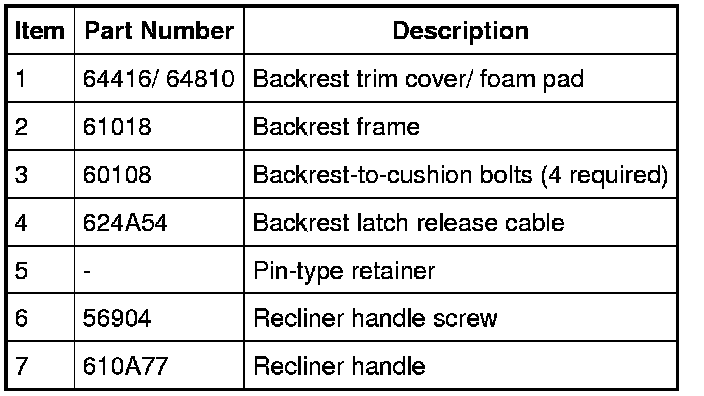

Seat Backrest, Front, 60 Percent

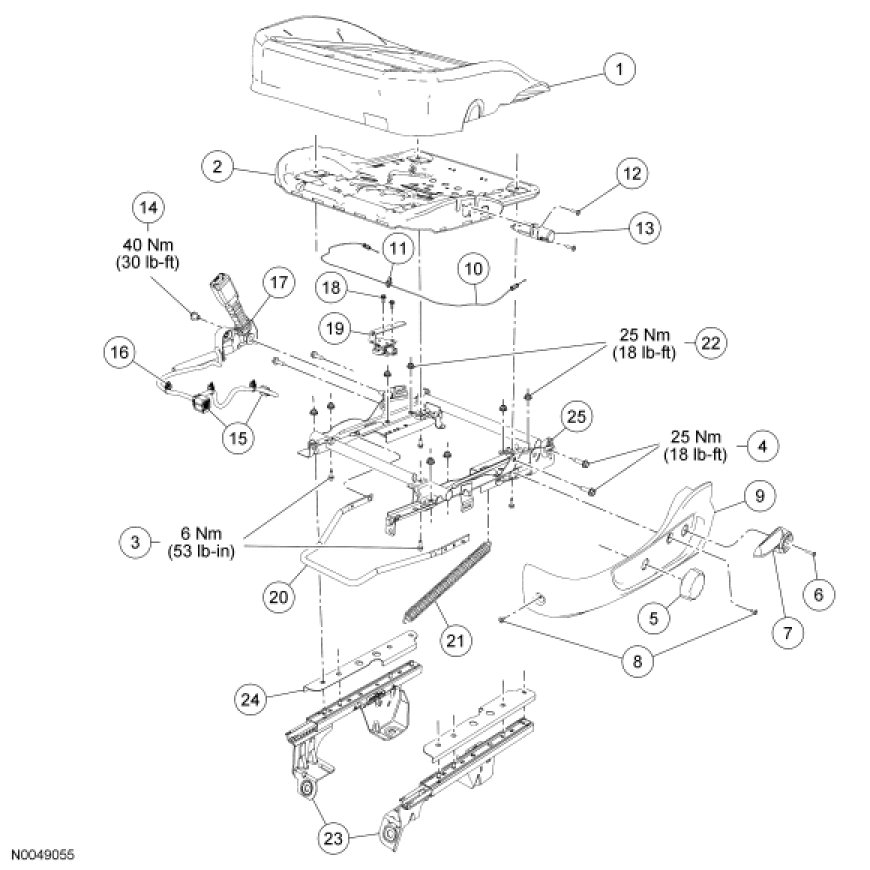

Seat Cushion, Front, 60 Percent

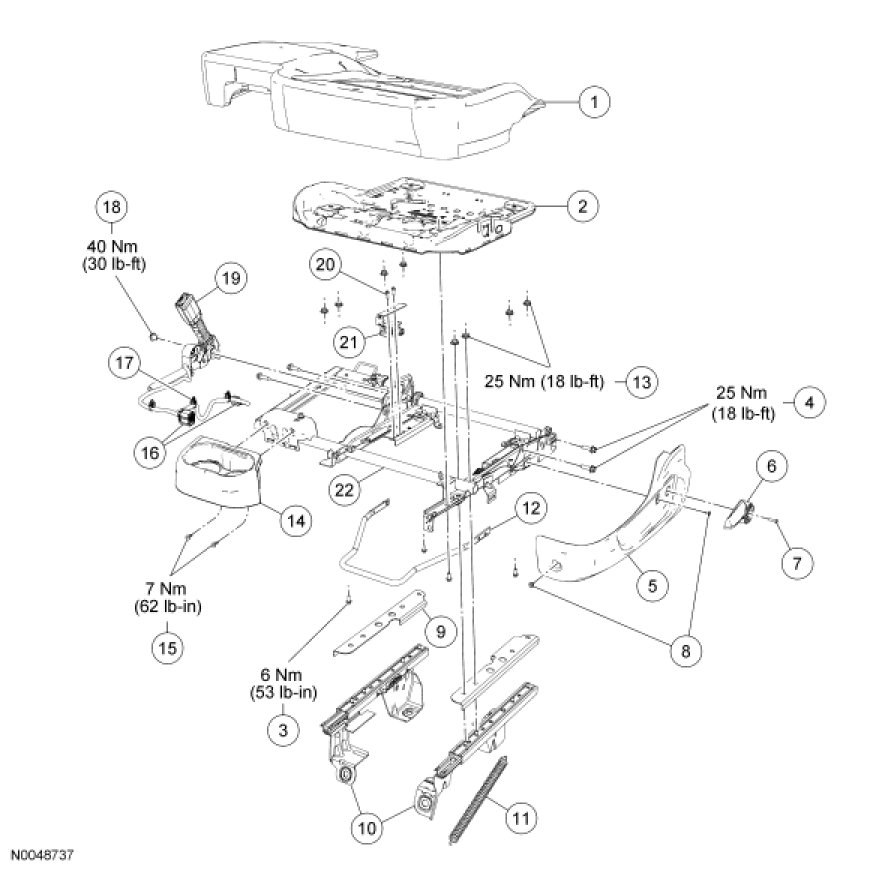

Seat Cushion, Driver, 40 Percent

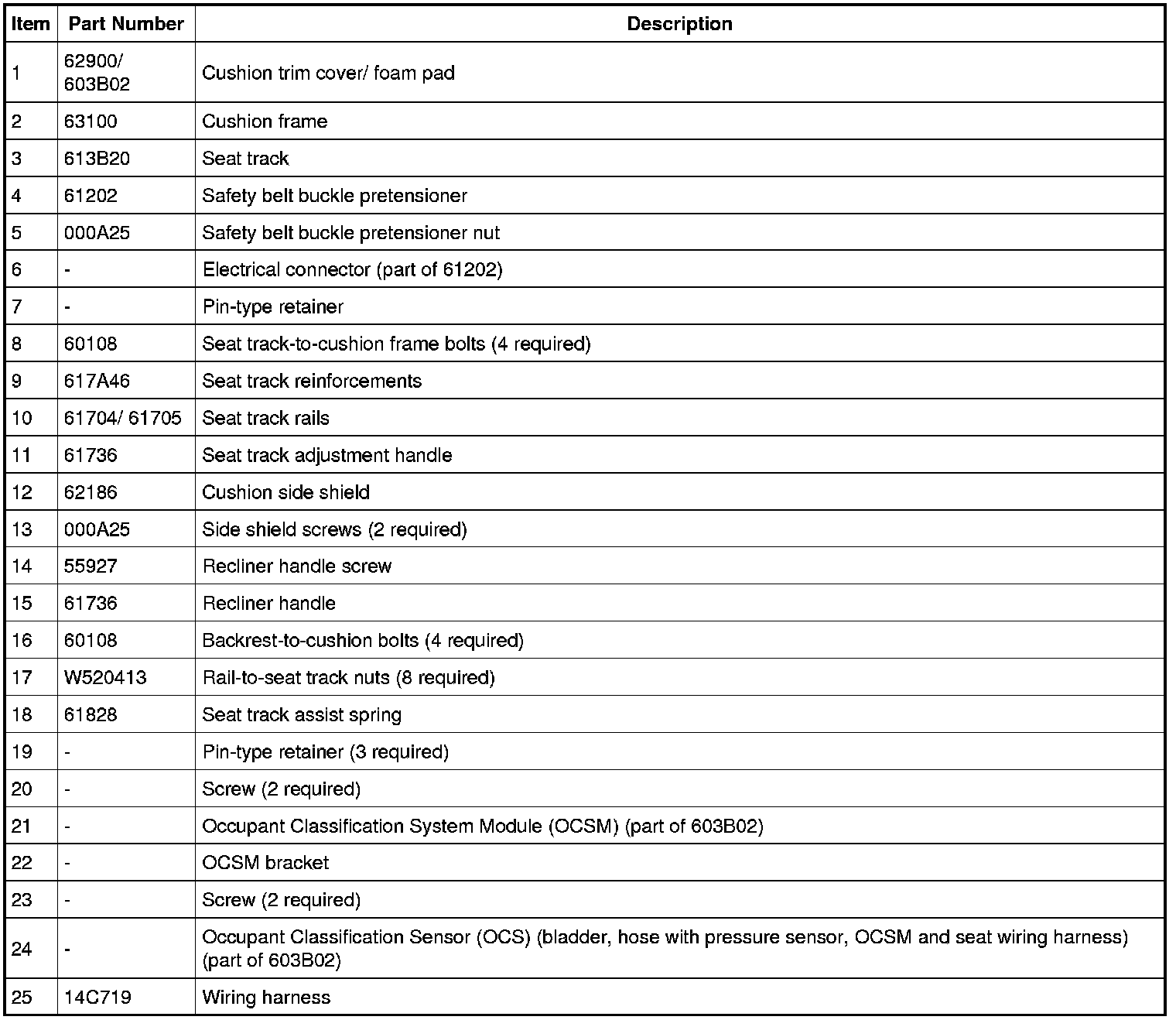

Seat Cushion, Front Passenger

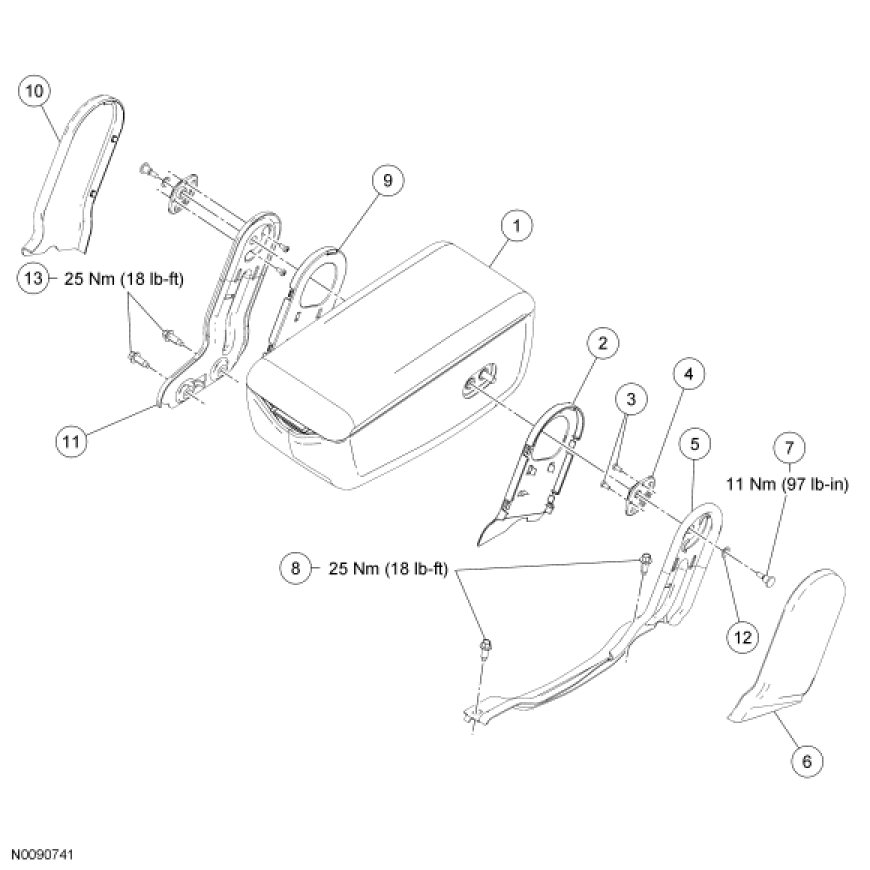

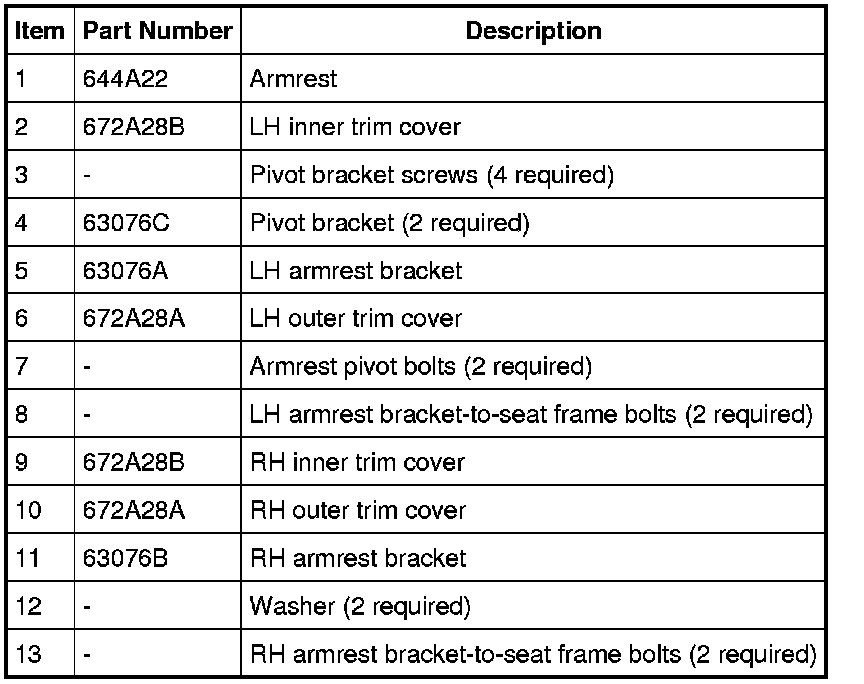

Seat Armrest, Front, 60 Percent
1. For additional information, refer to the procedures.
