Speed Control Switch

Speed Control Switch

Removal and Installation

1. Remove the steering wheel.

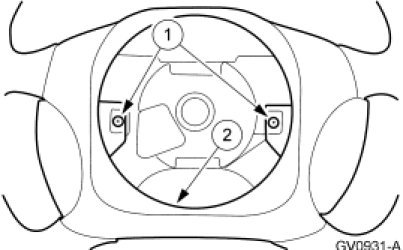

2. Remove the steering wheel rear cover.

1. Remove the 2 screws.

2. Remove the steering wheel rear cover.

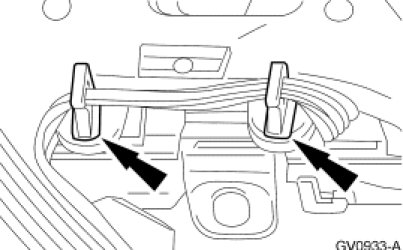

3. Remove the ribbon harness from the clips.

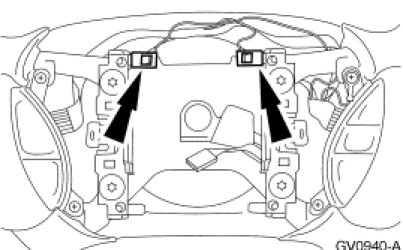

4. Disconnect the horn contact electrical connectors.





5. Remove the right side horn contact.

1. Remove the 2 screws.
- To install, tighten to 7 Nm (62 lb-in).

2. Remove the horn contact.

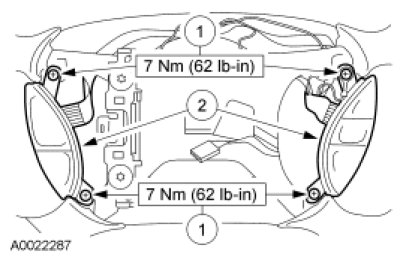

6. Remove the speed control switch assembly.

1. Remove the 4 screws.
- To install, tighten to 7 Nm (62 lb-in).

2. Remove the speed control switch assembly.





7. To install, reverse the removal procedure.
