Engine Lubrication Components - Exploded View




Engine Lubrication Components - Exploded View

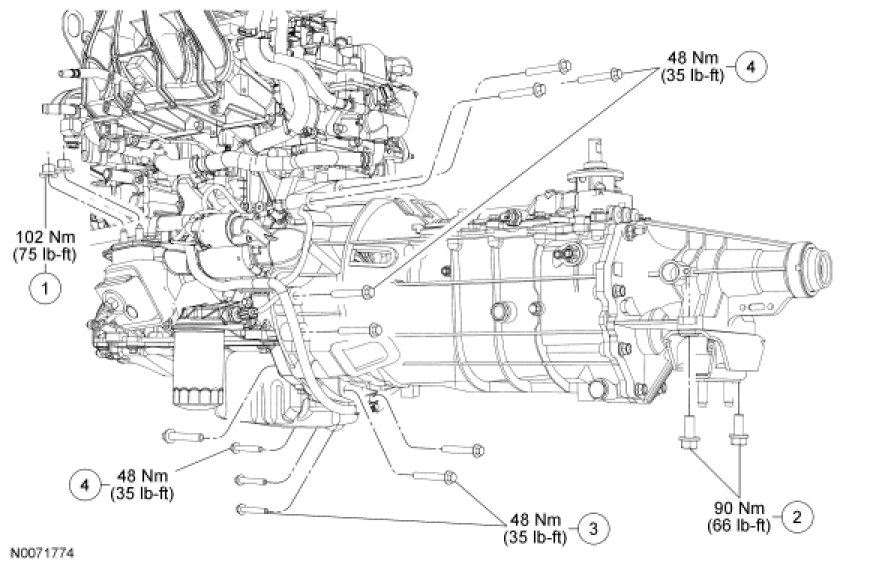

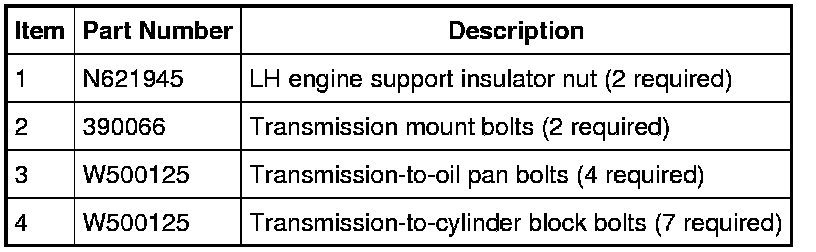

Engine and Transmission Mounts and Fasteners

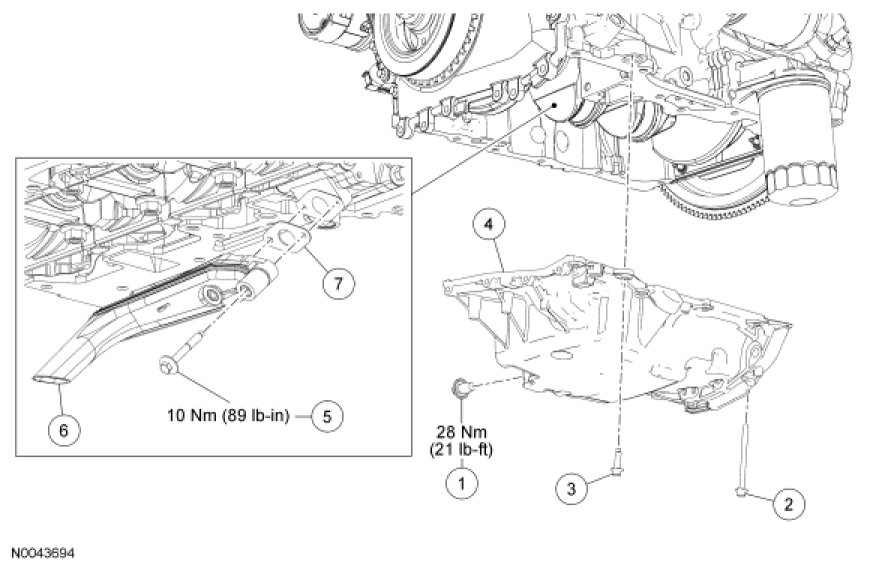

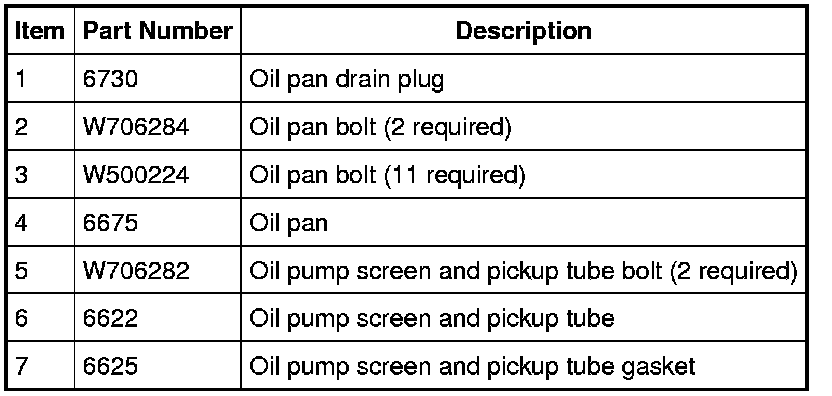

Oil Pan, Oil Pump Screen and Pickup Tube

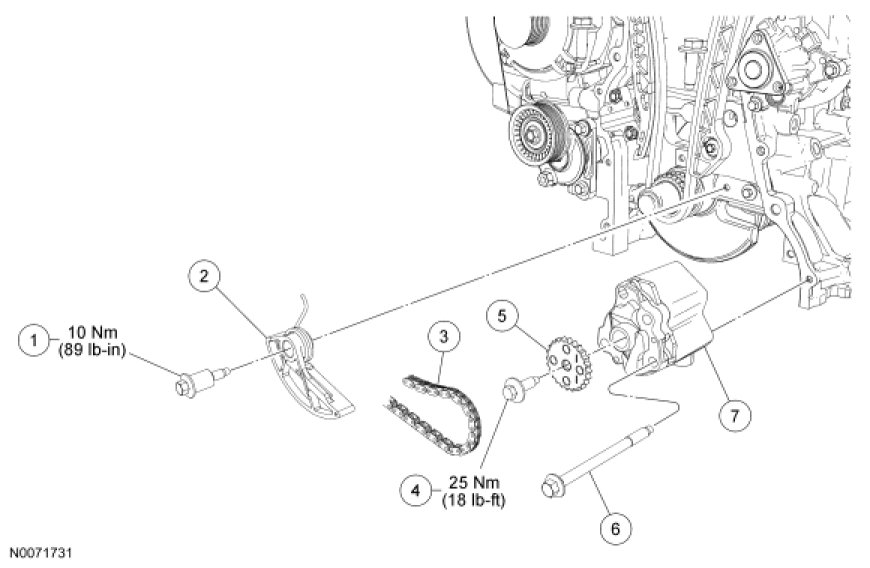

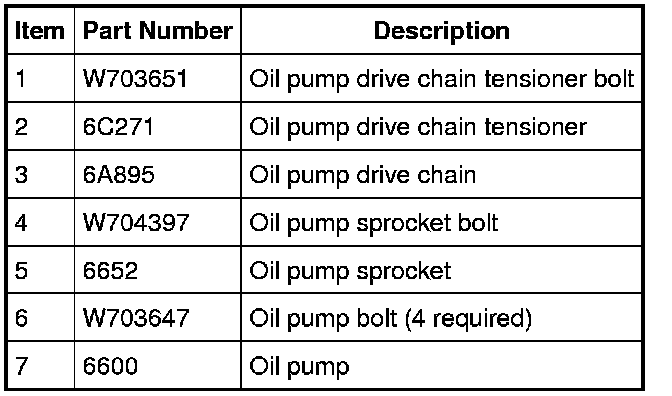

Oil Pump









1. For additional information, refer to the procedures.
