Drive Belt: Diagrams




Accessory Drive

Accessory Drive Belt Routing

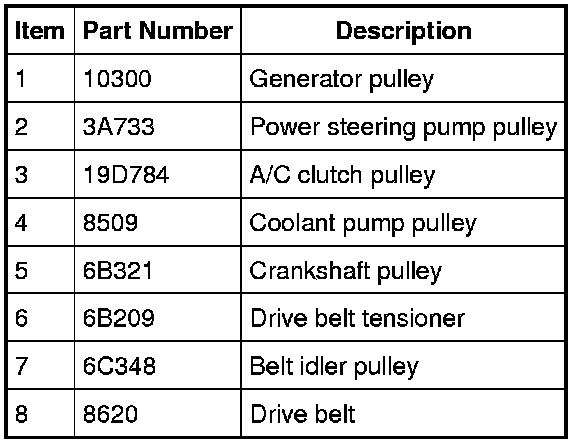

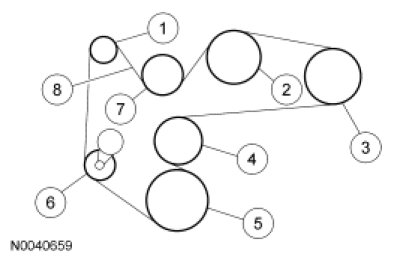

Front End Accessory Drive (FEAD) - 2.3L With A/C

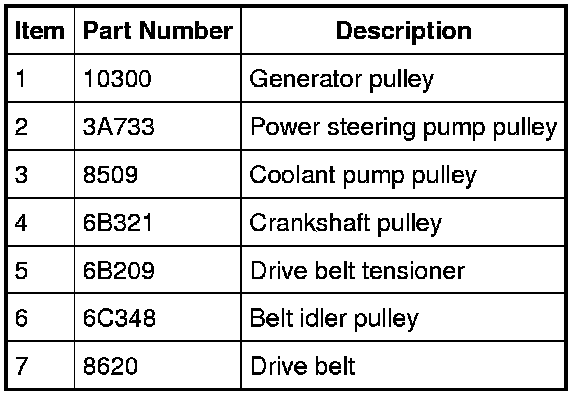

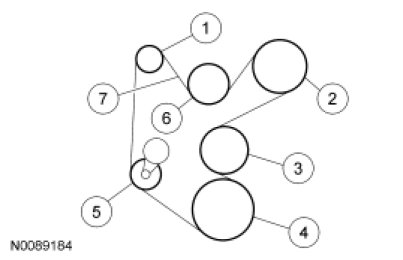

Front End Accessory Drive (FEAD) - 2.3L Without A/C

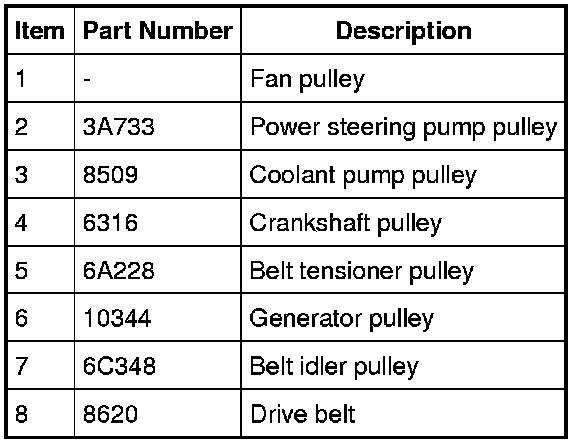

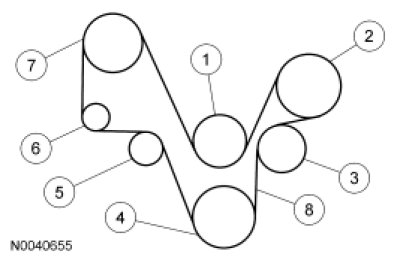

Front End Accessory Drive (FEAD) - 4.0L Without A/C

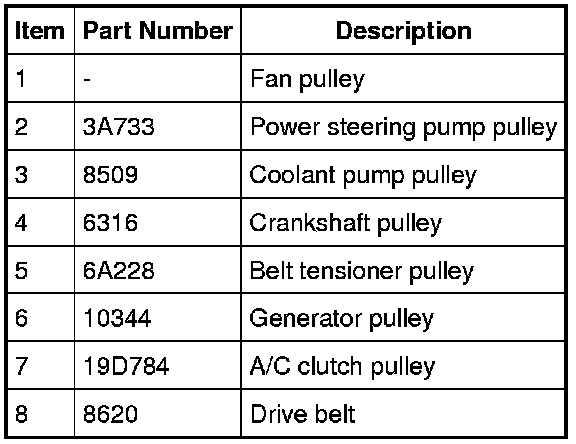

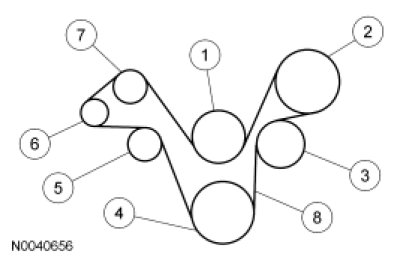

Front End Accessory Drive (FEAD) - 4.0L With A/C
