Drive Belt: Service and Repair

Front End Accessory Drive (FEAD) - Exploded View

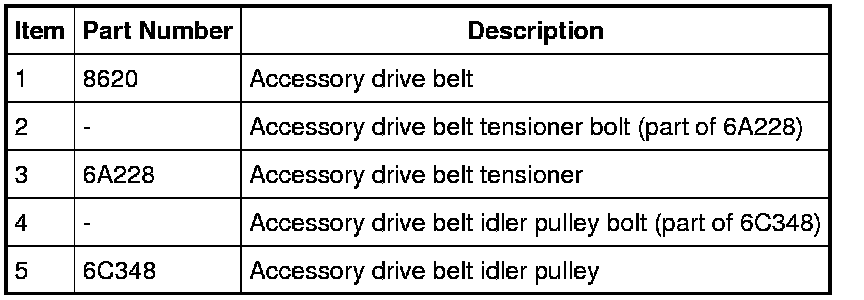

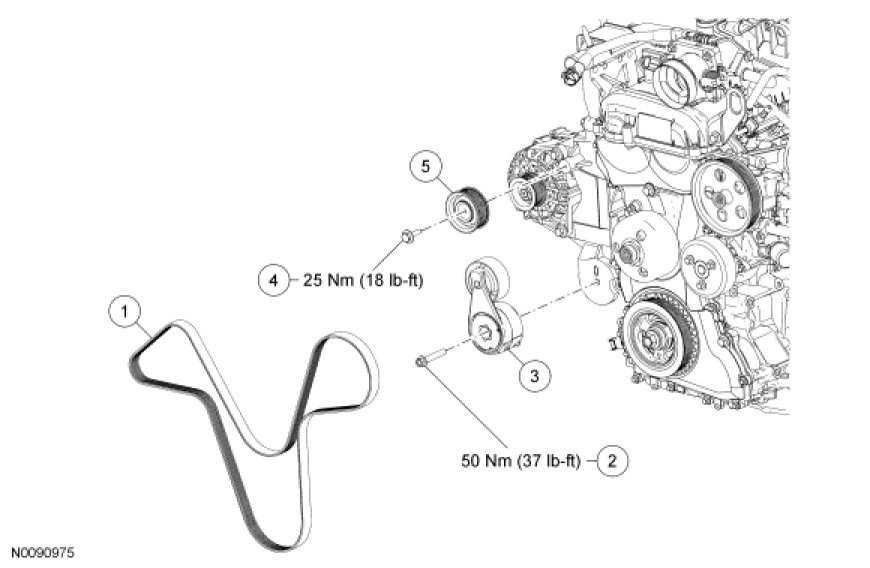

Front End Accessory Drive (FEAD) Exploded View - 2.3L with A/C

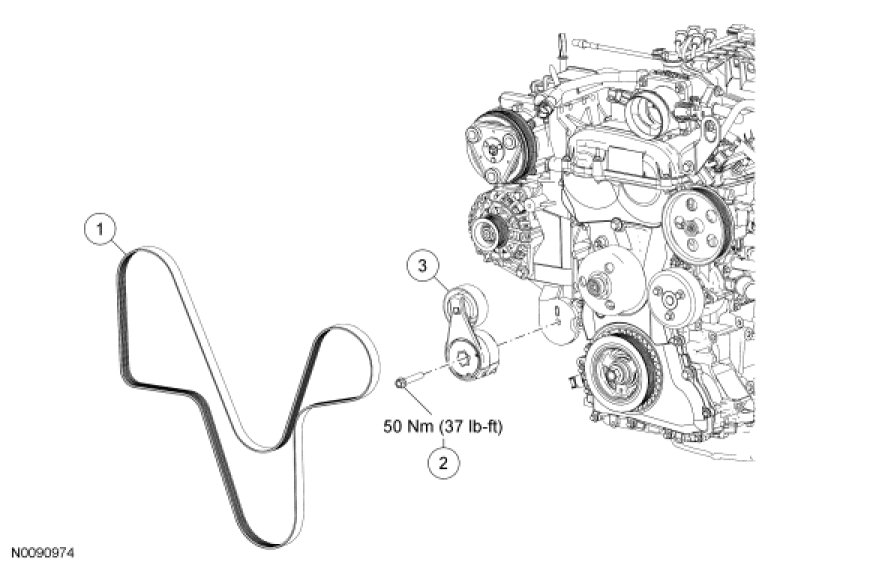

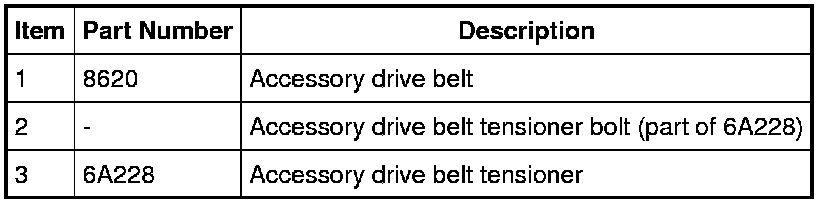

Front End Accessory Drive (FEAD) Exploded View - 2.3L without A/C










Front End Accessory Drive (FEAD) Exploded View - 4.0L without A/C

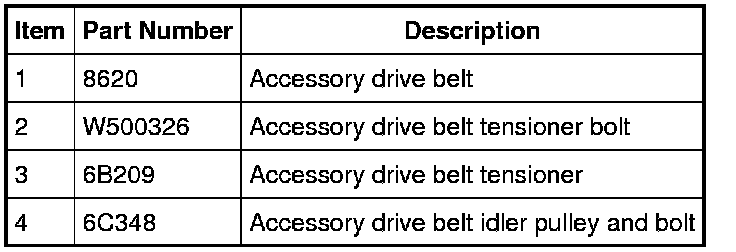

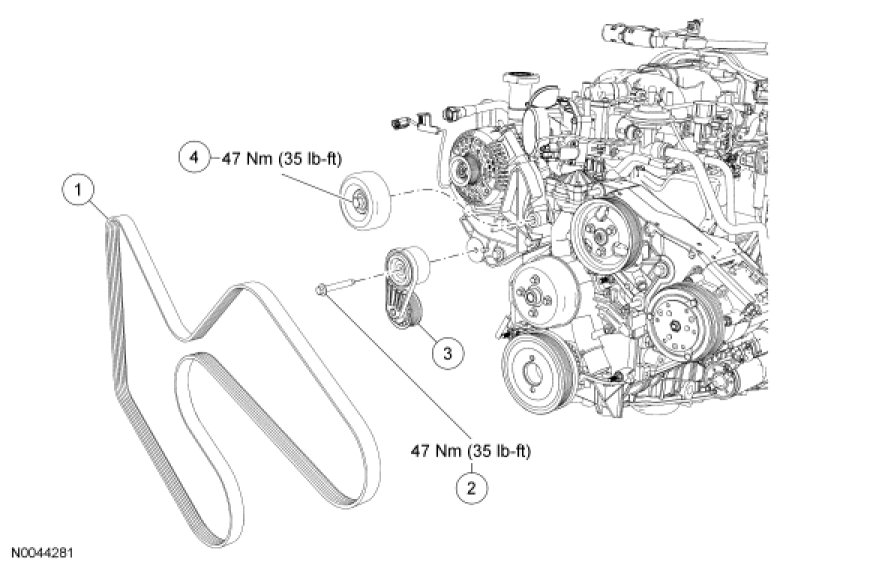

Front End Accessory Drive (FEAD) Exploded View - 4.0L with A/C









1. For additional information, refer to the procedures.
