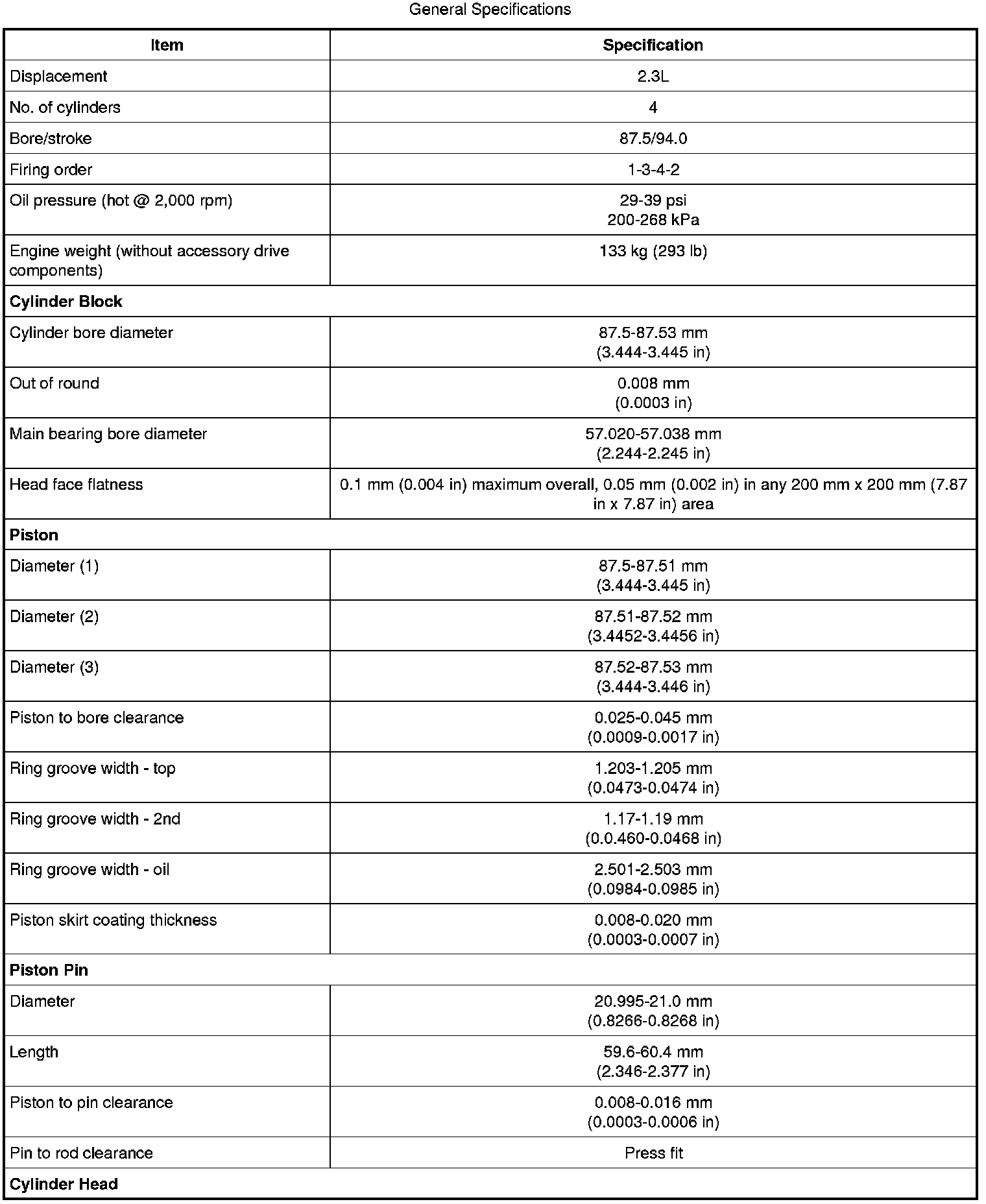

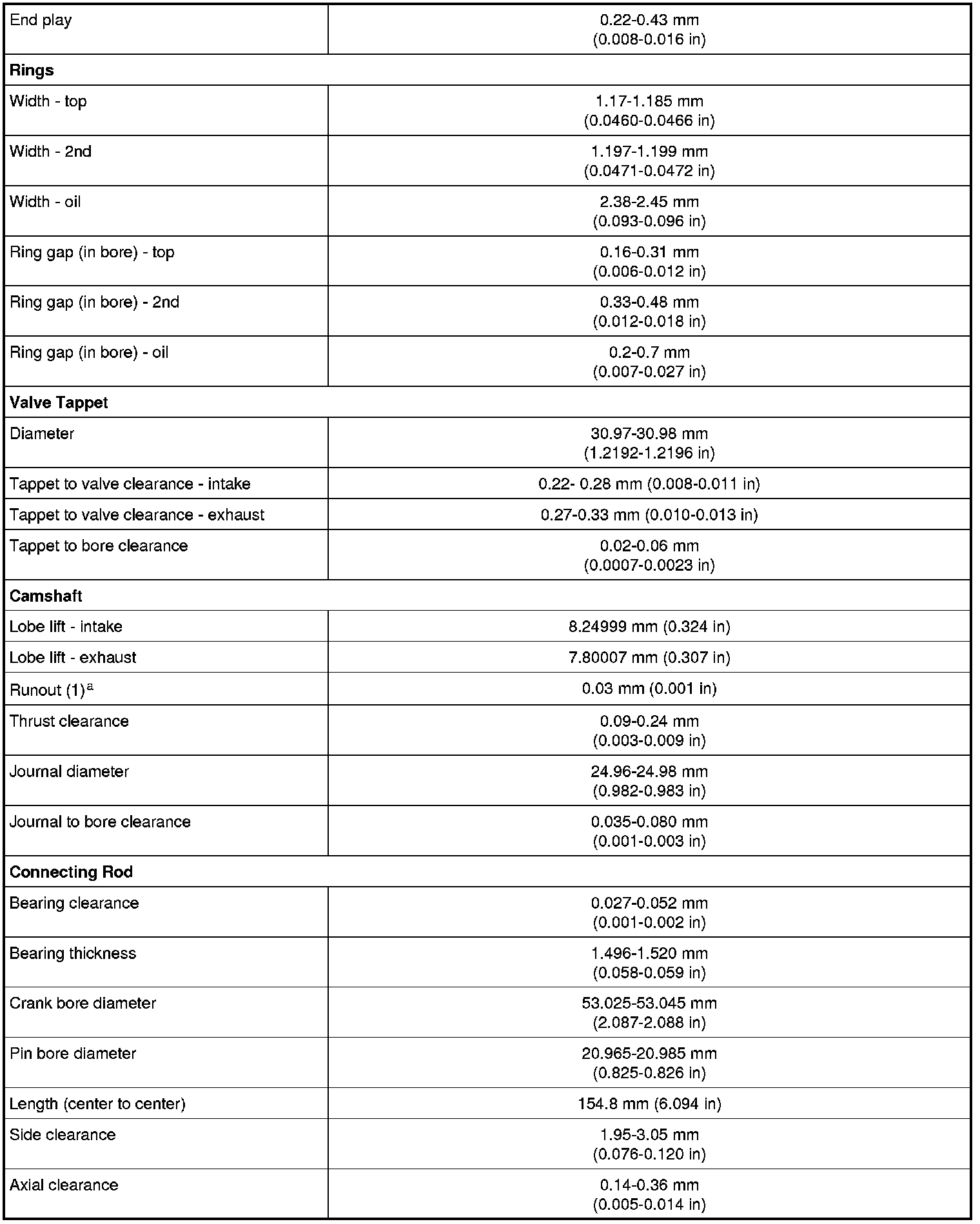

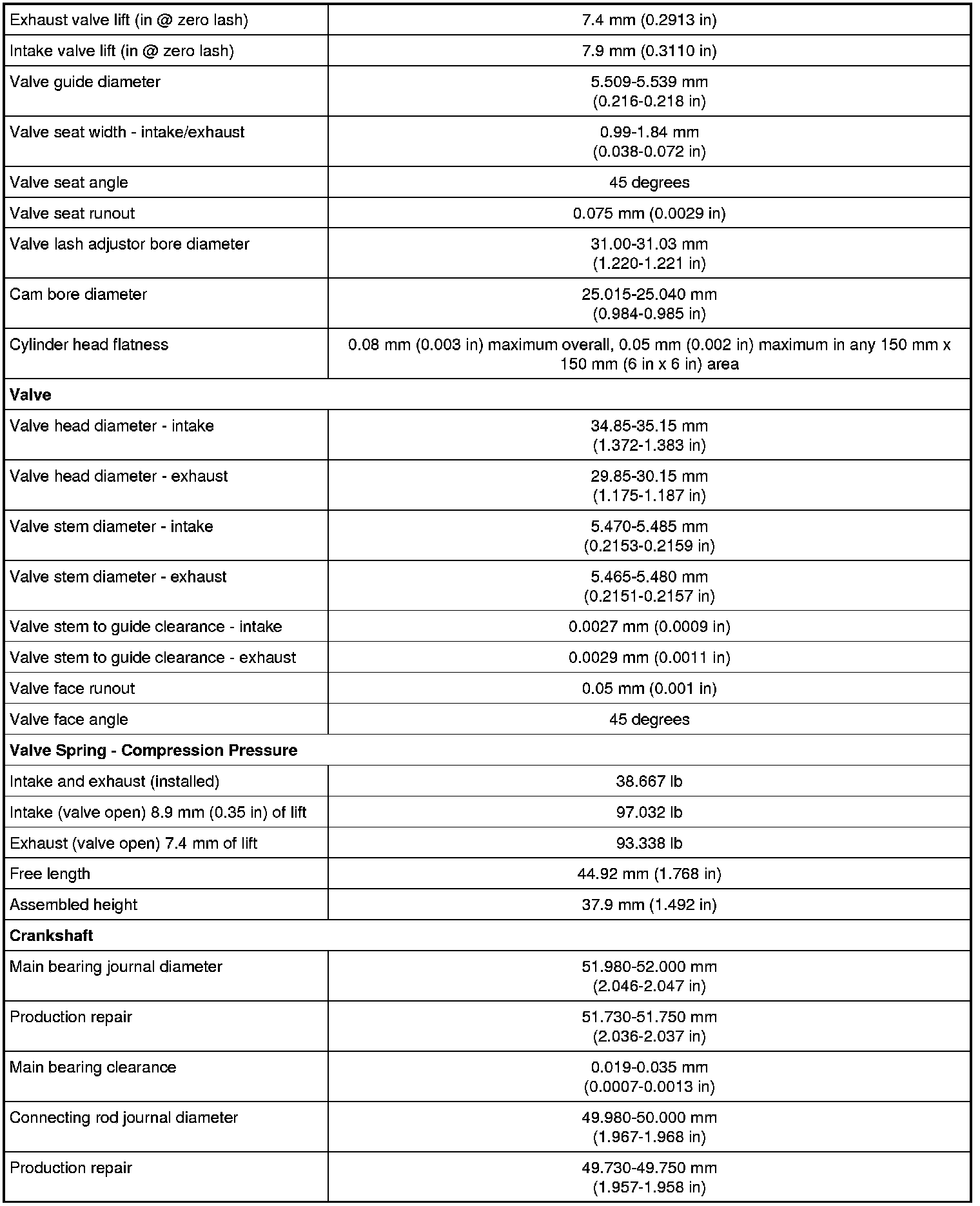

System Specifications

a No. 3 Journal - Supported by No. 1 and No. 5 Journals.
All dimensions are in mm unless noted.

CRANKSHAFT PULLEY TORQUE

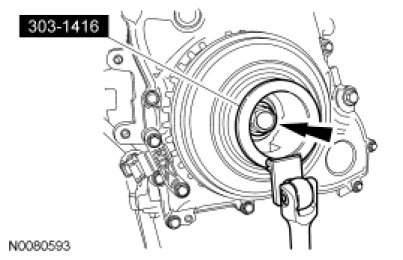

Install a new crankshaft pulley bolt. Using the Crankshaft Damper Holding Tool and a suitable 1/2-in drive hand tool to hold the crankshaft pulley in place, tighten the crankshaft pulley bolt in 2 stages:
Stage 1: Tighten to 100 Nm (74 lb-ft).
Stage 2: Rotate an additional 90 degrees.
