Valve Train Components - Exploded View




Valve Train Components - Exploded View

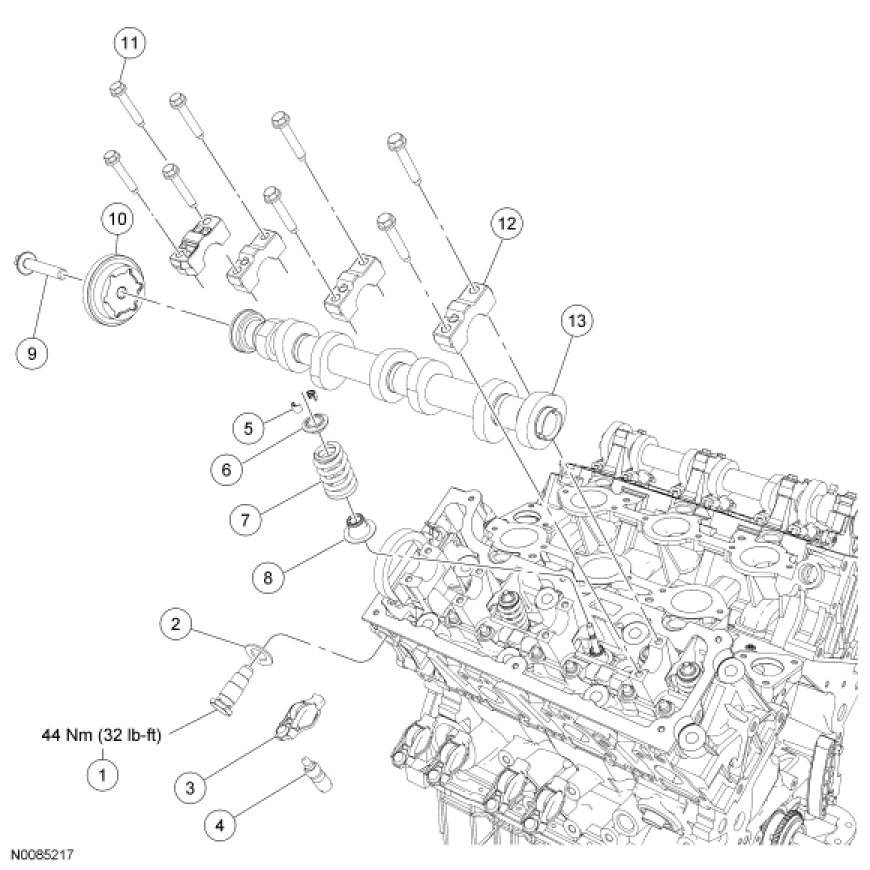

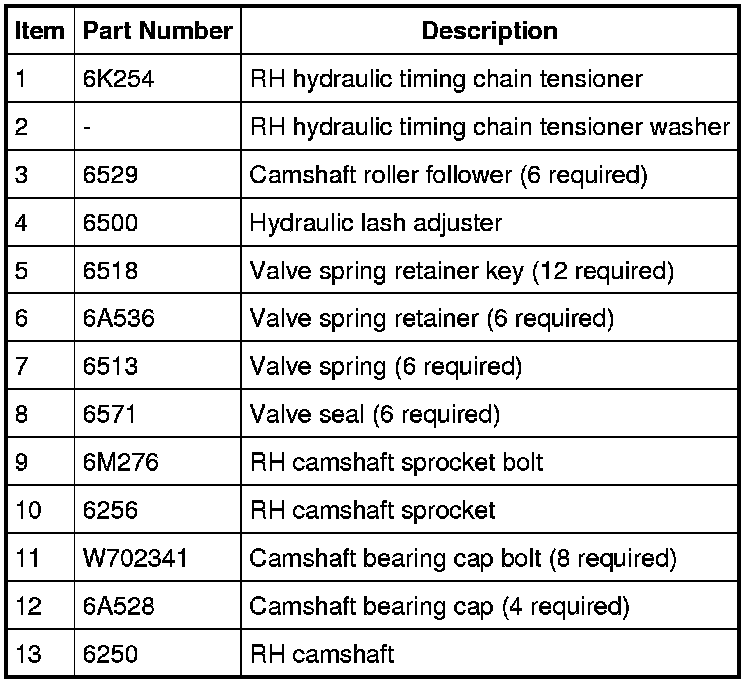

RH Valve Train Components

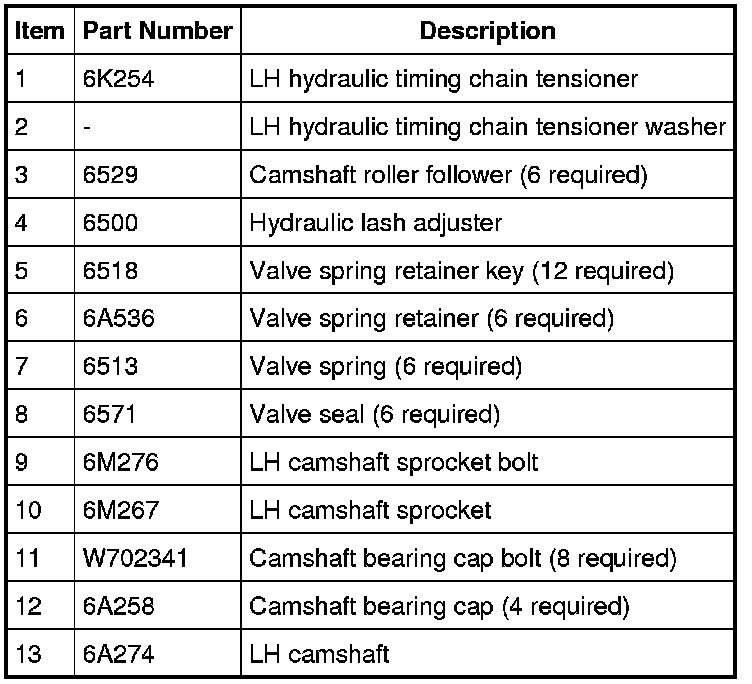

LH Valve Train Components









1. For additional information, refer to the procedures.
