System Specifications
Timing Chain TensionerInstall a new washer and the LH timing chain tensioner.
Tighten to 44 Nm (32 lb-ft).
Install a new washer and the RH timing chain tensioner.
Tighten to 44 Nm (32 lb-ft).
Crankshaft Pulley/Timing Gear Mounting Bolt

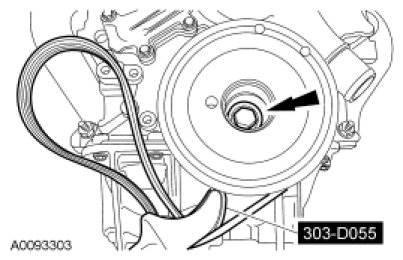

Using the Strap Wrench to hold the crankshaft pulley, install a new crankshaft pulley bolt and washer. Tighten the bolt in 2 stages.
Stage 1: Tighten to 55 Nm (41 lb-ft).
Stage 2: Tighten an additional 85 degrees.
Timing Cover
Position the engine front cover and install the 5 bolts and 5 stud bolts.
Tighten to 19 Nm (168 lb-in).
