Headliner: Service and Repair

Headliner

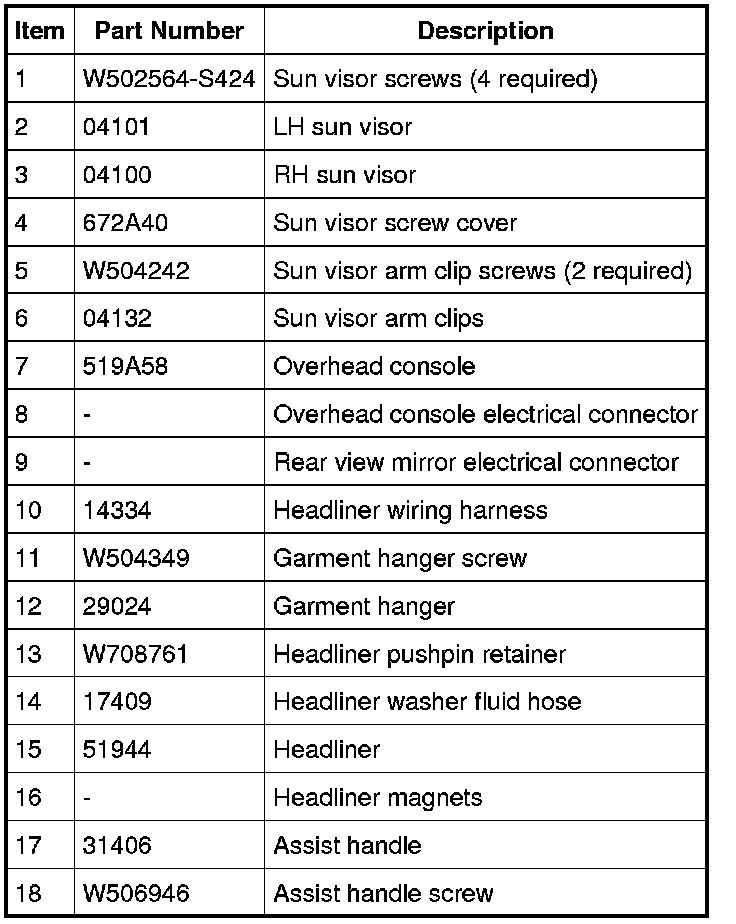

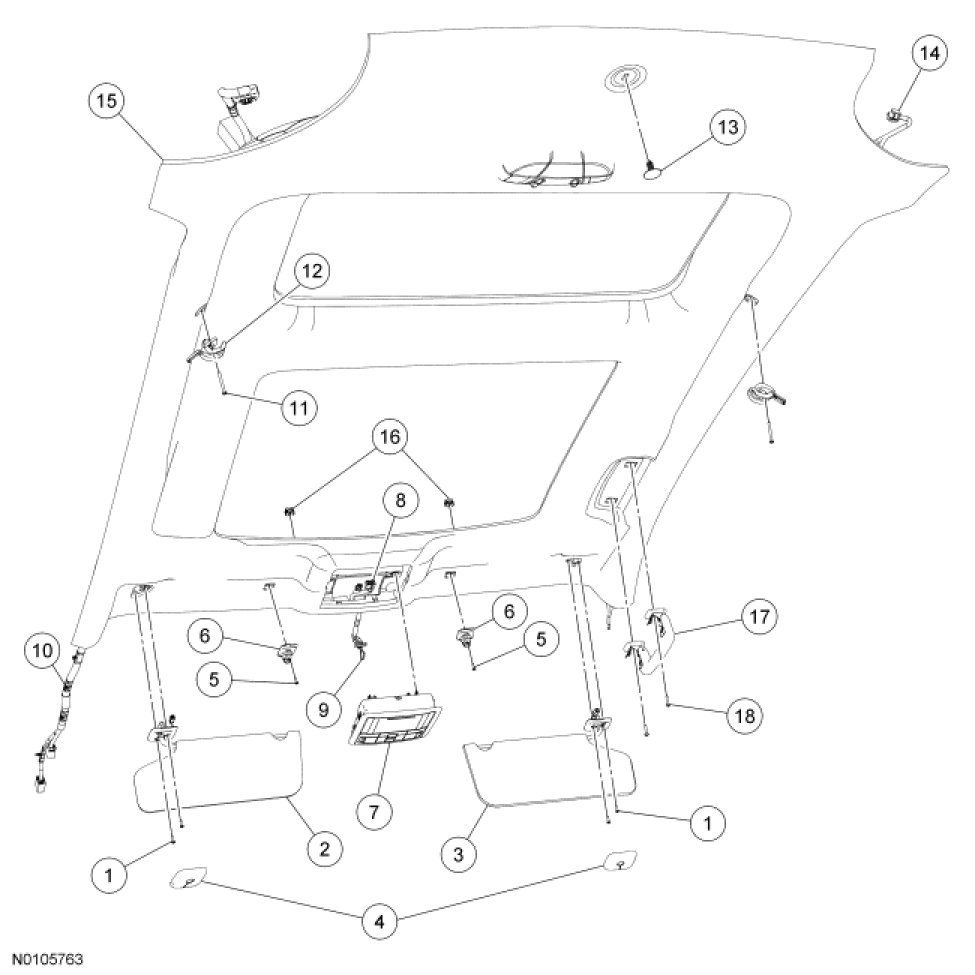

NOTE: Headliner with roof opening panel shown, headliner without roof opening panel similar.










Removal

1. If equipped, remove the Rear Entertainment Module (RETM). For additional information, refer to Accessories and Optional Equipment.

2. Remove the LH and RH A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel.

3. Remove the LH and RH B-pillar trim panels. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel.

4. Remove the LH and RH C-pillar trim panels. For additional information, refer to C-Pillar Trim Panel C-Pillar Trim Panel.

5. Remove the LH and RH D-pillar trim panels. For additional information, refer to D-Pillar Trim Panel D-Pillar Trim Panel.

6. Remove the LH and RH quarter trim panels. For additional information, refer to Quarter Trim Panel .

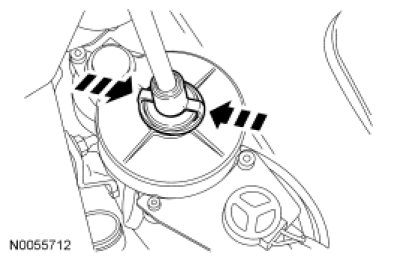

7. If equipped, remove the power liftgate rod from the power liftgate motor assembly.
- Squeeze the clip as shown to release and pull the power liftgate rod assembly upward.





8. If equipped, disconnect the electrical connectors from the interior rear view mirror, compass and microphone.

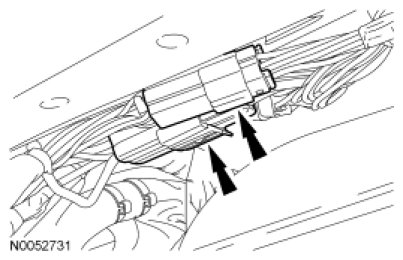

9. Disconnect the electrical connectors from the wiring harness on the LH A-pillar and remove the harness from the A-pillar.





10. Remove the overhead console, if equipped. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

11. Position the front and rear door weatherstrips aside.

12. Remove the LH and RH sun visors.
- Remove the LH and RH sun visor screw cover.

- Remove the LH and RH sun visor screws.

- If equipped, disconnect the electrical connector.

13. Remove the assist handle.
- Remove the assist handle screws.

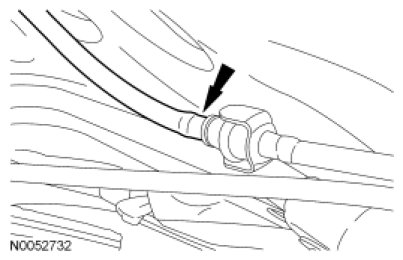

14. Disconnect the rear washer fluid hose connector on the RH A-pillar.





15. Remove the LH and RH garment hangers.
- Remove the LH and RH garment hanger screws.

16. Position the liftgate weatherstrip aside.

17. Disconnect the rear washer fluid hose connector on the RH D-pillar.





18. Remove the headliner rear pushpin.

19. Lower the headliner and disconnect the electrical connectors on the LH D-pillar.





20. NOTICE: To avoid damaging the headliner, an assistant is required for this step.

Remove the headliner through the liftgate opening.

Installation

Installing a new headliner

1. NOTE: Obtain the 3M(TM) Duramix 4747 Super Fast Adhesive commercially. The 3M(TM) Duramix 4747 Super Fast Adhesive is a 2-part adhesive in a 50 ml dual-tube applicator. Depending on the size of the headliner and optional wire harness(es), the purchase of two to five 50 ml tubes is suggested.

When installing a new headliner, transfer the wire harness in the following sequence:

1. Using suitable tape, mark the wire at the exit points for proper length from headliner-to-body/roof connectors.

2. Carefully remove the wire harness from the original headliner.

3. Using a suitable marking tool, mark the new headliner with the routing and exit points of the wire harness from the original headliner.

4. NOTICE: Make sure not to damage the wire harness when cutting the excess adhesive from the wire harness.

Cut and remove any excess adhesive from the wire harness.

5. Position the wire harness onto the new headliner and check that the harness has enough length to be connected to the body/roof connectors using the tape indicator that was applied in Step 1. Apply tape to temporarily hold the wire harness in that position on the headliner.

6. NOTE: The 3M(TM) Duramix 4747 Super Fast Adhesive will set in 20 seconds. Continually make sure that the wire harness is routed correctly when applying the adhesive.

Apply the 3M(TM) Duramix 4747 Super Fast Adhesive in the same location as the factory installed adhesive along the full length of the wire harness-to-headliner to avoid any NVH concern(s).

7. Transfer all necessary components.

All headliners

2. NOTICE: To avoid damaging the headliner, an assistant is required for this step.

Install the headliner through the liftgate opening.

3. Connect the electrical connectors on the LH D-pillar.





4. Install the headliner rear pushpin.

5. Connect the rear washer fluid hose connector on the RH D-pillar.





6. Install the liftgate weatherstrip.

7. Install the LH and RH garment hangers.
- Install and tighten the LH and RH garment hanger screws.

8. Install the assist handle.
- Install the assist handle screws.

9. Connect the rear washer fluid hose connector on the RH A-pillar.





10. Install the LH and RH sun visors in the following sequence.

1. If equipped, connect the electrical connector.

2. Install and tighten the LH and RH sun visor screws.

11. Install the front and rear door weatherstrips.

12. If equipped, install the overhead console. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

13. Connect the electrical connectors on the LH A-pillar and attach the wire harness onto the A-pillar.





14. If equipped, connect the electrical connectors to the interior rear view mirror, compass and microphone.

15. If equipped, install the power liftgate rod.

16. Install the LH and RH quarter trim panels. For additional information, refer to Quarter Trim Panel .

17. Install the LH and RH D-pillar trim panels. For additional information, refer to D-Pillar Trim Panel D-Pillar Trim Panel.

18. Install the LH and RH C-pillar trim panels. For additional information, refer to C-Pillar Trim Panel C-Pillar Trim Panel.

19. Install the LH and RH B-pillar trim panels. For additional information, refer to B-Pillar Trim Panel B-Pillar Trim Panel.

20. Install the LH and RH A-pillar trim panels. For additional information, refer to A-Pillar Trim Panel A-Pillar Trim Panel.

21. If equipped, install the RETM. For additional information, refer to Accessories and Optional Equipment.
