Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford Truck
>>
2012
>>
Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Blower Motor
>>

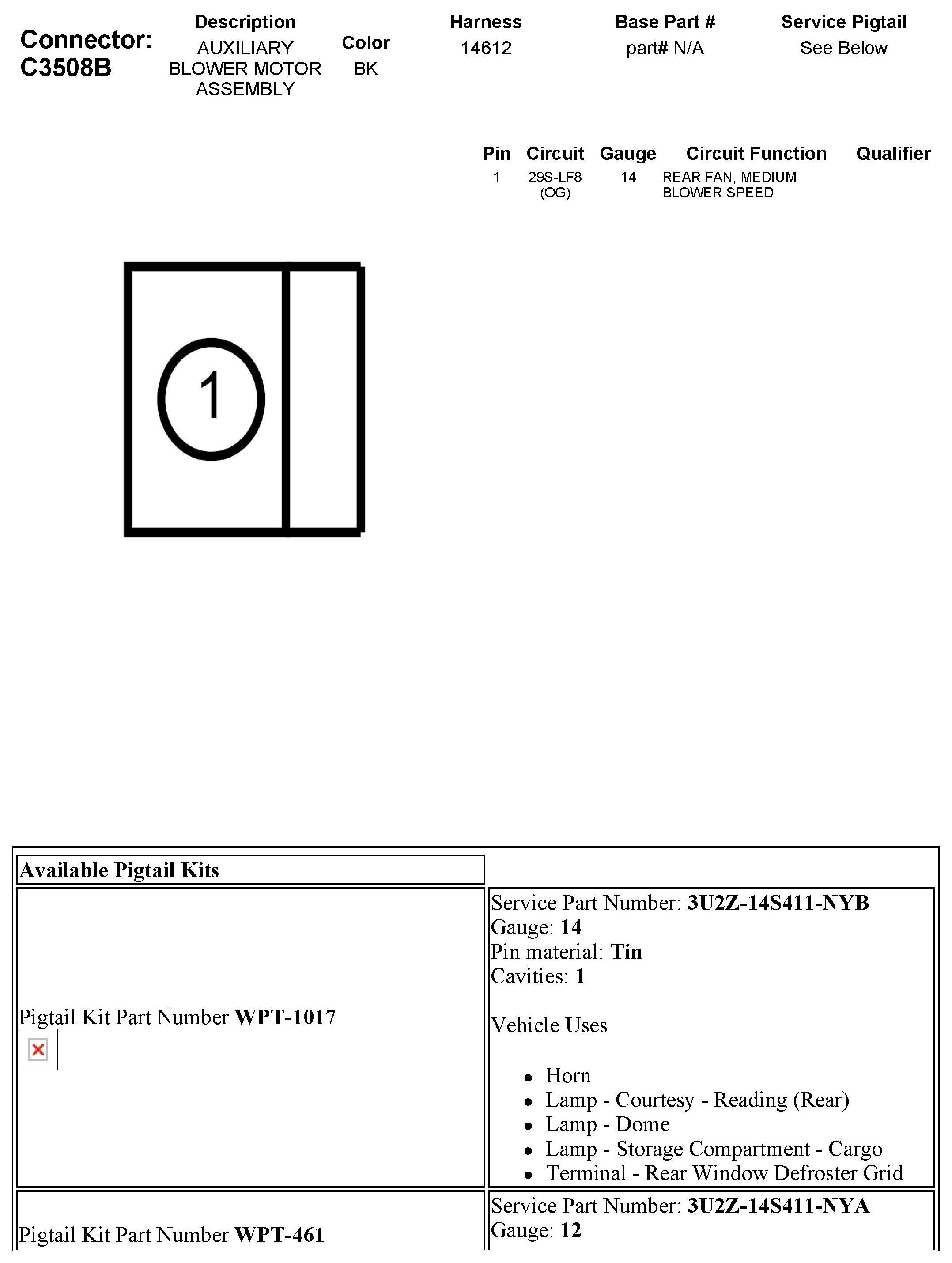

C3508B Auxiliary Blower Motor Assembly
C3508B Auxiliary Blower Motor Assembly
