Ford
>>
1983
>>
LTD V6-232 3.8L VIN 3 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Window Switch
Power Window Switch

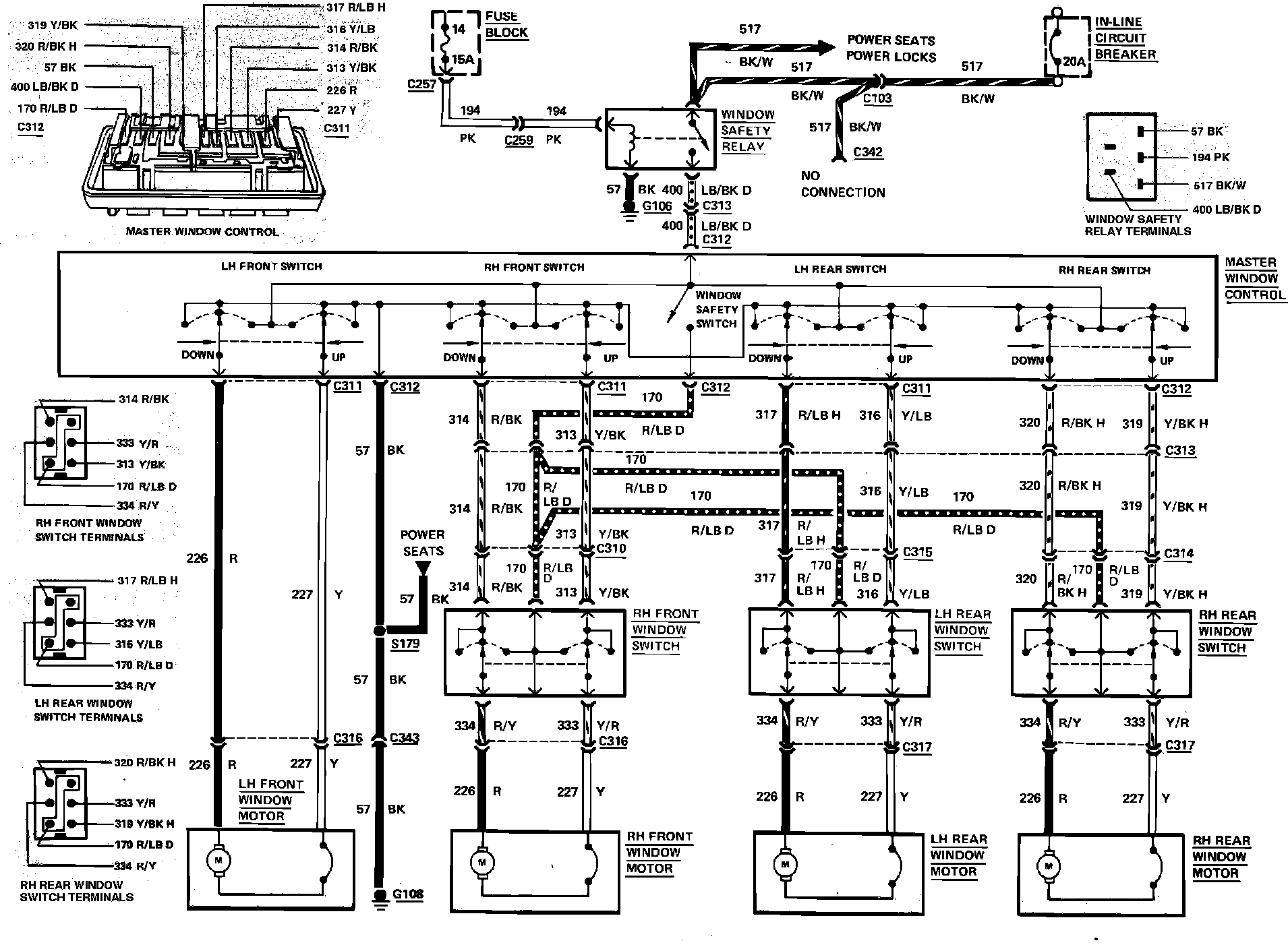

Fig. 64 Power Window Wiring Circuit. 1983 LTD & Marquis:
