Power Trunk / Liftgate Lock Switch

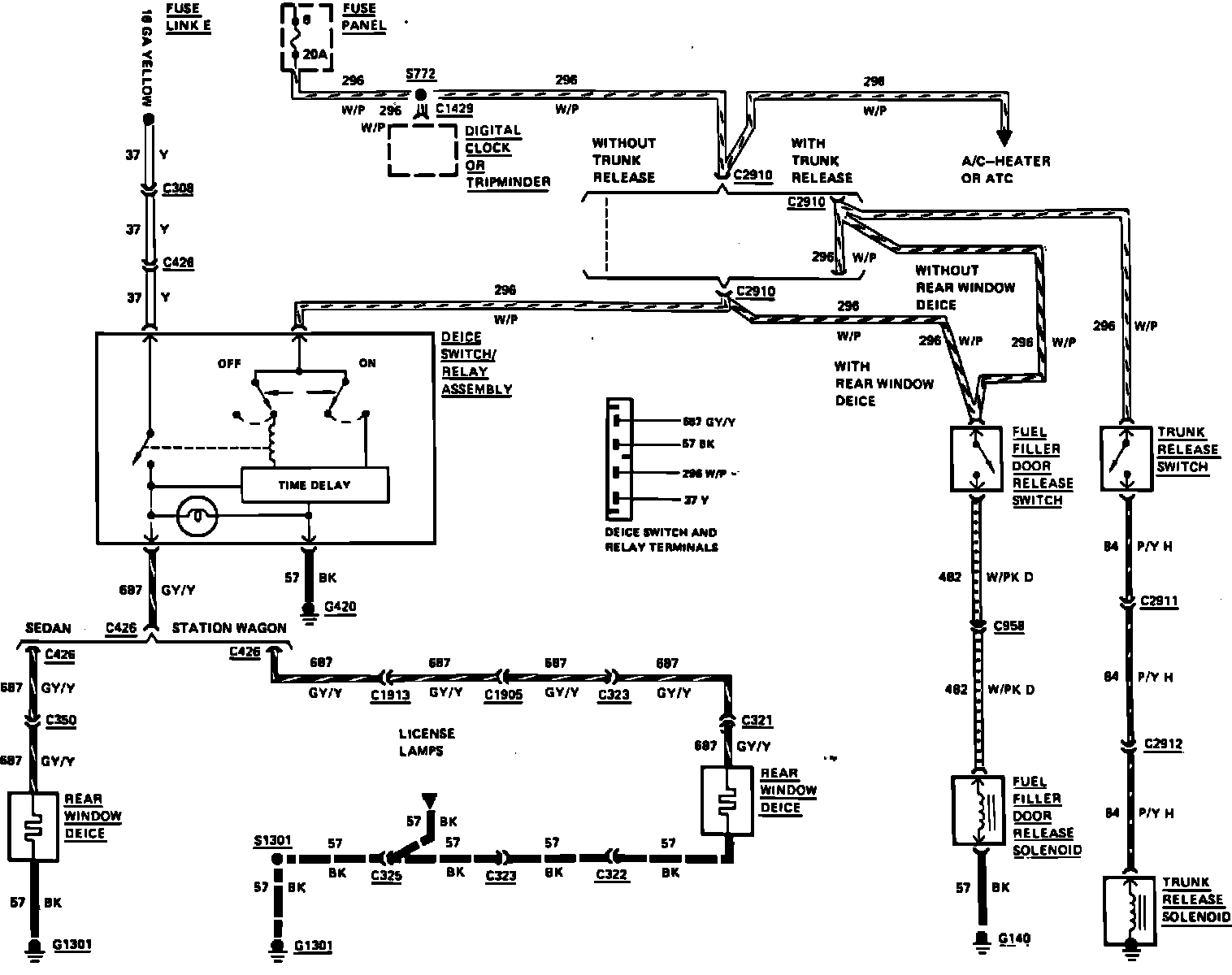

Fig. 62 Rear De-Ice, Trunk Release & Fuel Filler Door Release Wiring Circuit. 1983 Crown Victoria & Grand Marquis:
