Engine Control Module

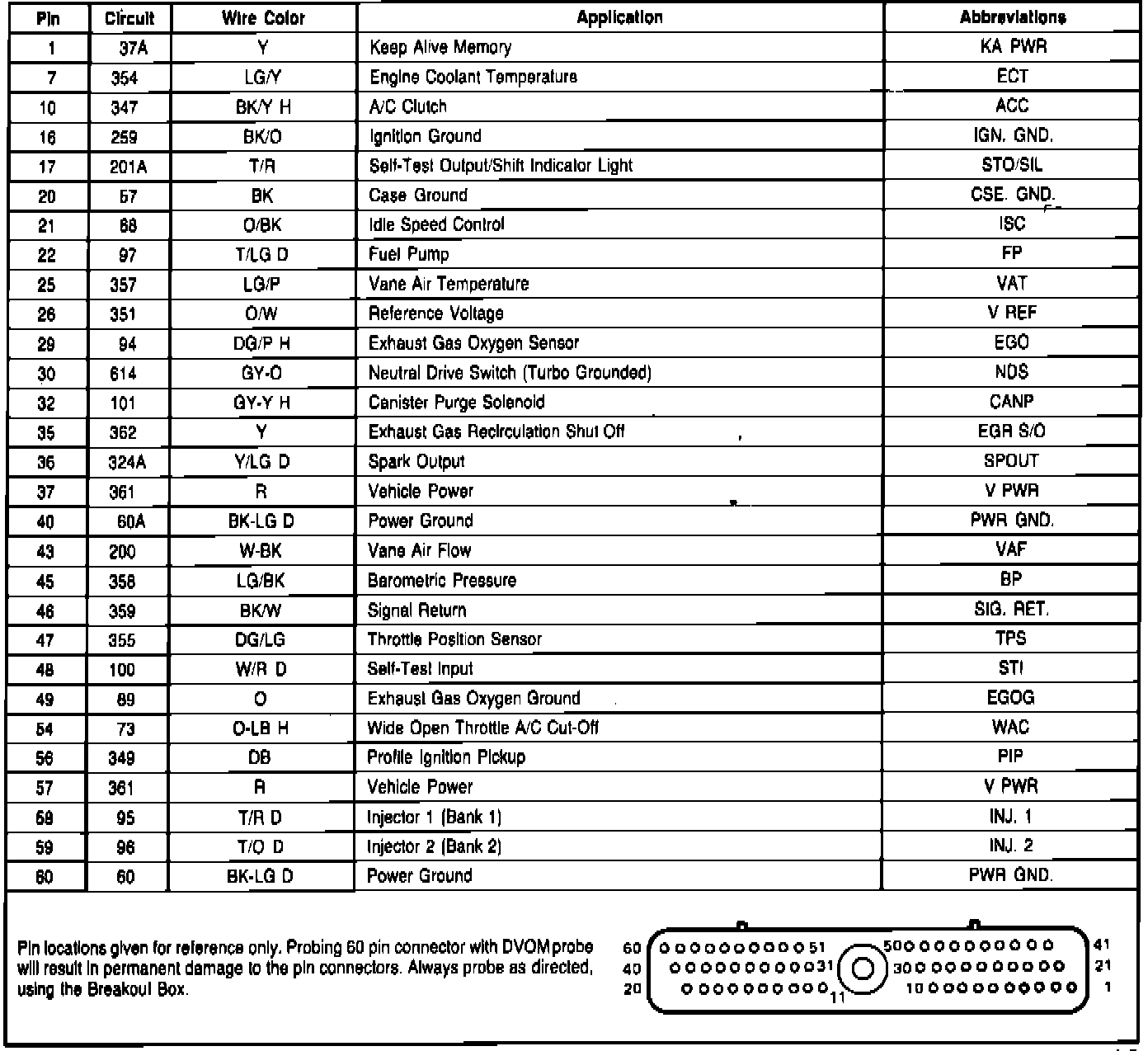

Fig. 154 EEC-IV module connector pin usage. 1985 4-97.6 EFI & turbocharged engine:
