System Diagram

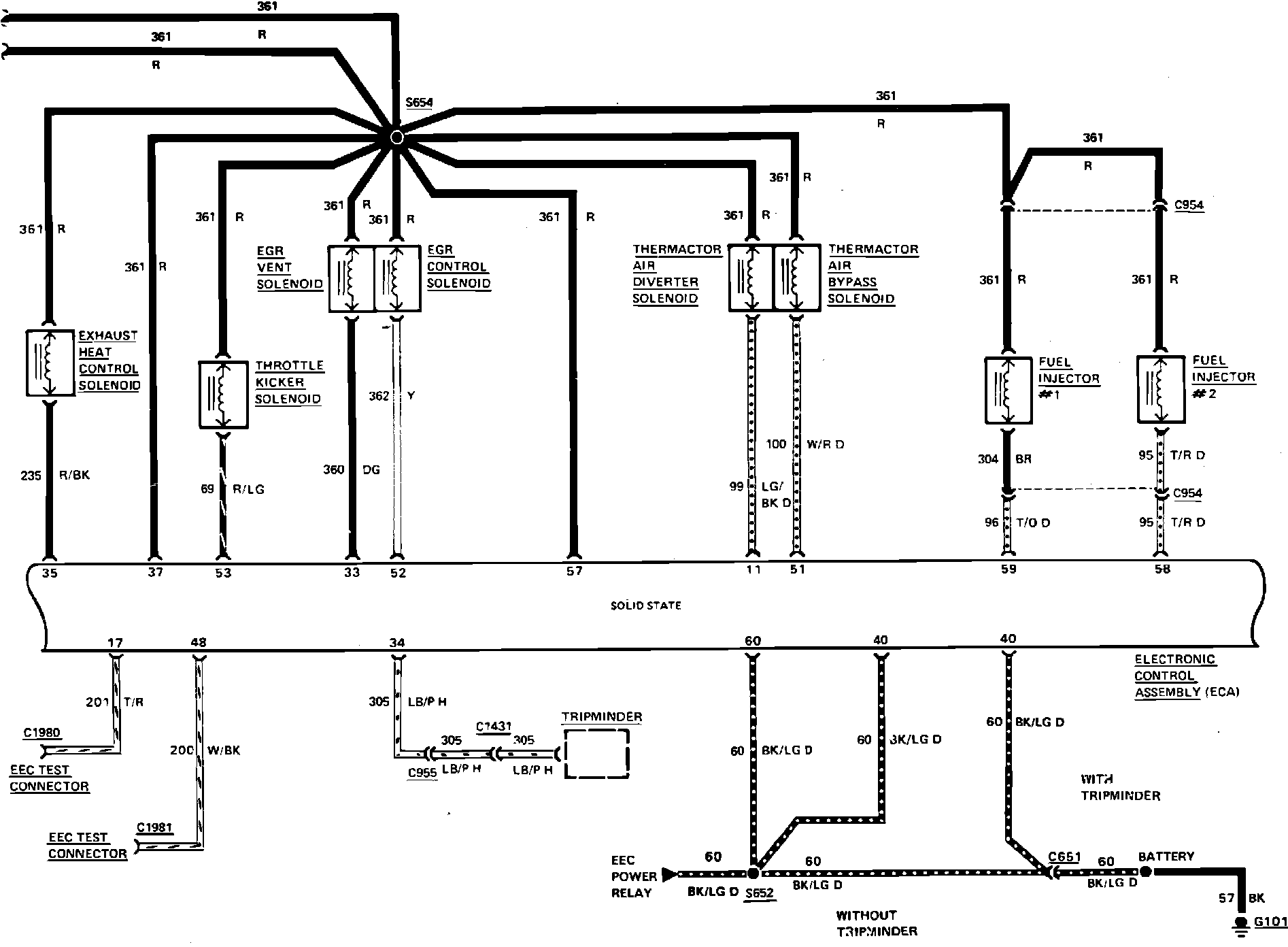

Fig. 16 Electronic Engine Control Wiring Circuit (Part 1 of 3). 1985:

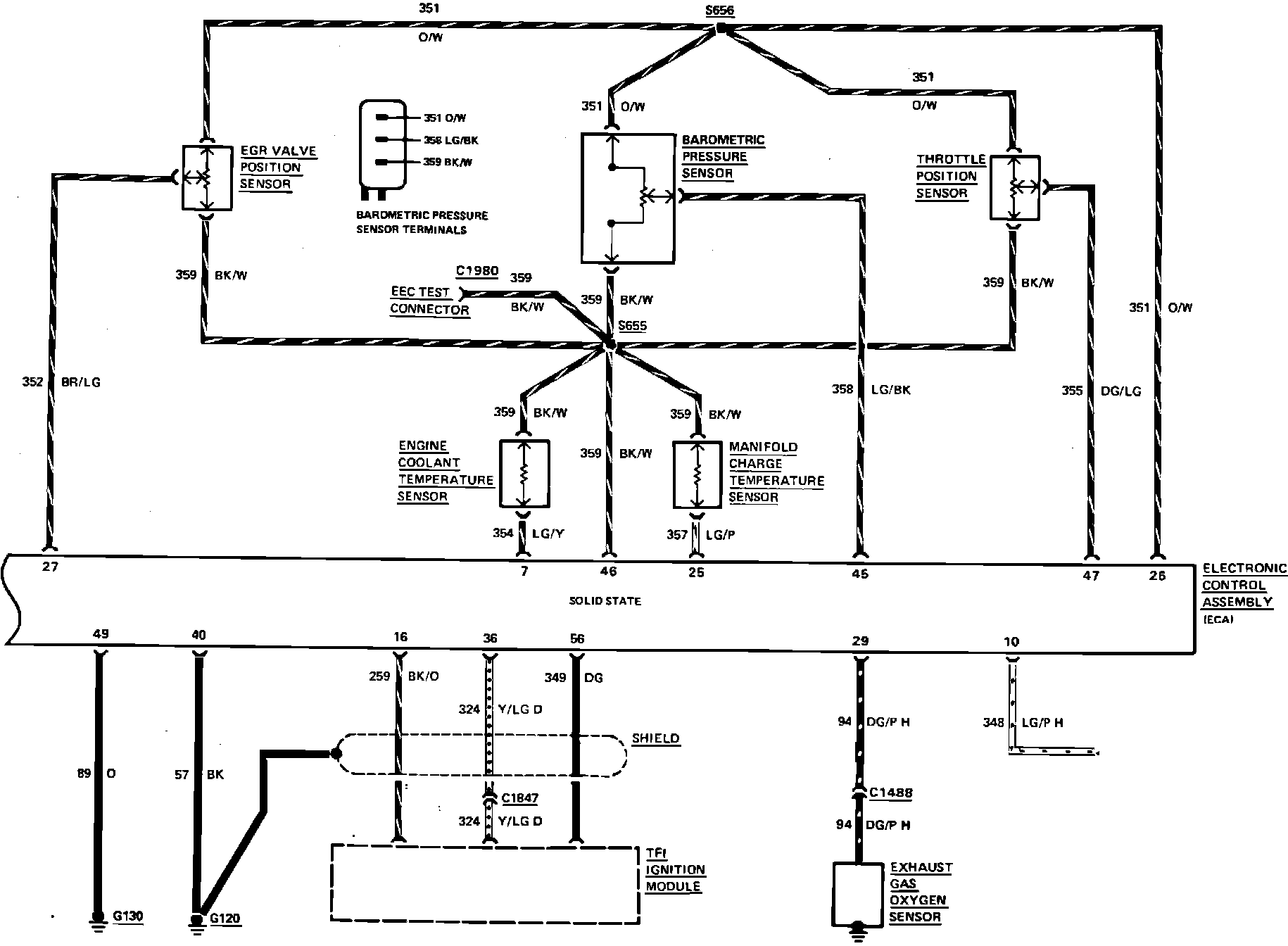

Fig. 16 Electronic Engine Control Wiring Circuit (Part 2 of 3). 1985:

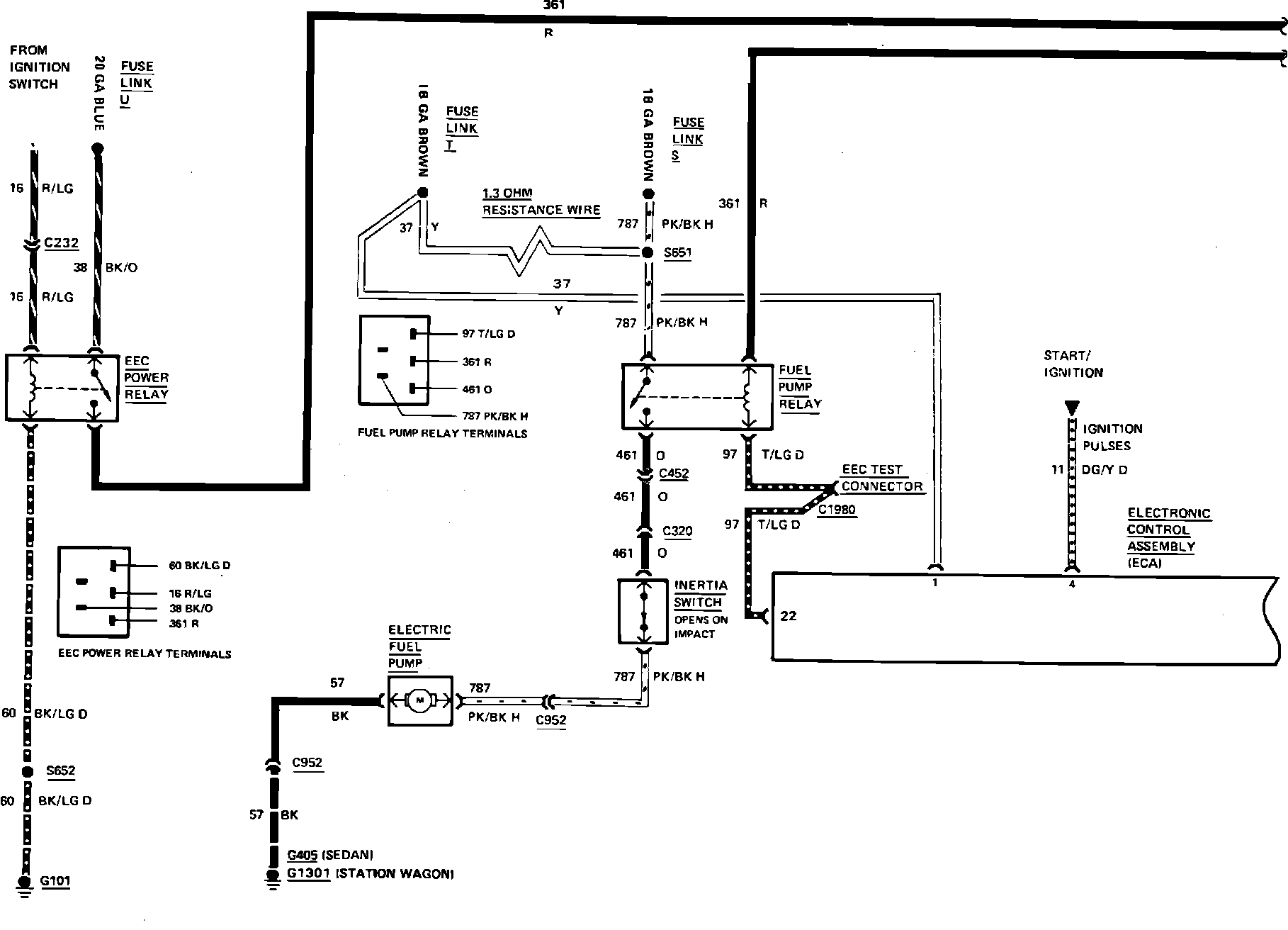

Fig. 16 Electronic Engine Control Wiring Circuit (Part 3 of 3). 1985:
