Home >> Ford >> 1987 >> EXP L4-116 1.9L VIN J FI HP >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> System Diagram

System Diagram

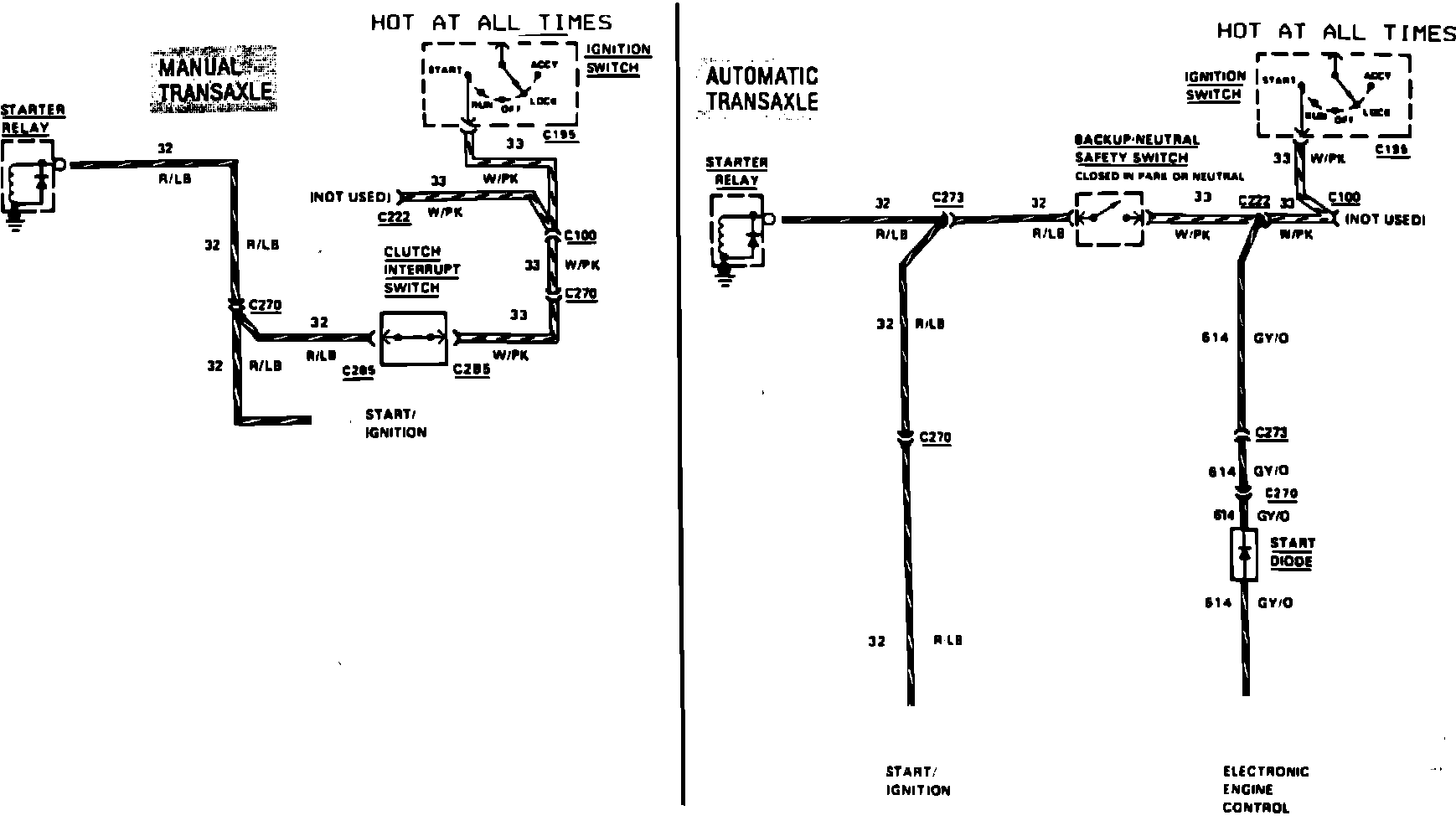

Fig. 52 Starting System Wiring Circuit. Gasoline Engine W/CFI:



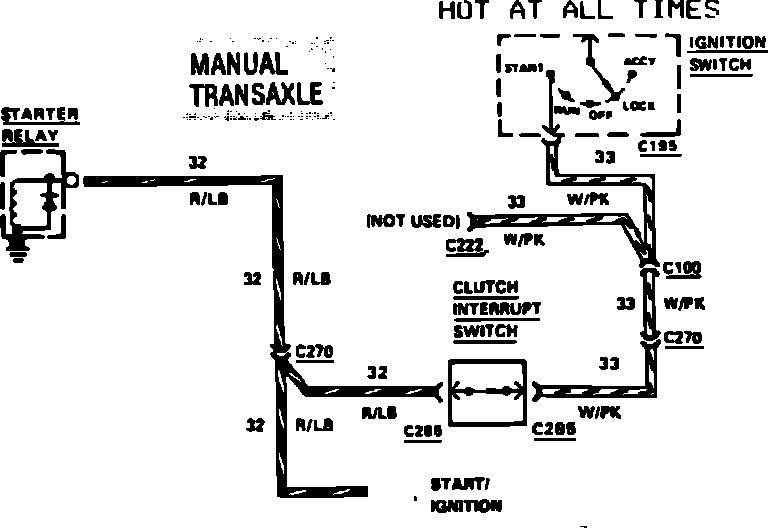

Fig. 53 Starting System Wiring Circuit. Gasoline Engine W/EFI:
