Blower Motor Resistor: Locations

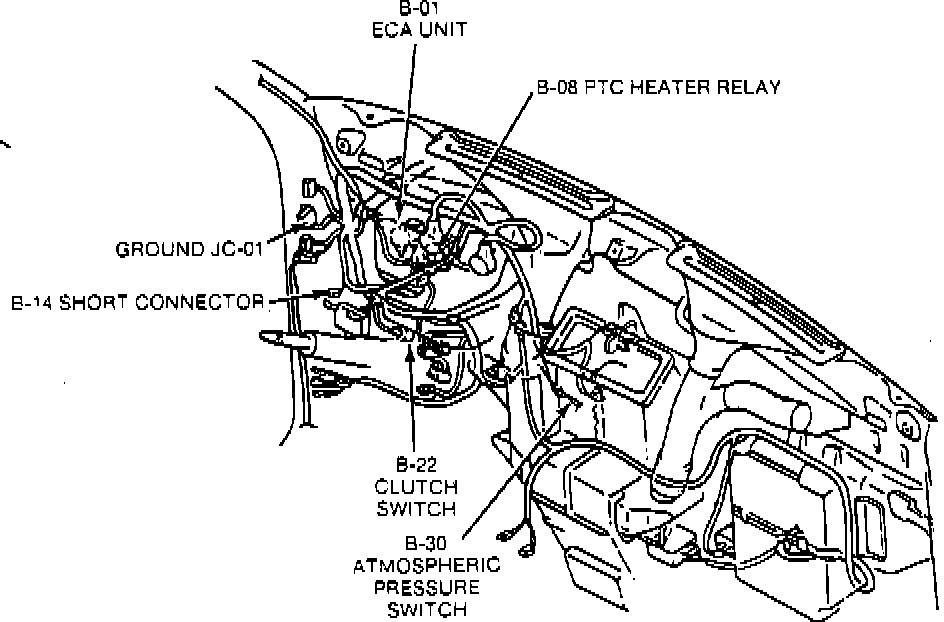

Instrument Panel, Component & Connector Location (Part 1 Of 9):

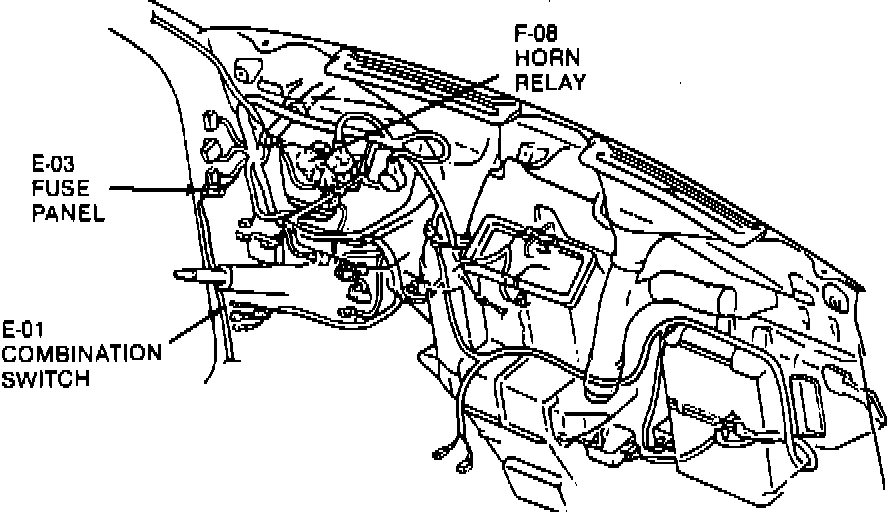

Instrument Panel, Component & Connector Location (Part 1 Of 9):

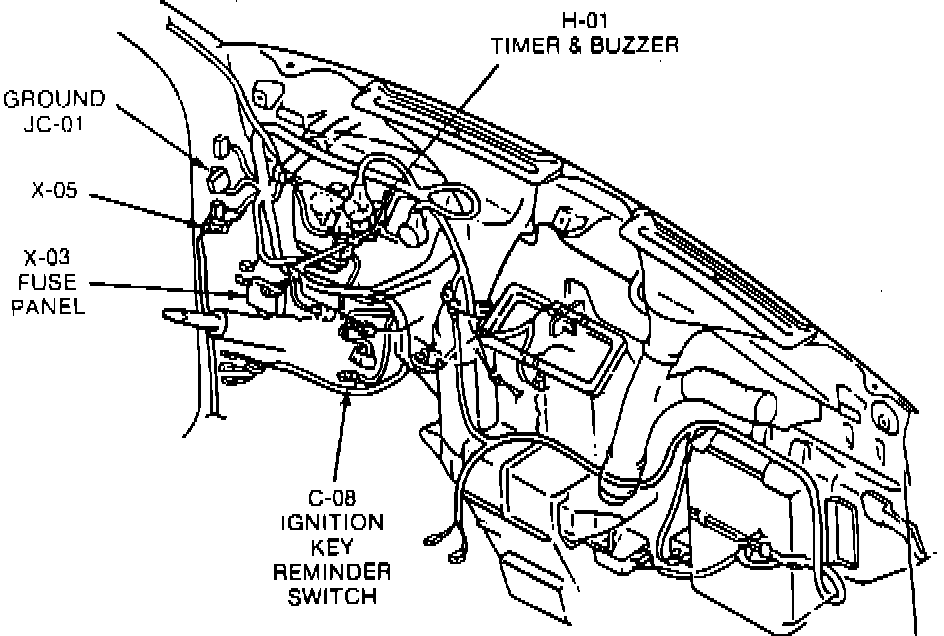

Instrument Panel, Component & Connector Location (Part 1 Of 9):

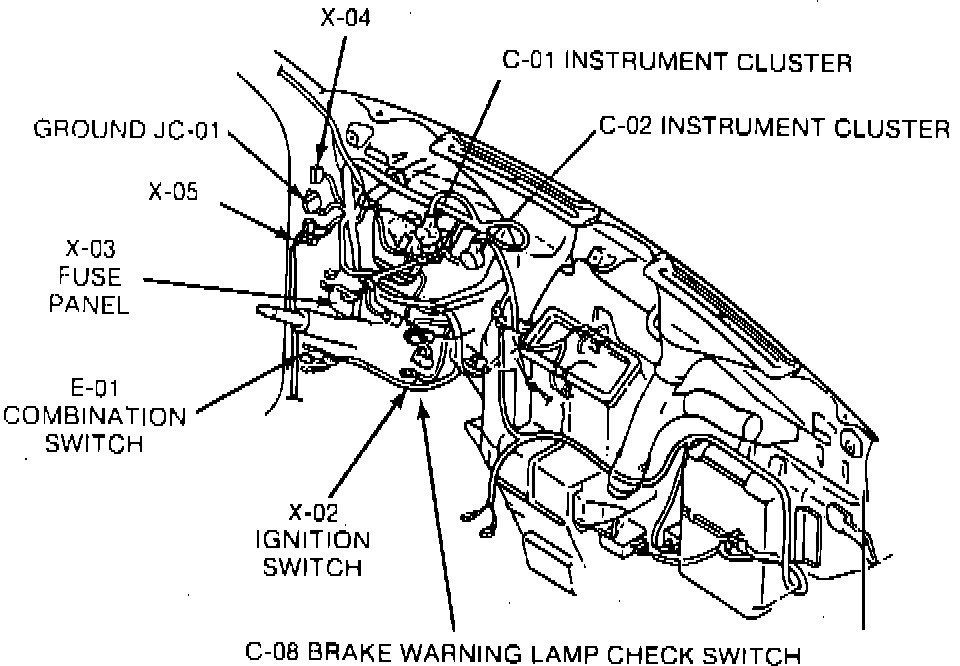

Instrument Panel, Component & Connector Location (Part 1 Of 9):

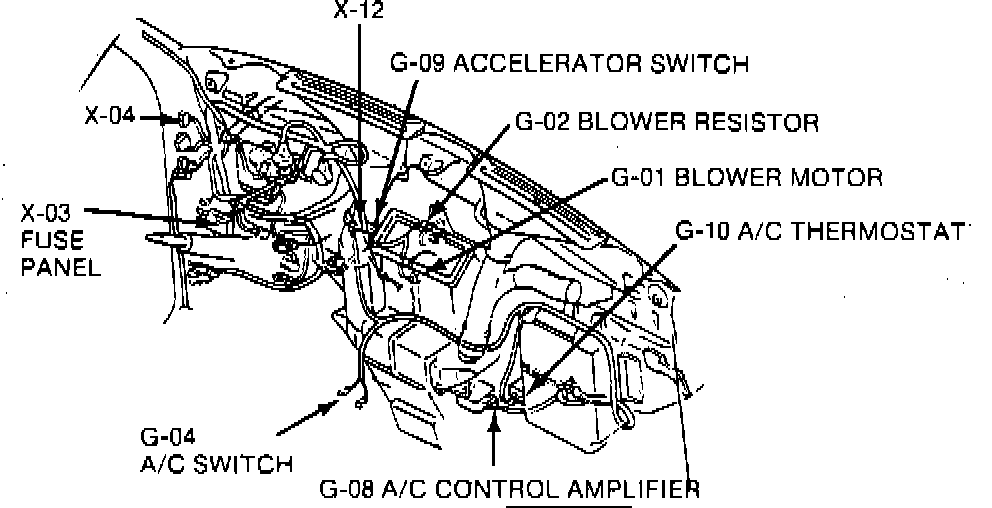

Instrument Panel, Component & Connector Location (Part 1 Of 9):

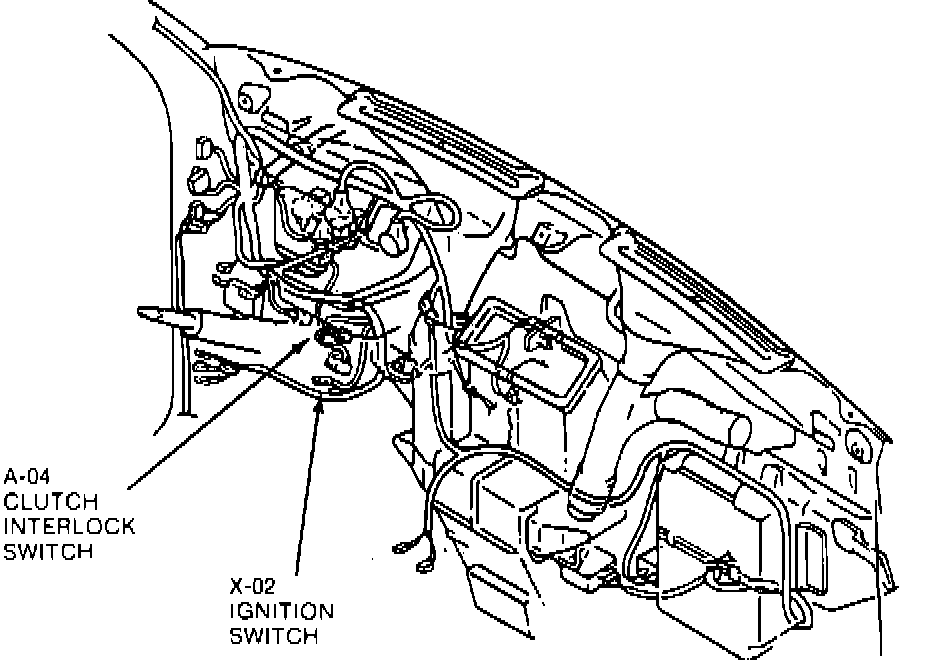

Instrument Panel, Component & Connector Location (Part 1 Of 9):

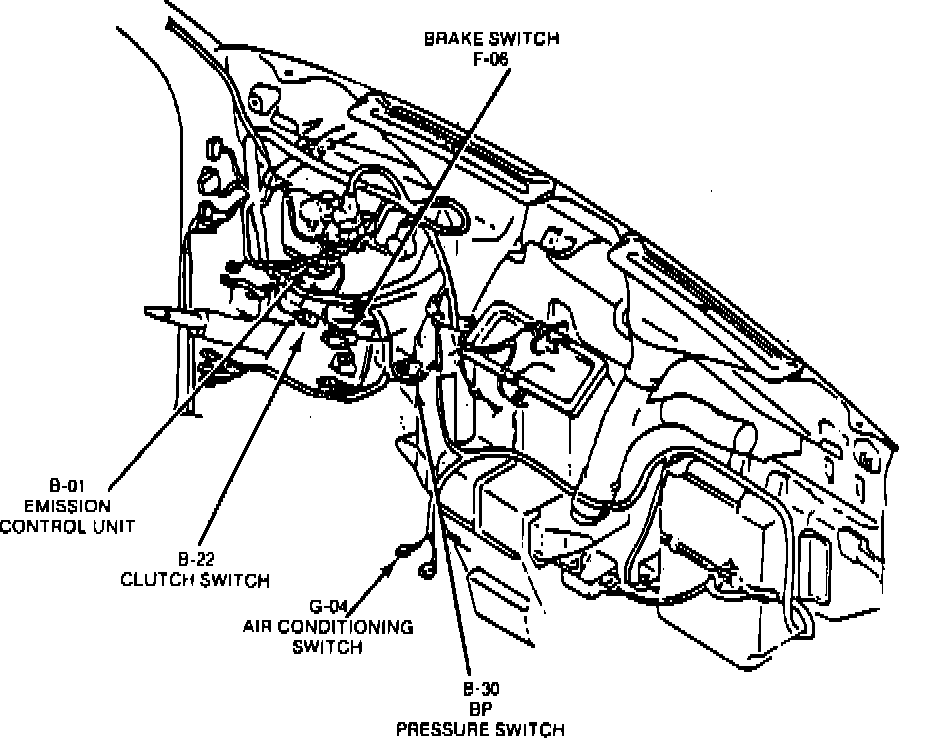

Instrument Panel, Component & Connector Location (Part 1 Of 9):




Instrument Panel, Component & Connector Location (Part 1 Of 9):




Attached To Blower Motor
