Operation CHARM
: Car repair manuals for everyone.
Home
>>
Ford
>>
1988
>>
Festiva L4-81 1.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests
>>
R - SML Line Check
>>
R - Wiring Diagram
R - Wiring Diagram

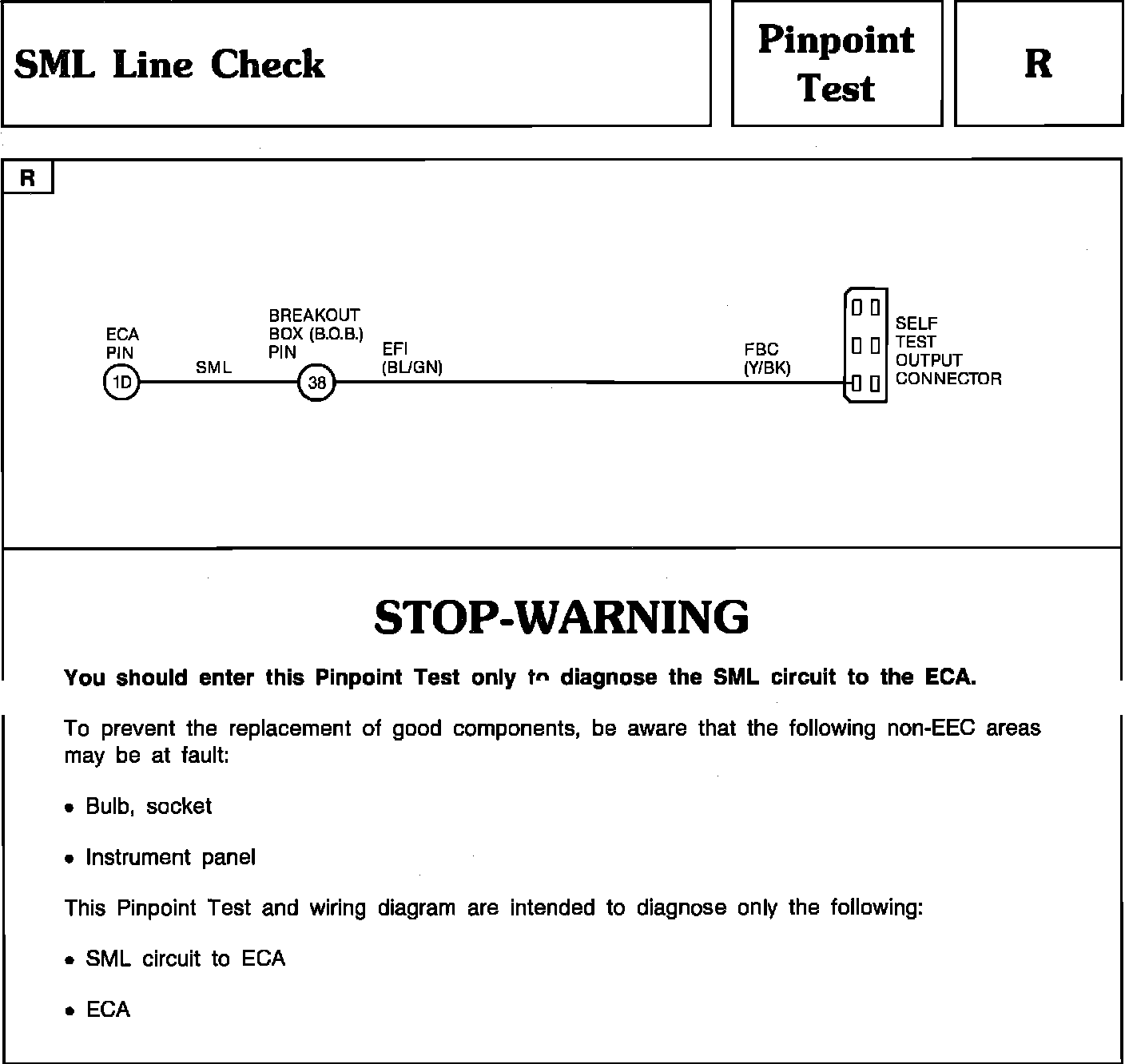

Pinpoint Test R - SML Line Check:
