SEC 2 Reed Valve Check
SEC 2 Reed Valve Check

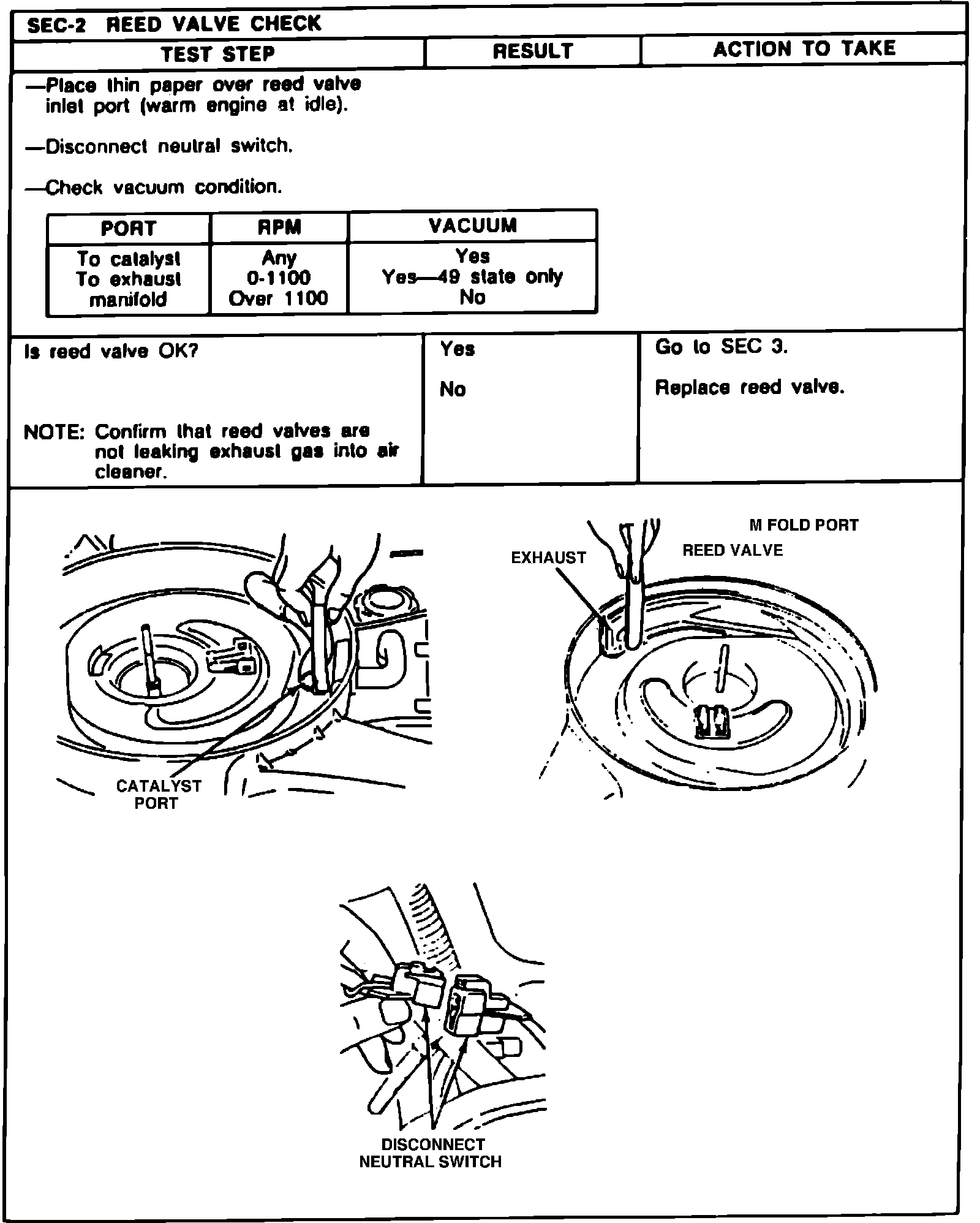

Fig. 5 Secondary air injection system diagnosis (Part 2 of 6):
