DEC-7 Manifold Absolute Pressure (MAP) Sensor Function

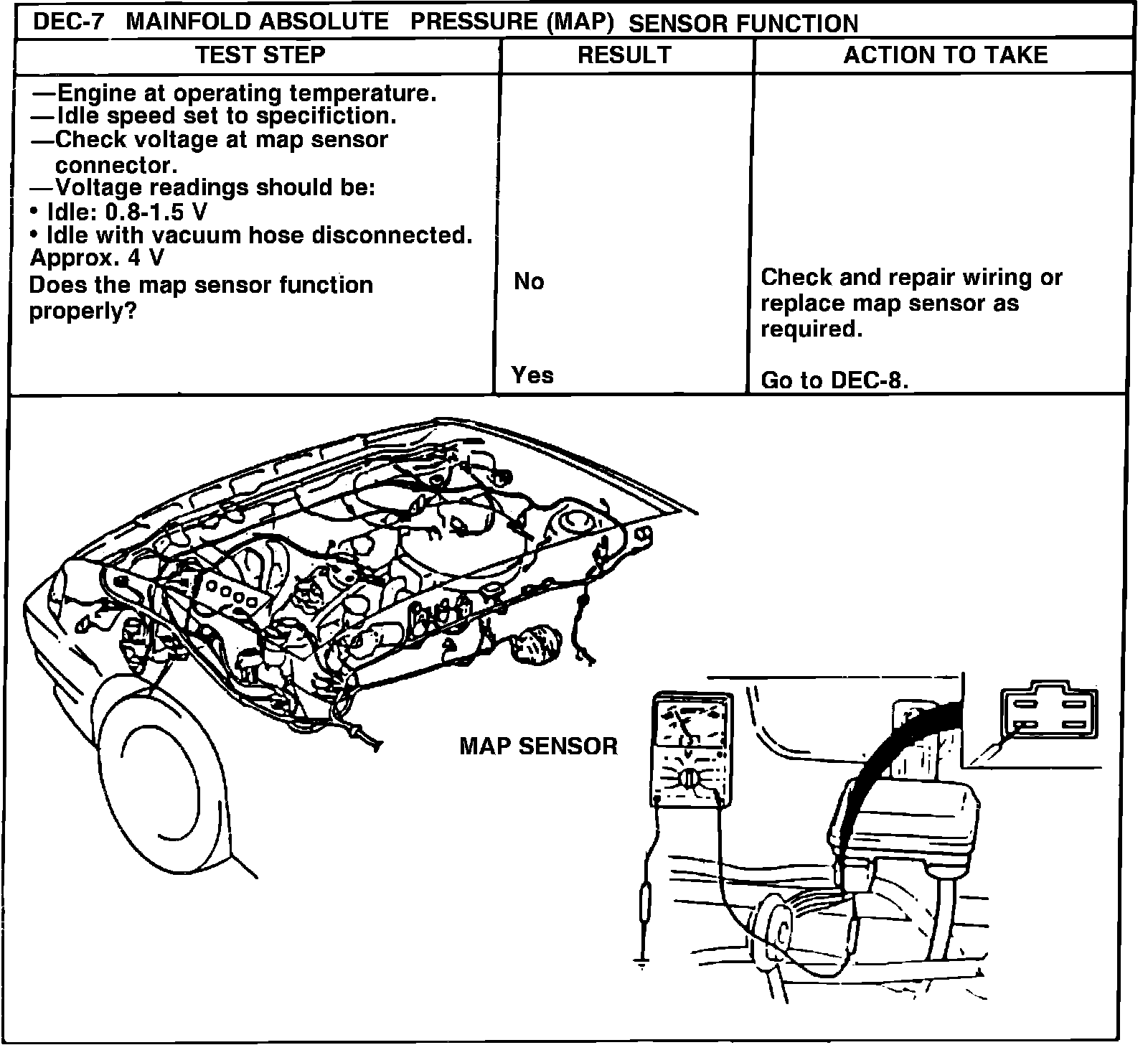

Fig. 8 Deceleration control system diagnosis (Part 7 of 9):
