Home >> Ford >> 1988 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Deceleration Valve >> Testing and Inspection >> DEC-8 Barometric Pressure (BP) Switch Function

DEC-8 Barometric Pressure (BP) Switch Function

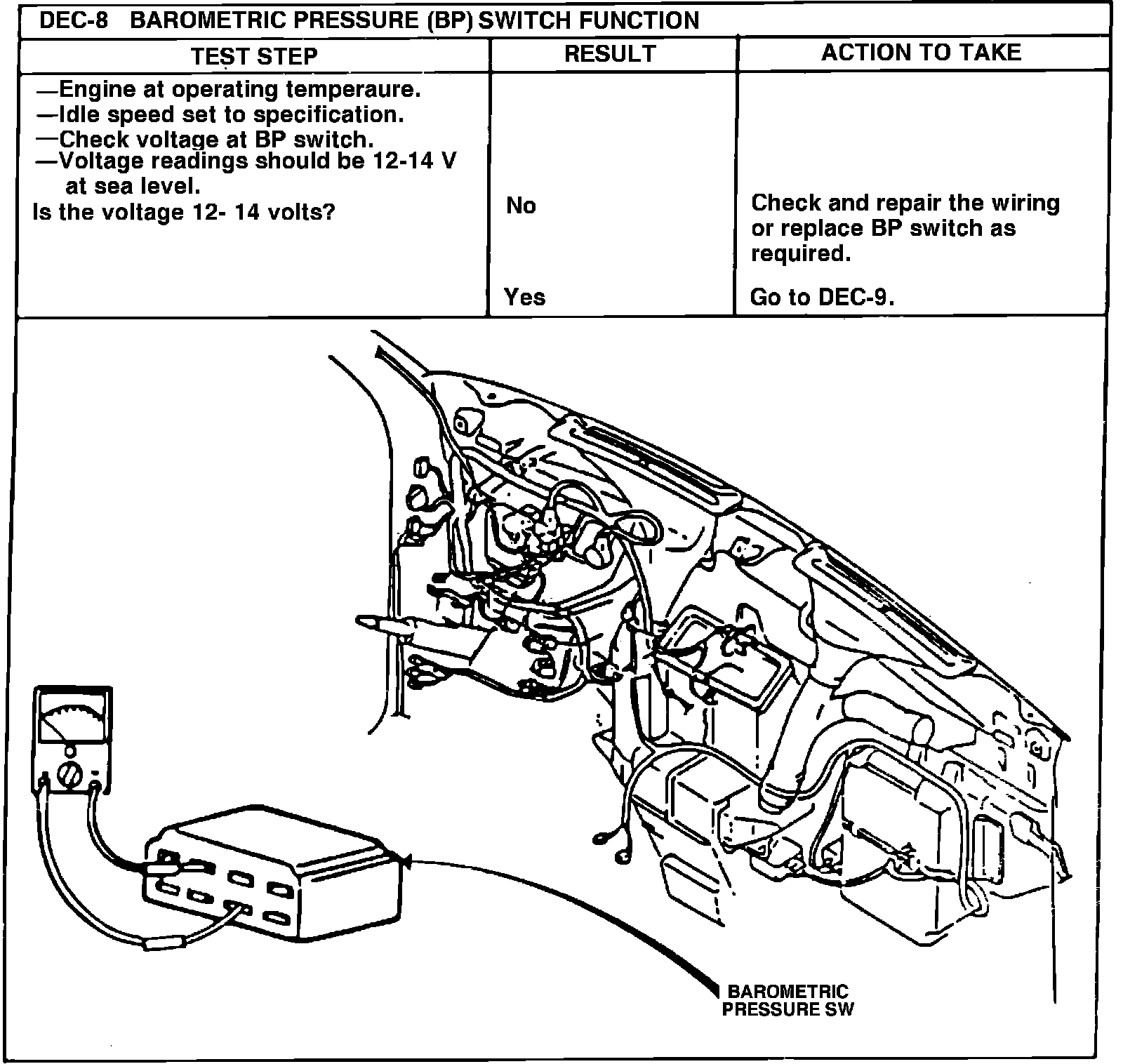

Fig. 8 Deceleration control system diagnosis (Part 8 of 9):
