EV 10 Rollover Check Valve Function

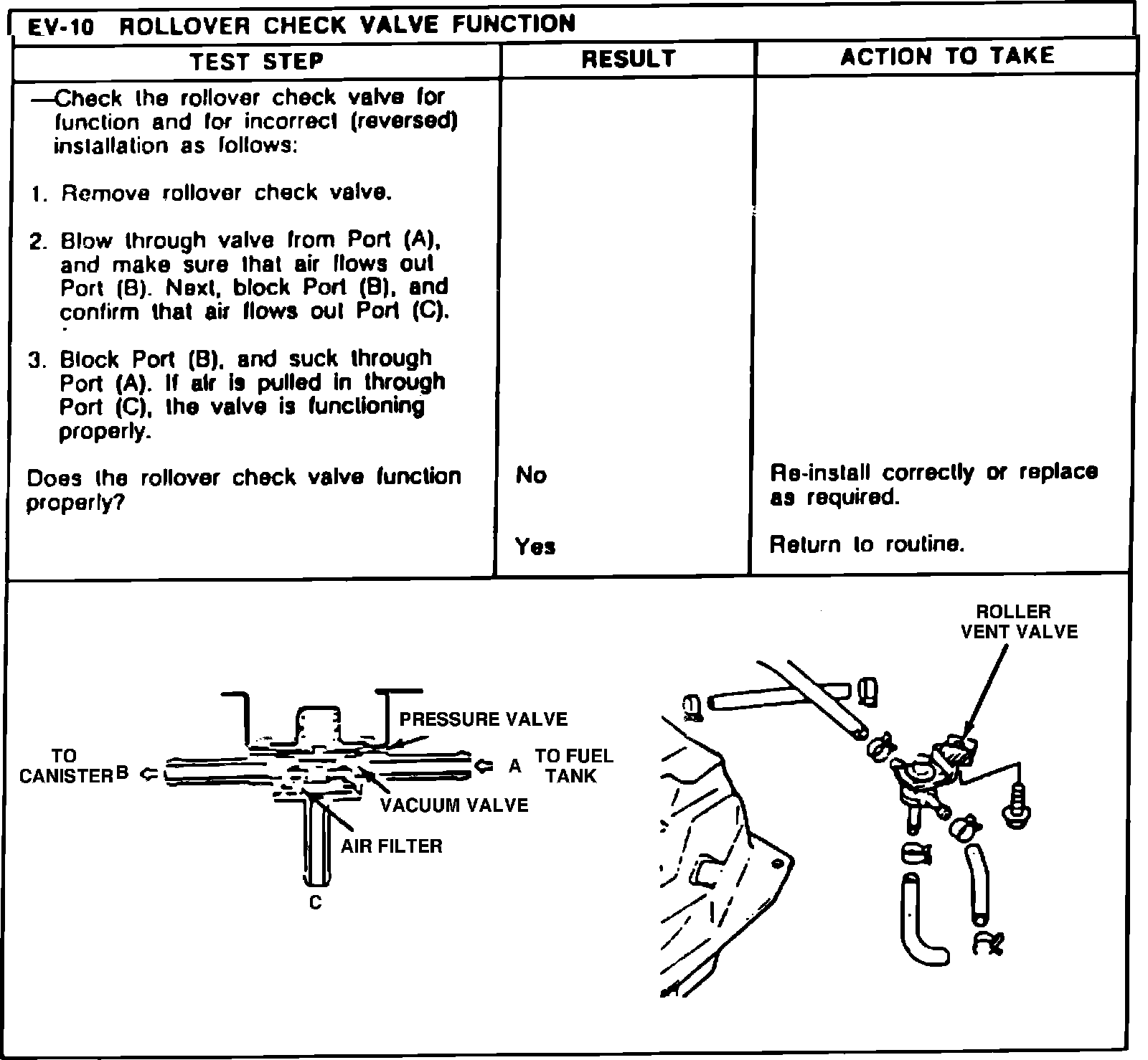

Fig. 2 Evaporative emission control system diagnosis (Part 10 of 10):
