EV 5 Purge Control Valve Function

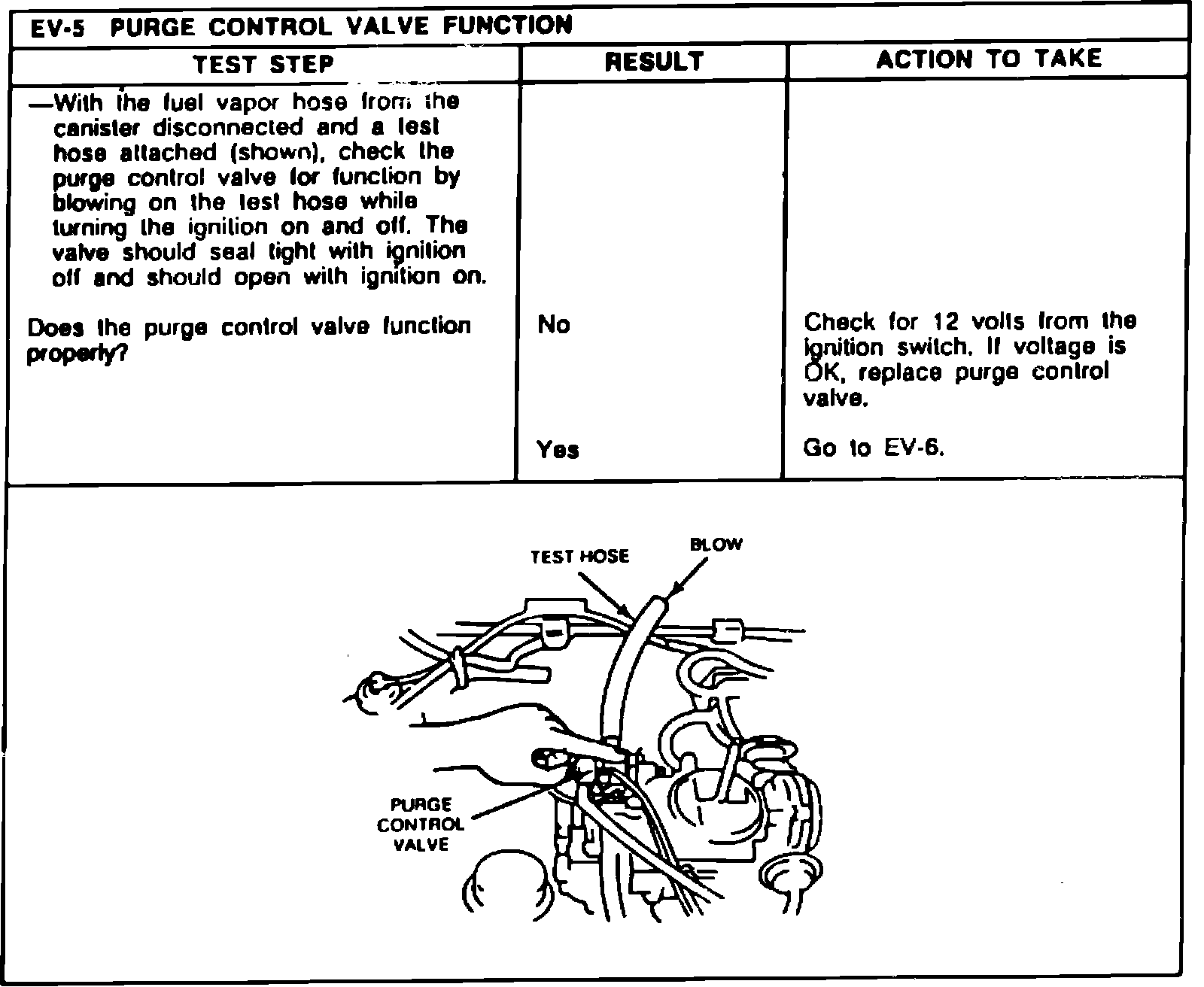

Fig. 2 Evaporative emission control system diagnosis (Part 5 of 10):
