EV 6 Vacuum Switch Valve Function

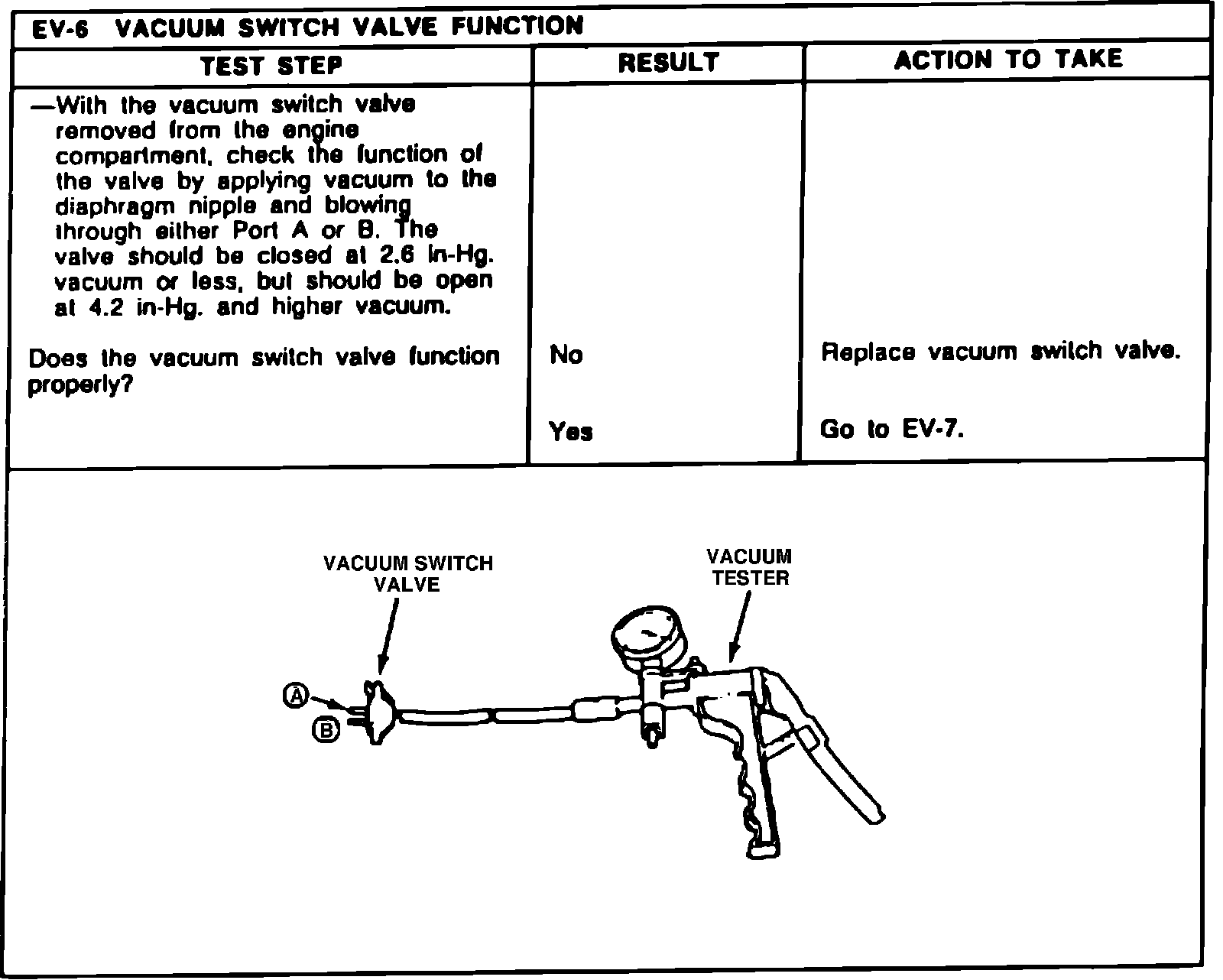

Fig. 2 Evaporative emission control system diagnosis (Part 6 of 10):
