EGR 1- System Inspection
EGR 1- System Inspection

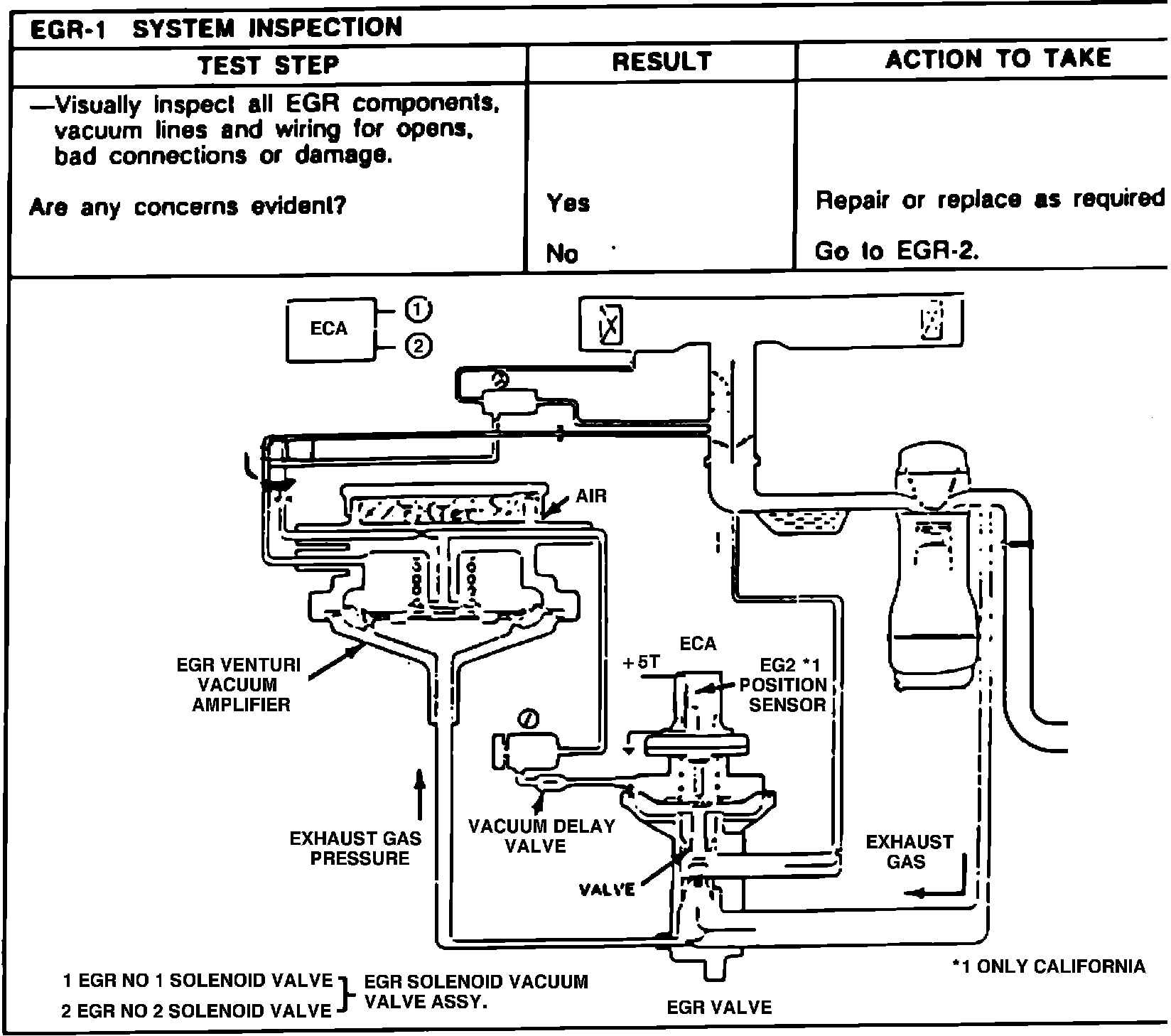

l��(Fig. 6 Exhaust Gas Recirculation (EGR) system diagnosis (Part 1 of 11):
