Home >> Ford >> 1988 >> Festiva L4-81 1.3L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Positive Crankcase Ventilation >> Testing and Inspection >> PCV 1 - Visual Inspection

PCV 1 - Visual Inspection

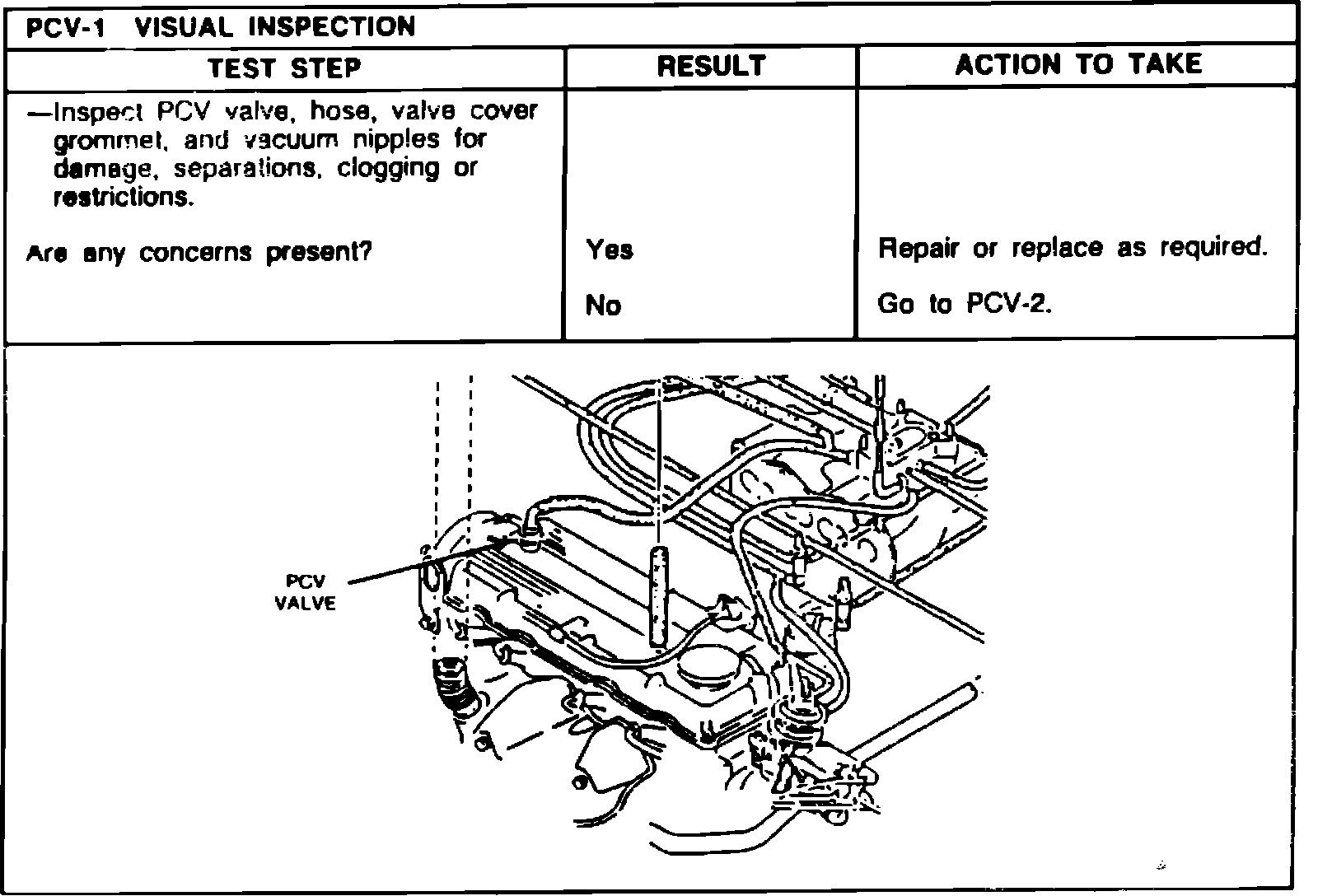

Fig. 3 Positive Crankcase Ventilation (PCV) system diagnosis (Part 1 Of 3):
